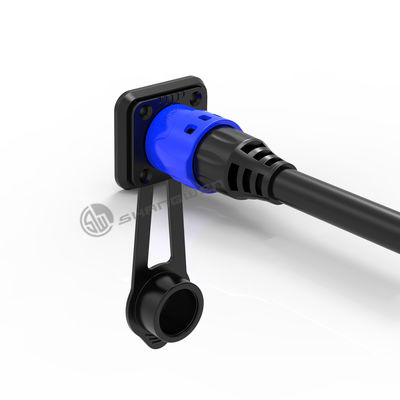

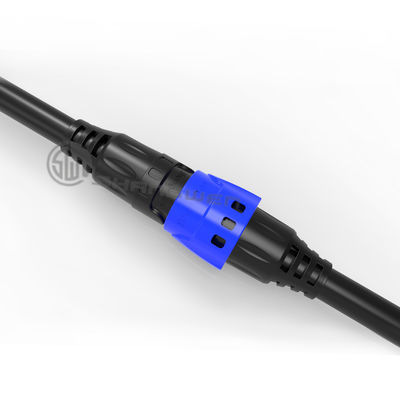

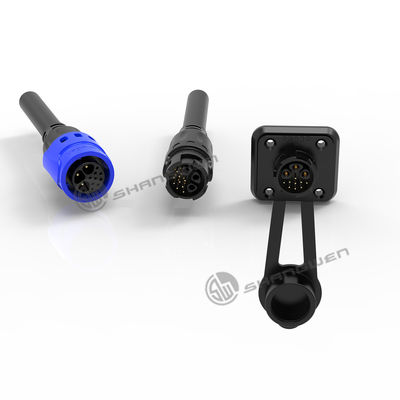

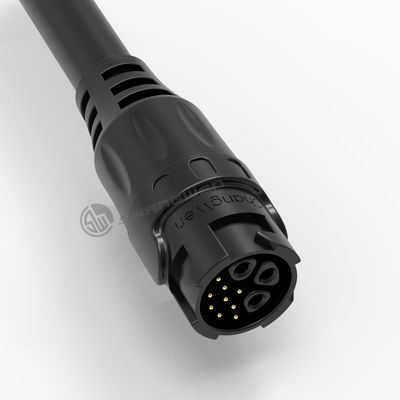

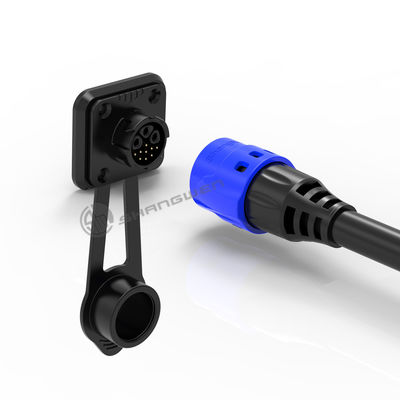

M19 Connector 3 Holes 9 Pin Male Connector Plug Signal power integrated
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Push-pull Self-locking Connection | Name | Small M19 Connector |
|---|---|---|---|
| Application | Industrial | Gender | Male |
| Industrial Electronics | Accessories | Type | SW19 Self-locking Series |
| Multiple Cores | 2,3,4,5,6,9,3+9 Pin Support | ||
| Highlight | Small M19 Connector,M19 Connector Multiple,9 Pin Male Connector Plug |
||
Product Description
Environmental M19 Male Plug 3 Holes 9 Pin Industrial Connector With CE FCC
Model : SW19-12JSFT (3+9 pin male plug)
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Protection level: used in outdoor scenes, protection level up to IP67
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Multi-style inner core design to meet the needs of various industries
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can
1. Electrical parameters
|
Contacts NO.
|
3+9 pin
|
|
Rated current
|
5A
|
|
Rated voltage
|
60V AC
|
|
Withstand voltage
|
125V
|
|
Insulation resistance
|
≥100mΩ
|
|
Contact resistance
|
≤10mΩ
|
2. Mechanical parameters
|
Service life
|
＞1000 times
|
|
Power line
|
Φ4.5mm-Φ11mm
|
|
Cable size
|
0.3mm²-2.5mm²(22AWG-12AWG)
|
|
Type of terminals
|
Screw terminal and soldering terminal available
|
3. Material and environmental parameters
|
Shell&insulated parts
|
High performance engineering plastics
|
|
Contacts
|
Copper alloy
|
|
Contact diameter
|
Φ1.0mm
|
|
Protection degree
|
IP67
|
|
Flame-retardant grade
|
UL94-V0
|
|
Temperature range
|
-40℃~105℃
|
4. Size reference (unit /mm)
5. Operating reference
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
