Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW19-9JSZ
Minimum Order Quantity 2 pieces
Price $2.20/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Push-pull Self-locking Connection Name 9 Pin Waterproof Connector
Type SW19 Self-locking Series Gender Male Socket
Industrial Electronics Accessories Multiple Cores 2,3,4,5,6,9,3+9 Pin Support
Application Industrial
Highlight

Industrial 9 Pin Waterproof Connector

,

9 Pin Waterproof Connector Male

,

IP67 Connector

Leave a Message
Product Description



Factory Sales 9 Pin Male Socket Connector Industrial Ip67 Waterproof Connector



Products Description

1. IP67 M19 connector 2-pin plug fusion cable.
2. You can connect male to female. You can also use 1m or other length of wire to customize the extension cable (one side is a female waterproof plug; the other is a female waterproof plug).
3. Can provide colors and materials, and terminal processing.
4. Professional R & D team can help customize the project.
5. Can provide you with customized solutions.


SW19 Self-locking series-9 Pin connector

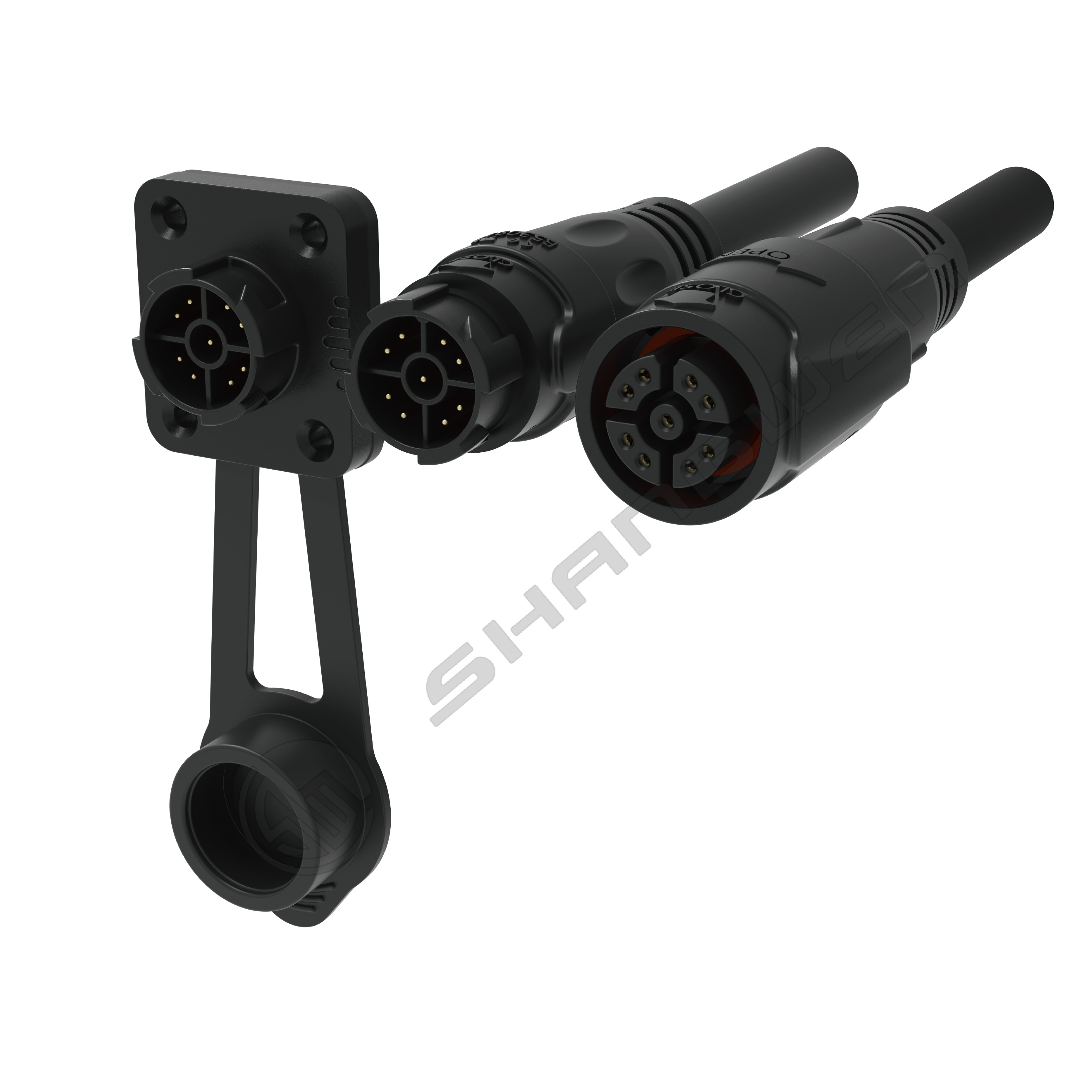

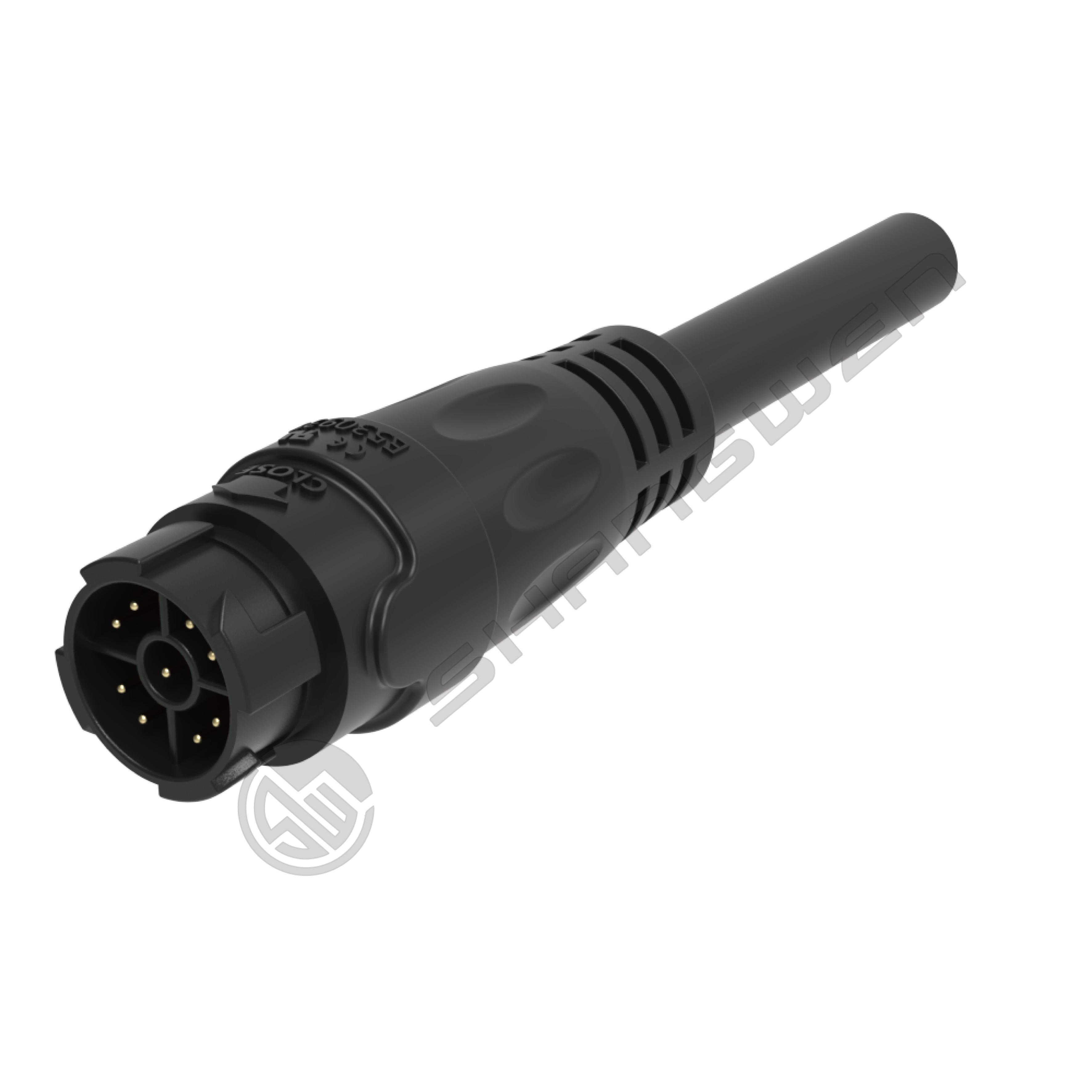

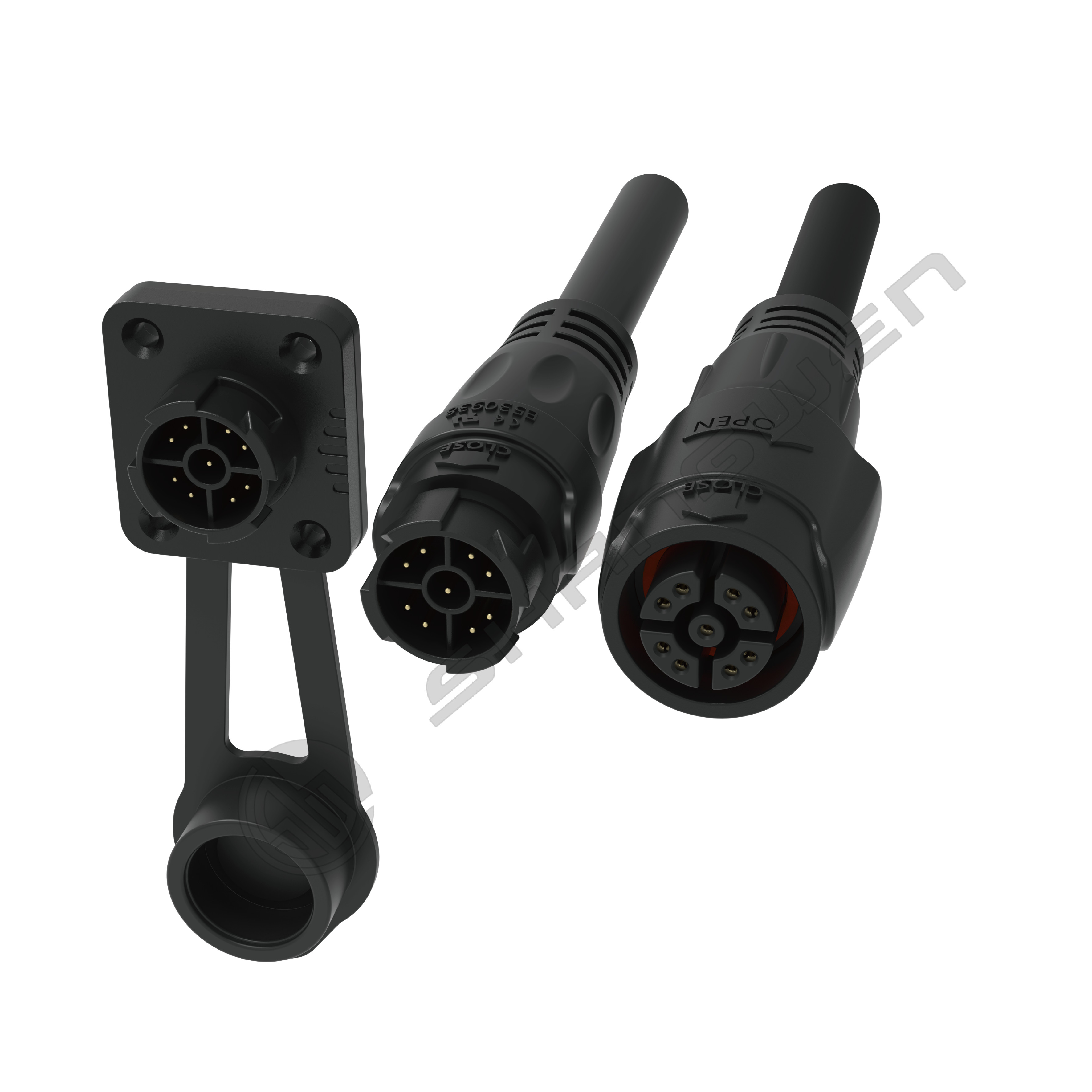

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

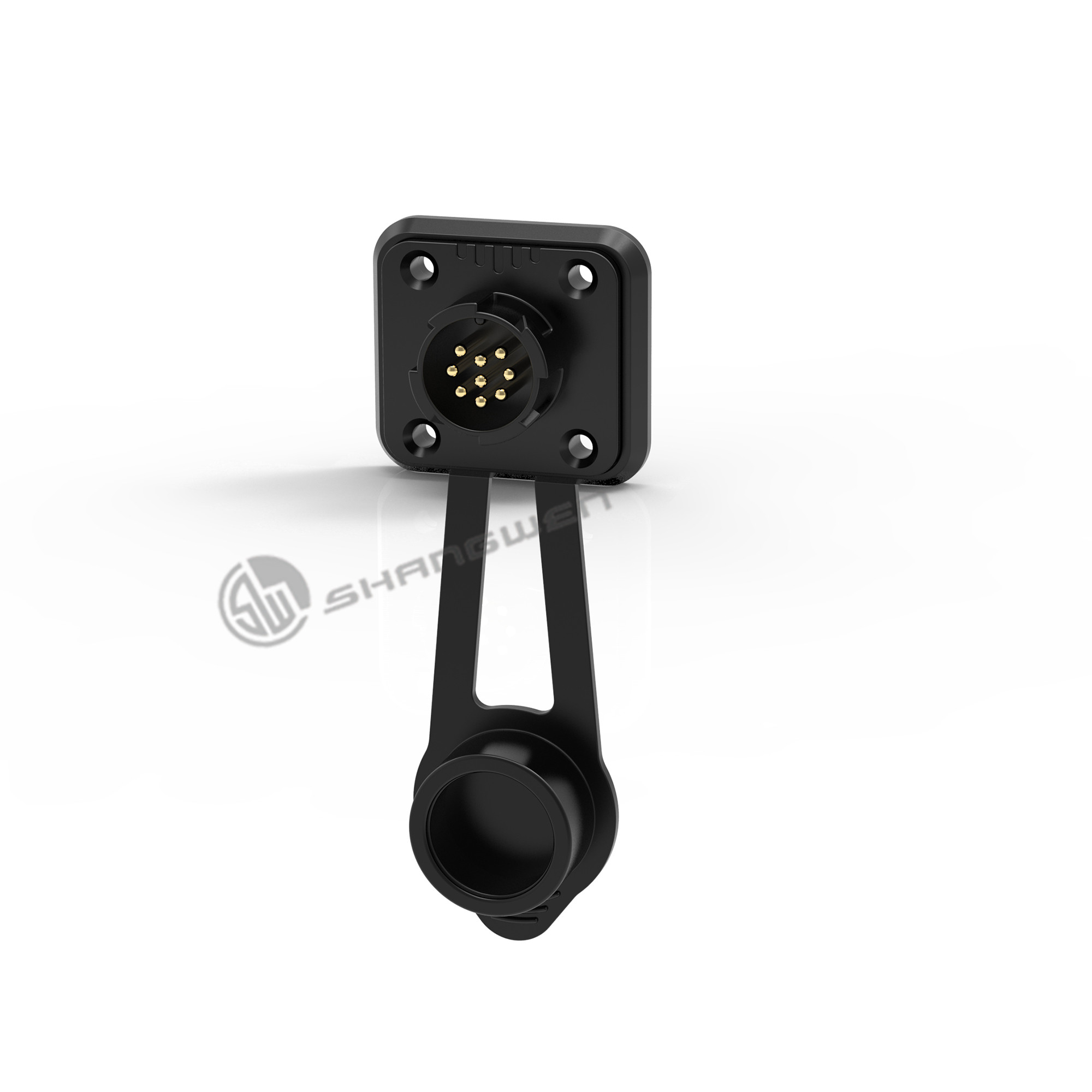

Model : SW19-9JSZ (9 pin male socket)

Connect reliably

Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
Waterproof rating IP67

Quick, simple self locking system
Small size of product

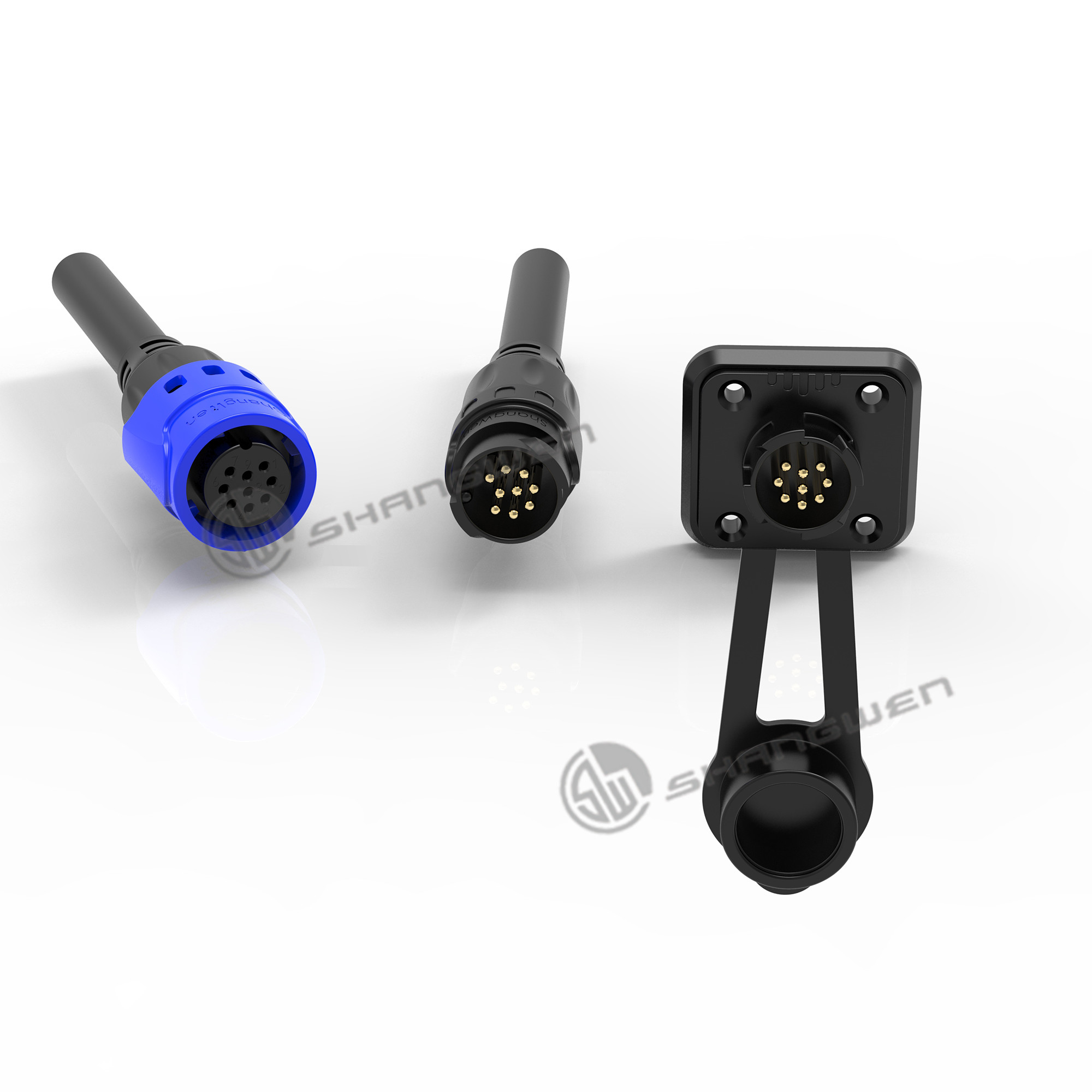

Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector 0

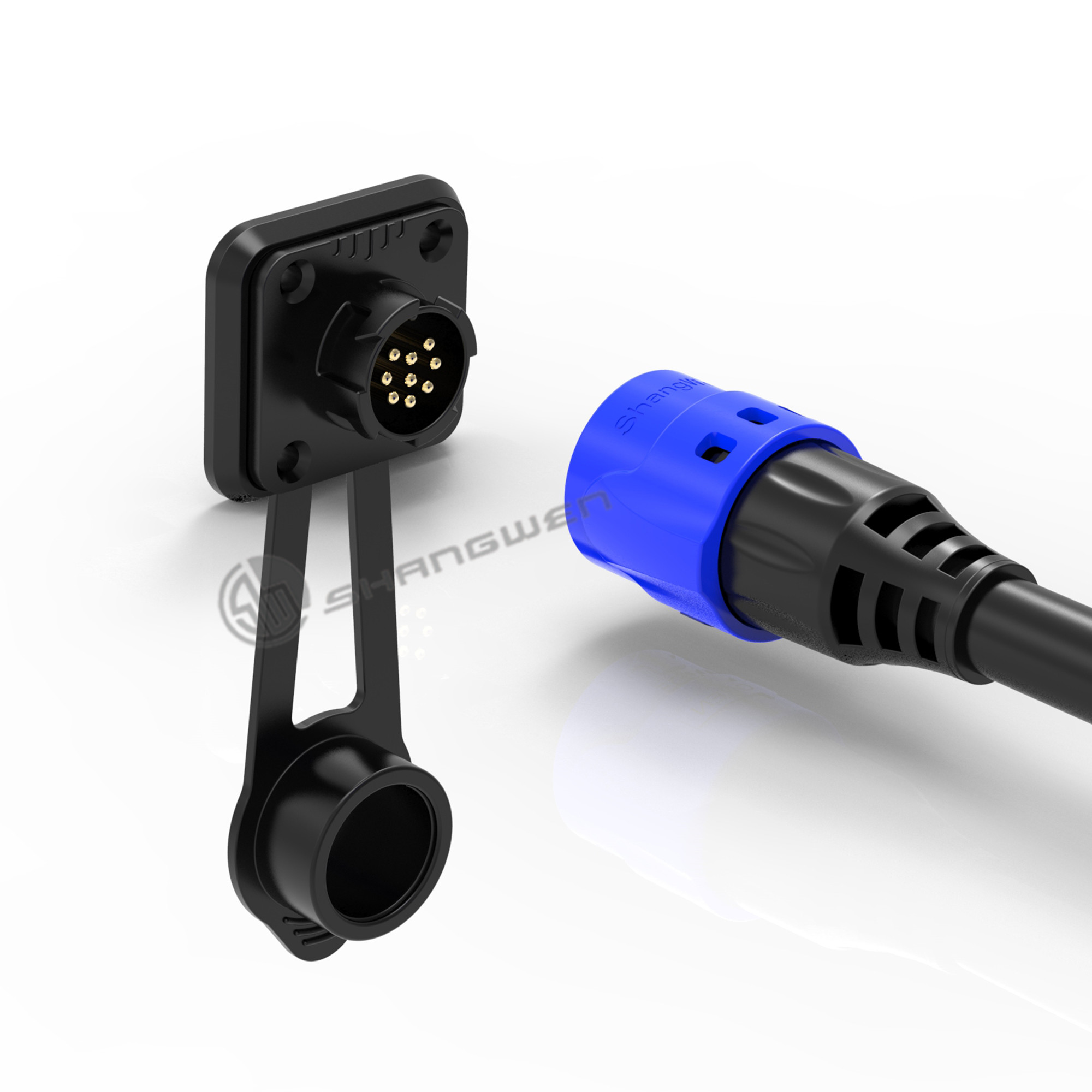

Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector 1
1. Electrical parameters
Contacts NO.
9 pin
Rated current
5A
Rated voltage
60V AC
Withstand voltage
125V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2. Mechanical parameters
Service life
>1000 times
Power line
Φ4.5mm-Φ11mm
Cable size
0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals
Screw terminal and soldering terminal available
3. Material and environmental parameters
Shell
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ1.0mm
Protection degree
IP67
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃
4. Size reference (unit /mm)
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector 2
Waterproof gasket
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector 3
5. Operating reference
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector 4
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector 5
Industrial 9 Pin Waterproof Connector Male Socket IP67 Connector 6
