Electrical M19 Connector Plastic Wrap 9 Pin Male Connector Waterproof

Name: Electrical M19 Connector Plastic Wrap 9 Pin Male Connector Waterproof
Brand: SHANGWEN
SKU: SW19-9JST
Price: 2.20 USD
Availability: InStock
Rating: 5 (114 reviews)

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW19-9JST
Minimum Order Quantity	2 pieces
Price	$2.20/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Push-pull Self-locking Connection	Name	Waterproof M19 Connector
Type	SW19 Self-locking Series	Gender	Male
Industrial Electronics	Accessories	Application	Industrial
Multiple Cores	2,3,4,5,6,9,3+9 Pin Support
Highlight	Electrical M19 Connector , M19 Connector Plastic , 9 Pin Male Connector Waterproof

Leave a Message

Product Description

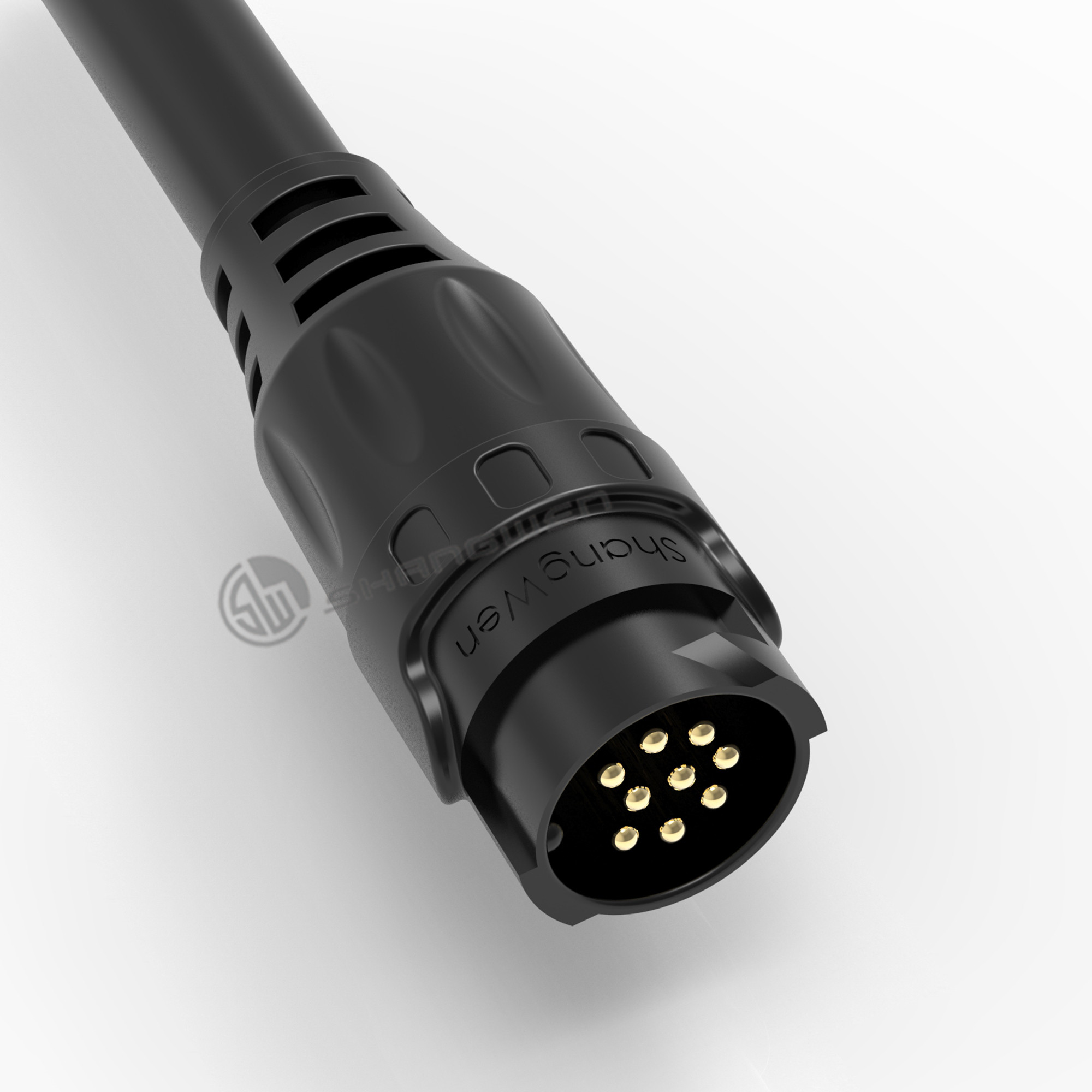

M19 Self-locking Series Plastic Wrap Gold Plated 9 Pin Industrial Male Connectors

Model : SW19-9JST (9 pin male plug)

☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal transmission and electrical conductivity

☑Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws

☑Precision waterproof design,with high waterproof level,no fear of wading environment;

Products Description

SW19 Self-locking series-9 Pin connector

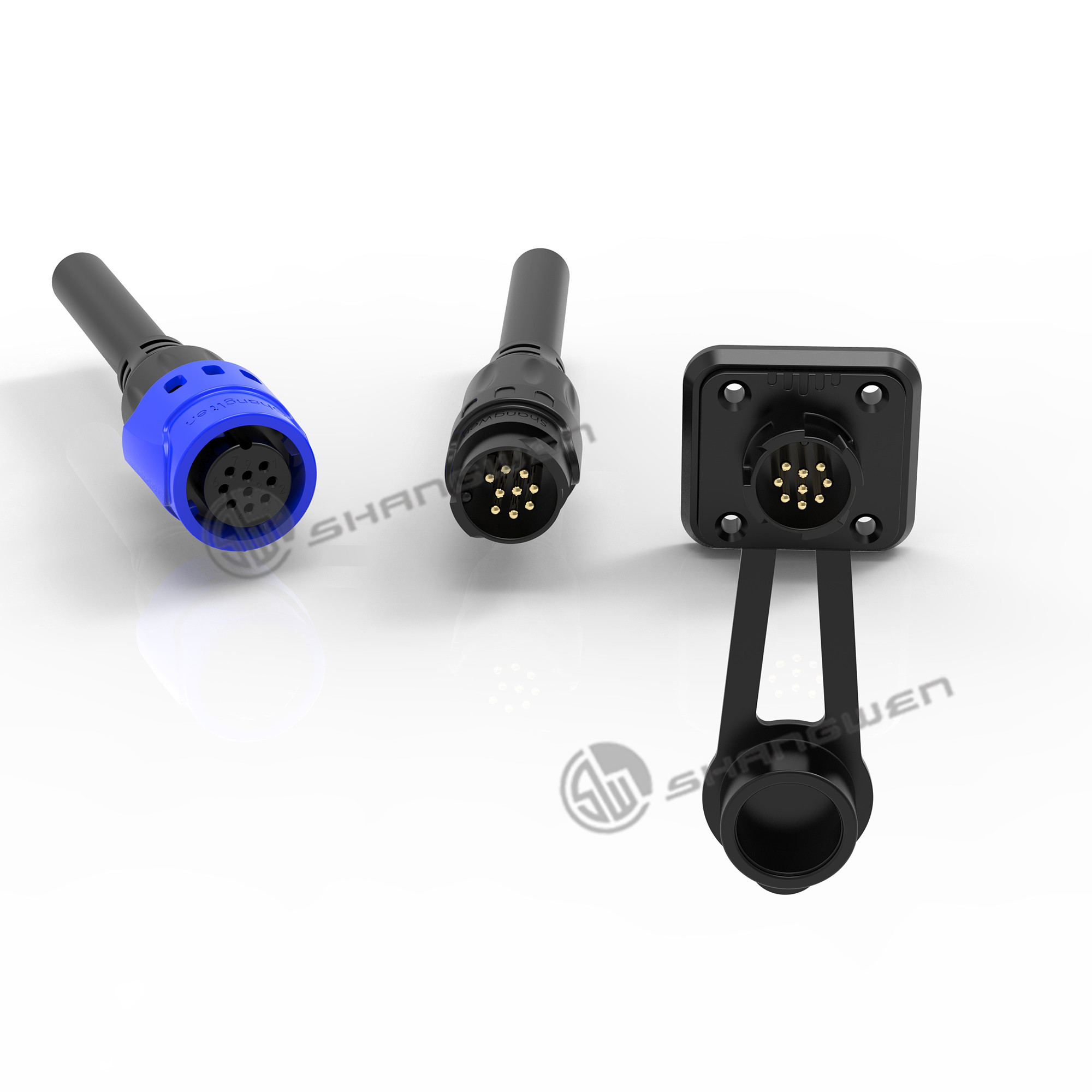

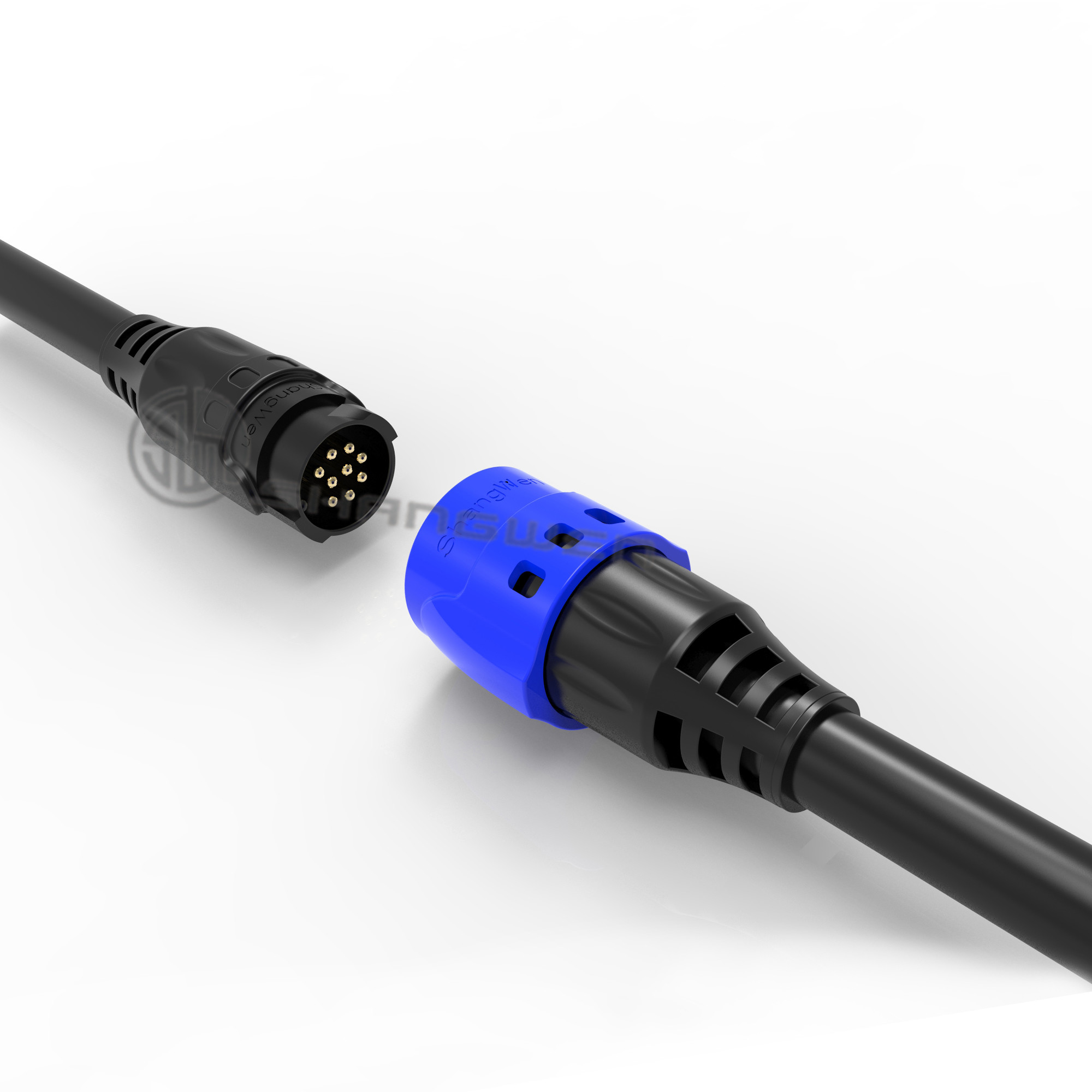

M19 series is an industrial connector, which includes male plug, female plug and male socket.

There are two locking methods:

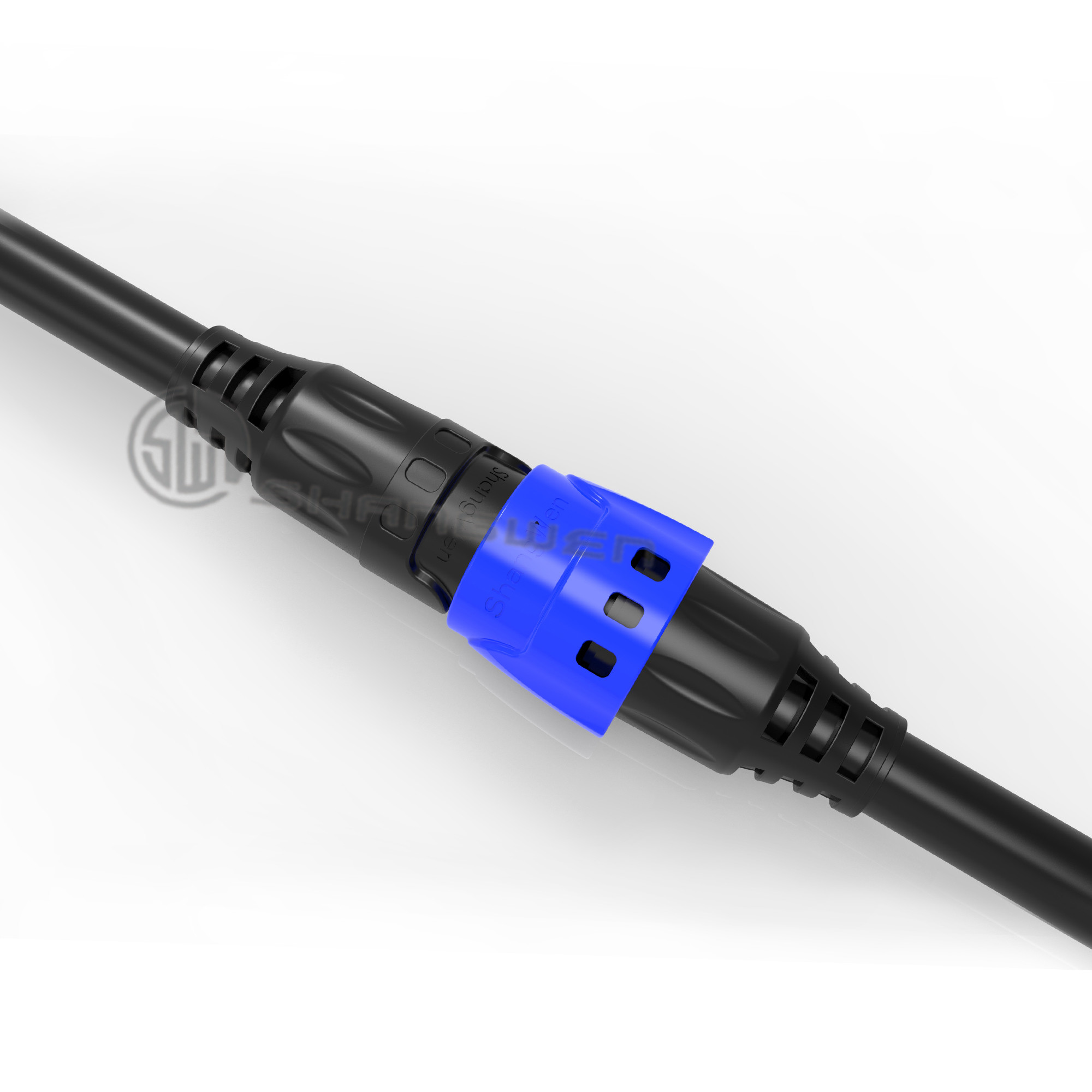

1. Push-pull self-locking connection

2. Plastic screw connection, both locking design is very reliable.

The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.

The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

1. Electrical parameters

Contacts NO.	9 pin
Rated current	5A
Rated voltage	60V AC
Withstand voltage	125V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Cable size	0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals	Screw terminal and soldering terminal available

3. Material and environmental parameters

Shell	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ1.0mm
Protection degree	IP67
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃
