Self Locking M19 Connector Waterproof IP67 Electrical Female Connector

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Features | Push-pull Self-locking Connection | Name | M19 Connector Waterproof |
---|---|---|---|
Type | SW19 Screw Tooth Series | Application | Industrial |
Gender | Female | Industrial Electronics | Accessories |
Multiple Cores | 2,3,4,5,6,9,3+9 Pin Support | ||
Highlight | Self Locking M19 Connector,M19 Connector Waterproof,IP67 Electrical Female Connector |
Product Description

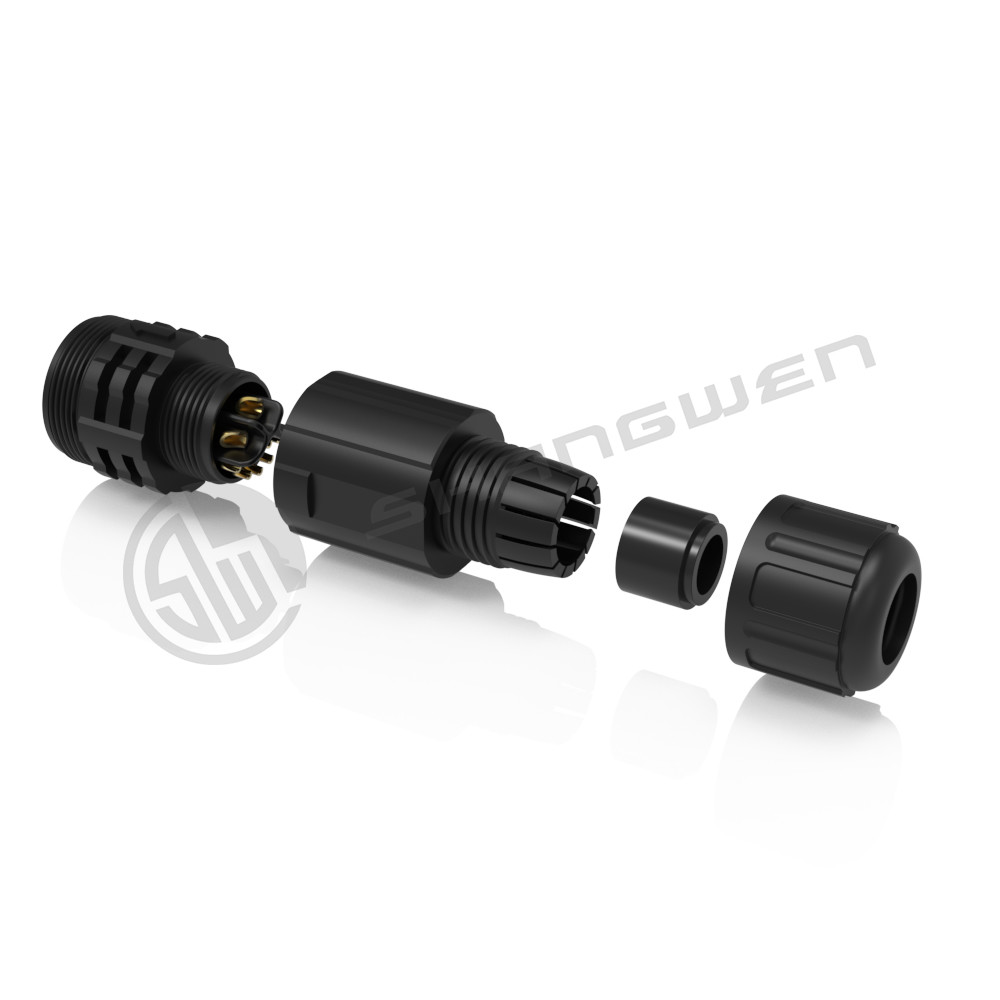

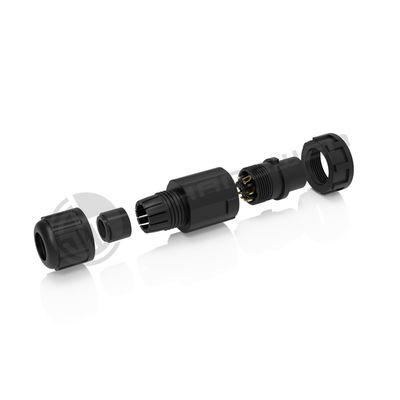

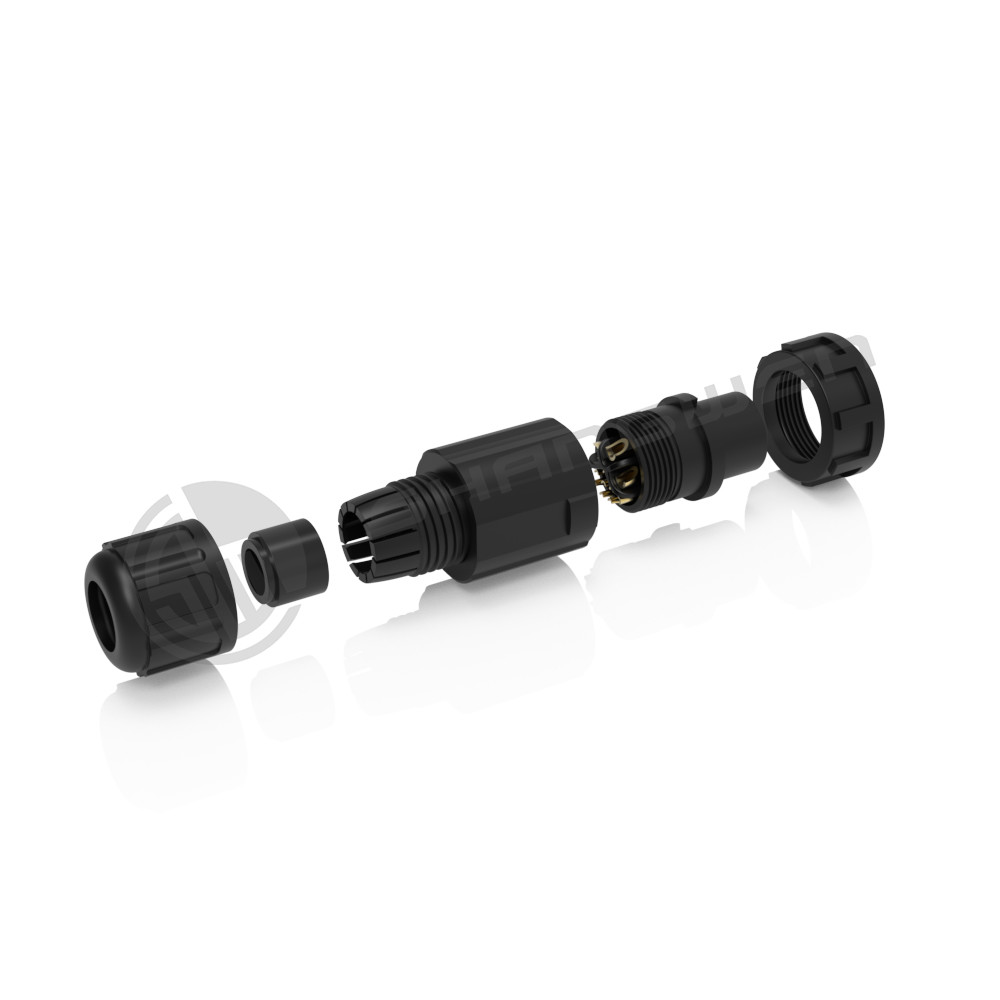

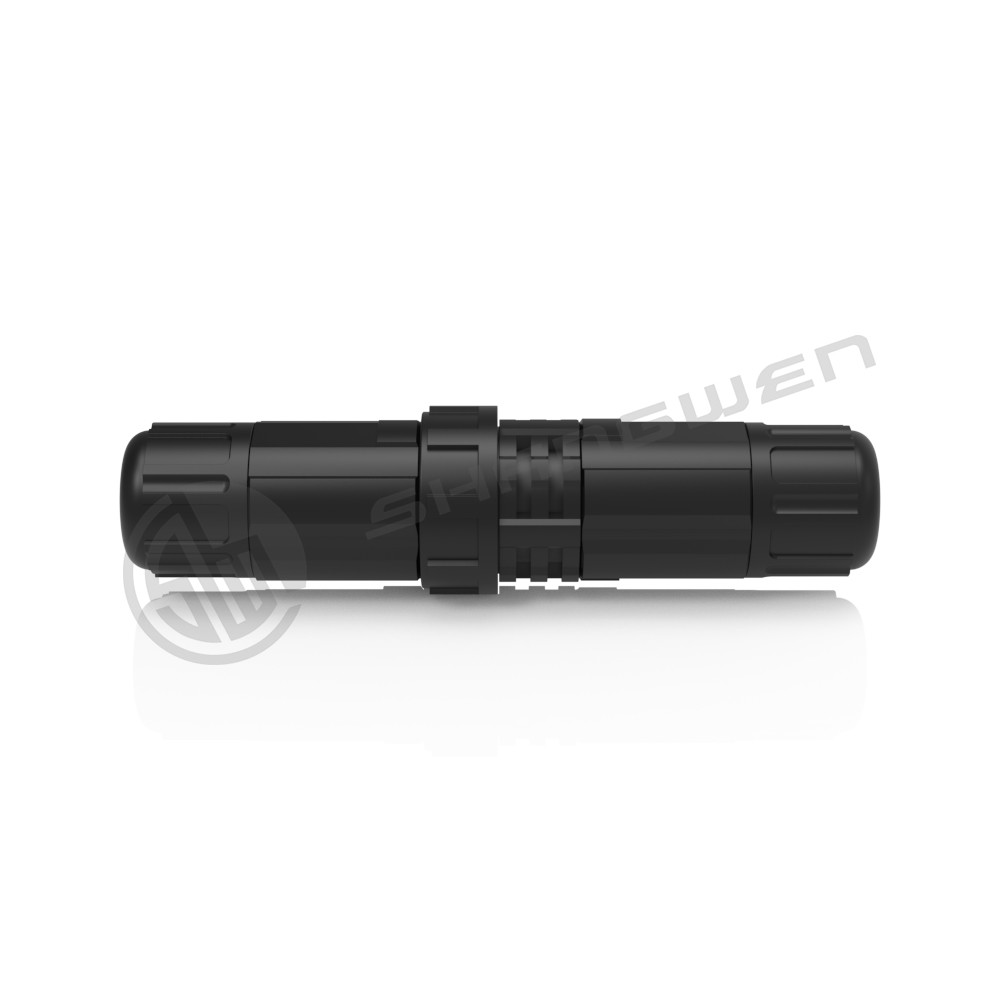

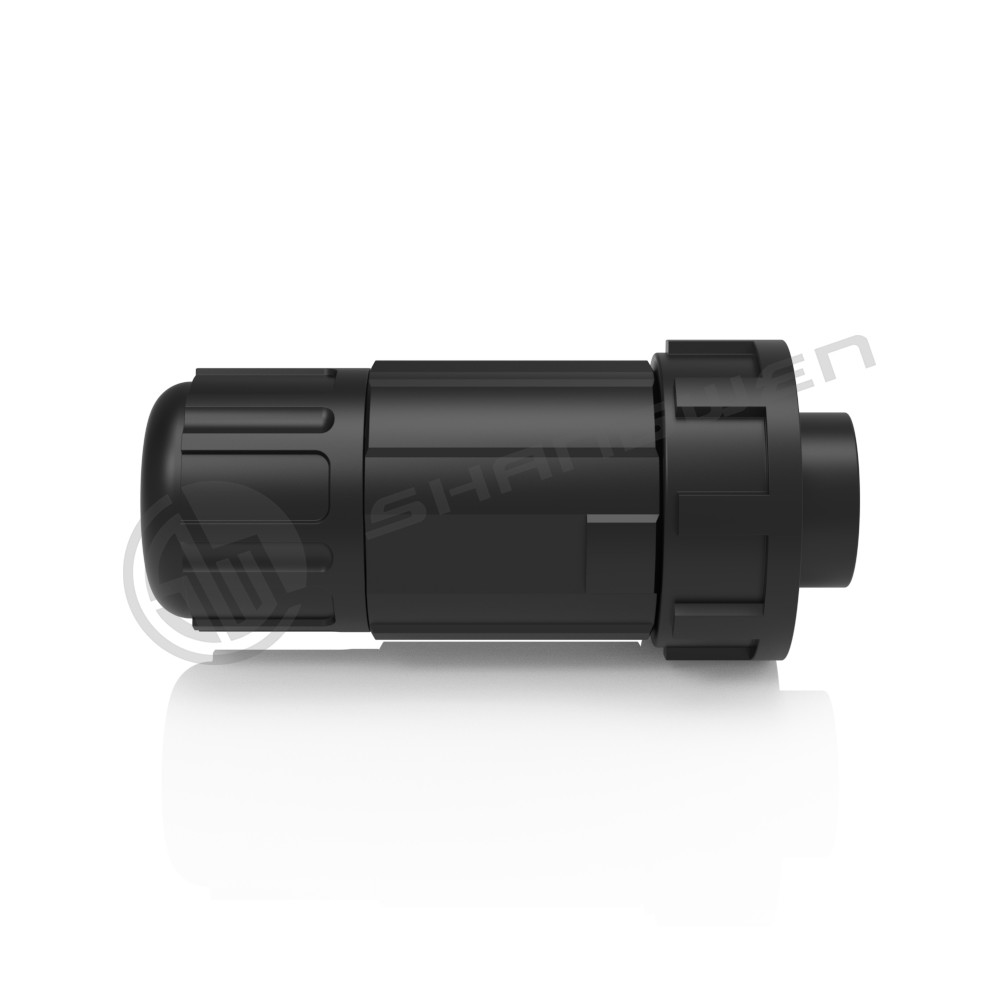

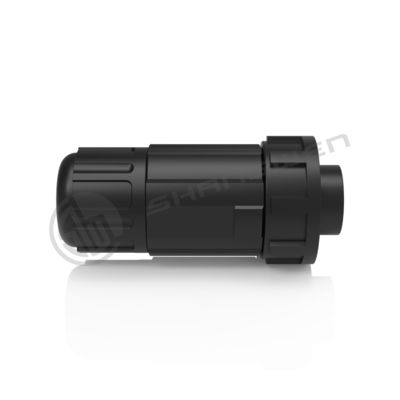

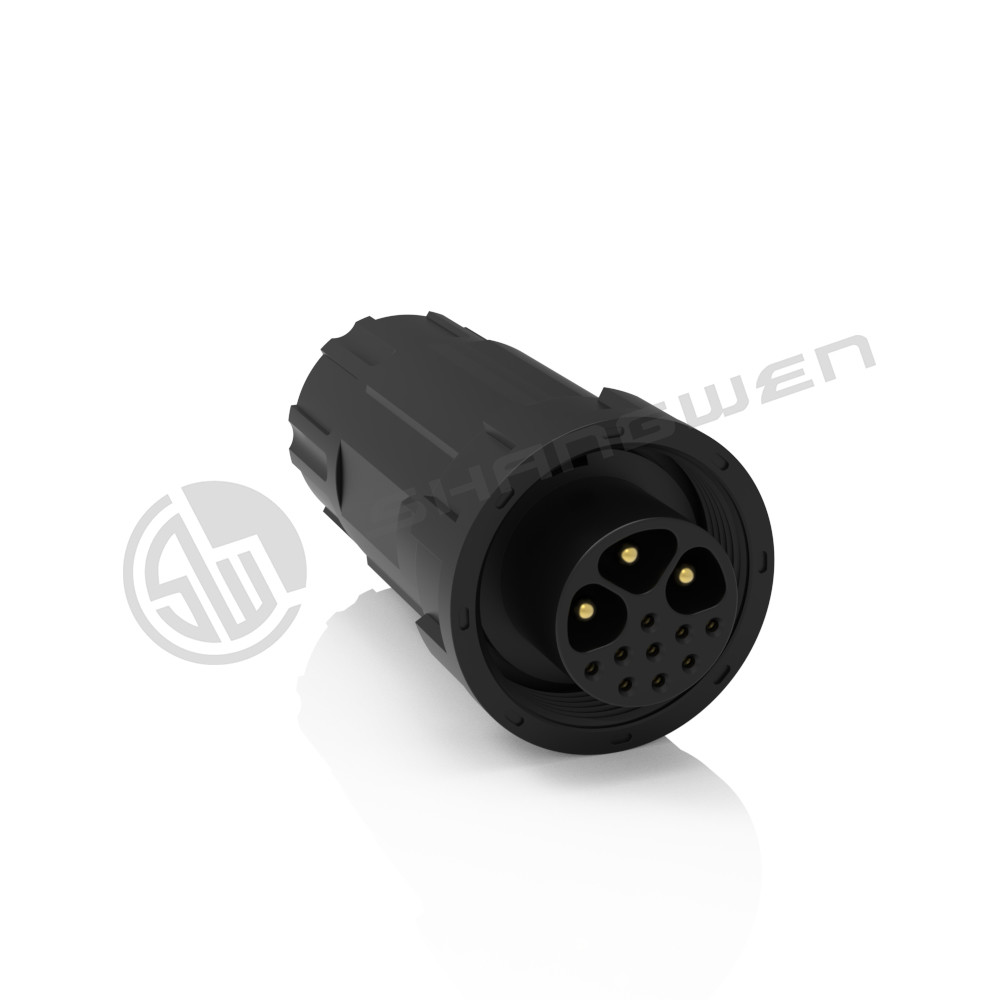

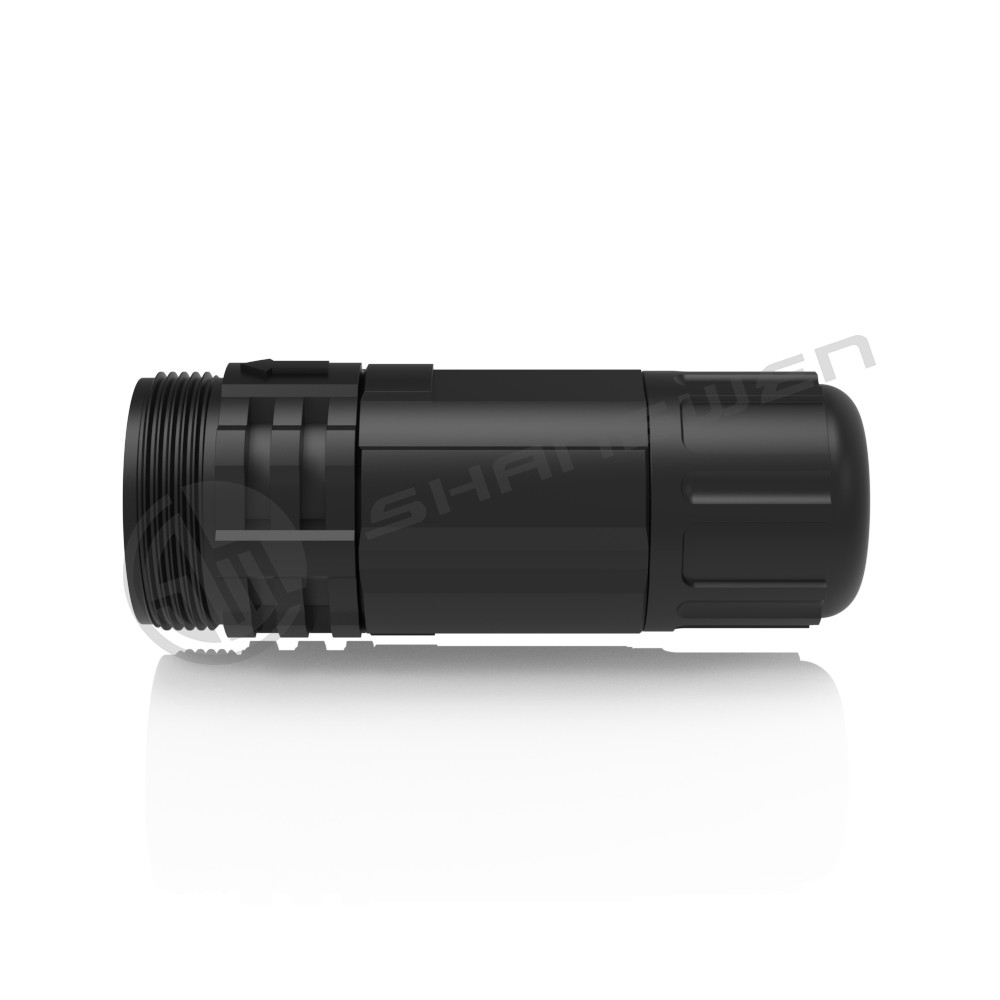

New Design Industrial Screw Tooth Type Black Shell 3+9 Pin Female Plug M19 Connector
Model: SW19-12K-LT (3+9 pin female plug)
☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multi-style inner core design to meet the needs of various industries
☑Protection level: used in outdoor scenes, protection level up to IP67
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
Products Description
SW19 Screw tooth series-3+9 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.
M19 series is an industrial connector, which includes male plug, female plug and male socket.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.



1. Electrical parameters
Contacts NO.
|
3+9 pin
|
Rated current
|
5A
|
Rated voltage
|
60V AC
|
Withstand voltage
|
125V
|
Insulation resistance
|
≥100mΩ
|
Contact resistance
|
≤10mΩ
|
2. Mechanical parameters
Service life
|
>1000 times
|
Power line
|
Φ4.5mm-Φ11mm
|
Cable size
|
0.3mm²-2.5mm²(22AWG-12AWG)
|
Type of terminals
|
Screw terminal and soldering terminal available
|
3. Material and environmental parameters
Shell&insulated parts
|
High performance engineering plastics
|
Contacts
|
Copper alloy
|
Contact diameter
|
Φ1.0mm
|
Protection degree
|
IP67
|
Flame-retardant grade
|
UL94-V0
|
Temperature range
|
-40℃~105℃
|
4.Size reference (unit /mm)

Operating reference


Application area
