Indoor Female Power Signal Connector Accessories Rj45 Plug Adapter

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW8XX
Minimum Order Quantity	5 pieces
Price	$4.50 / piece

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Gender

Female

Adapter

Industrial Electronics

Accessories

Highlight

Rj45 Plug Adapter Connector Accessories

Indoor Female Connector Accessories

Leave a Message

Product Description

Products Description

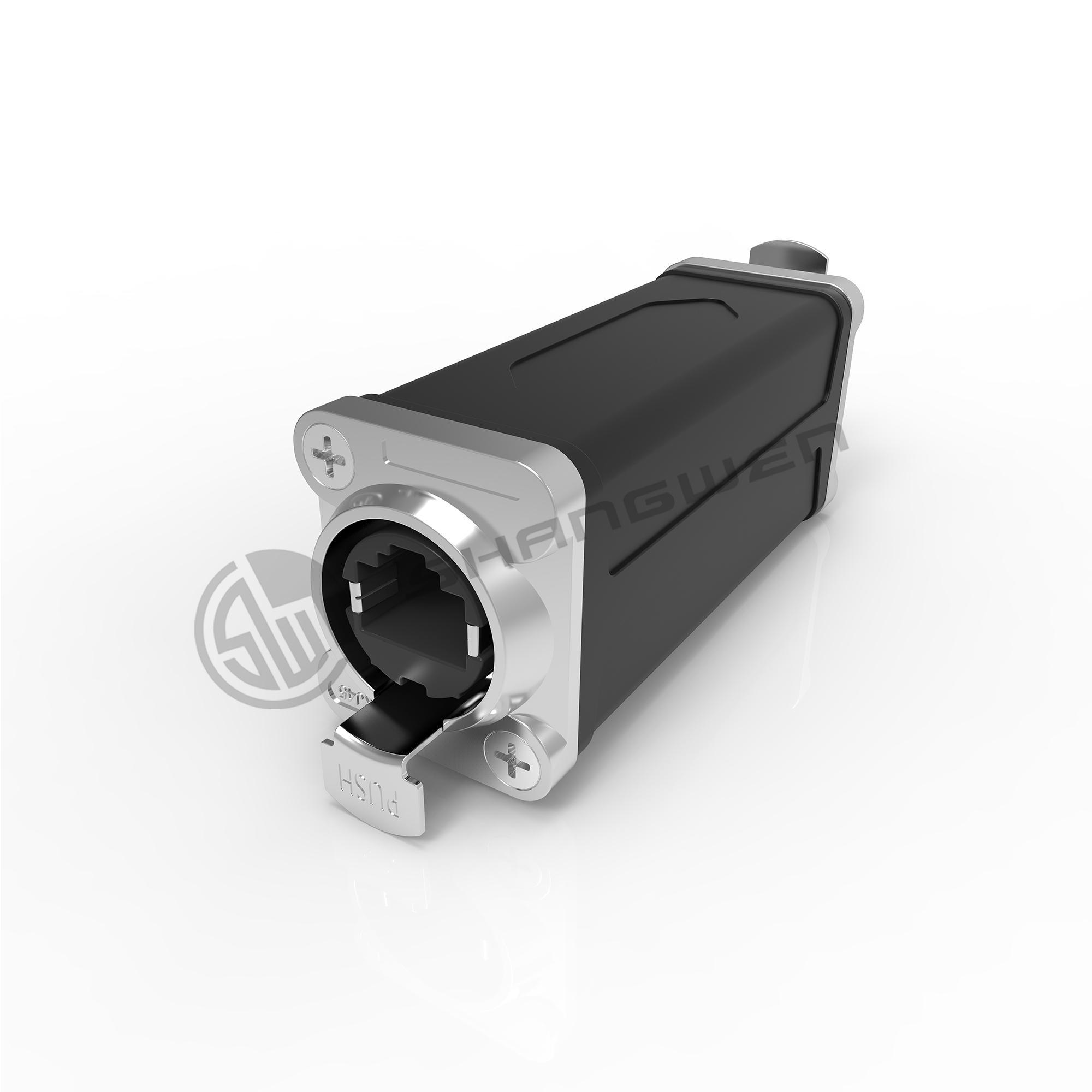

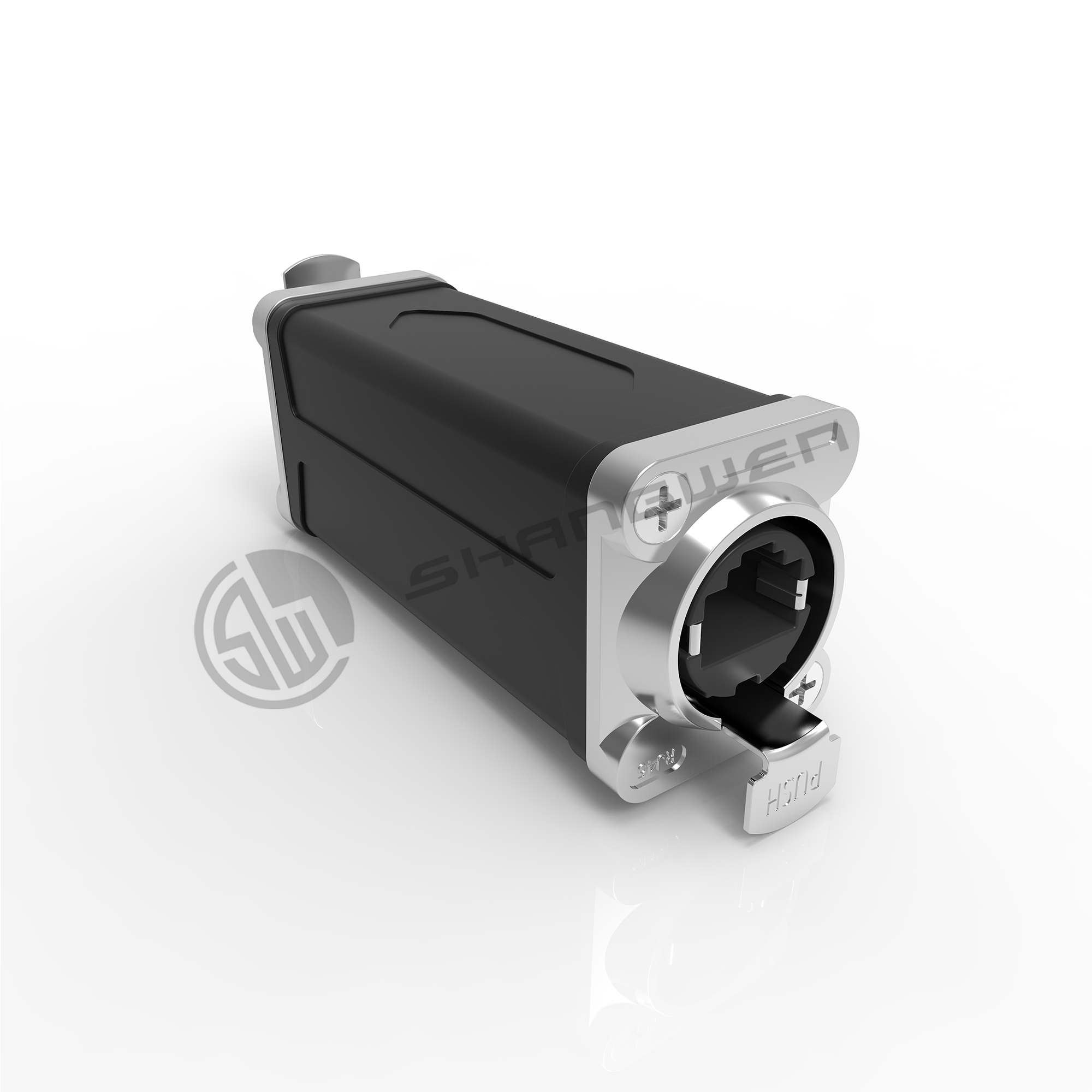

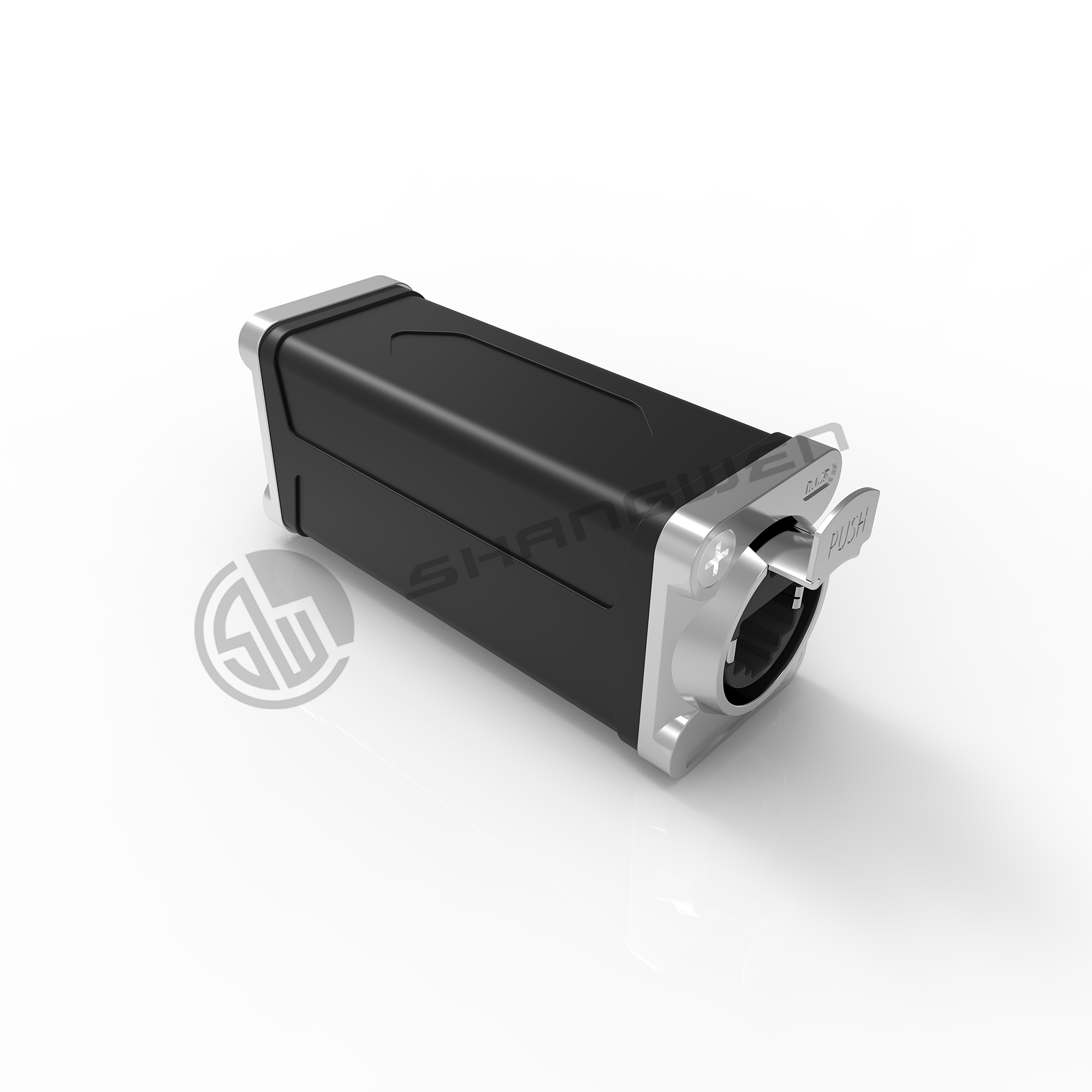

indoor Female Power Signal Connector Accessories Rj45 Plug Adapter

Indoor signal adapter connector

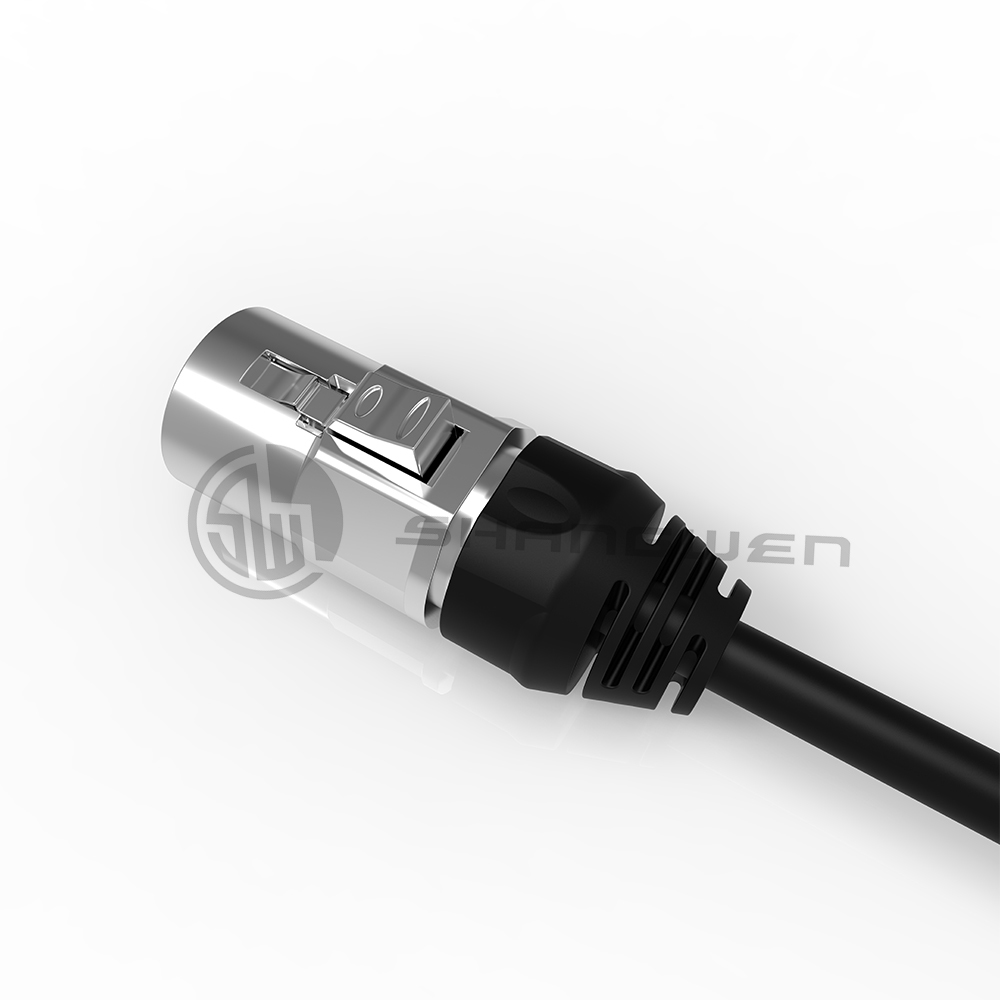

☑Accommodates SW8XX or any standard RJ45 plug

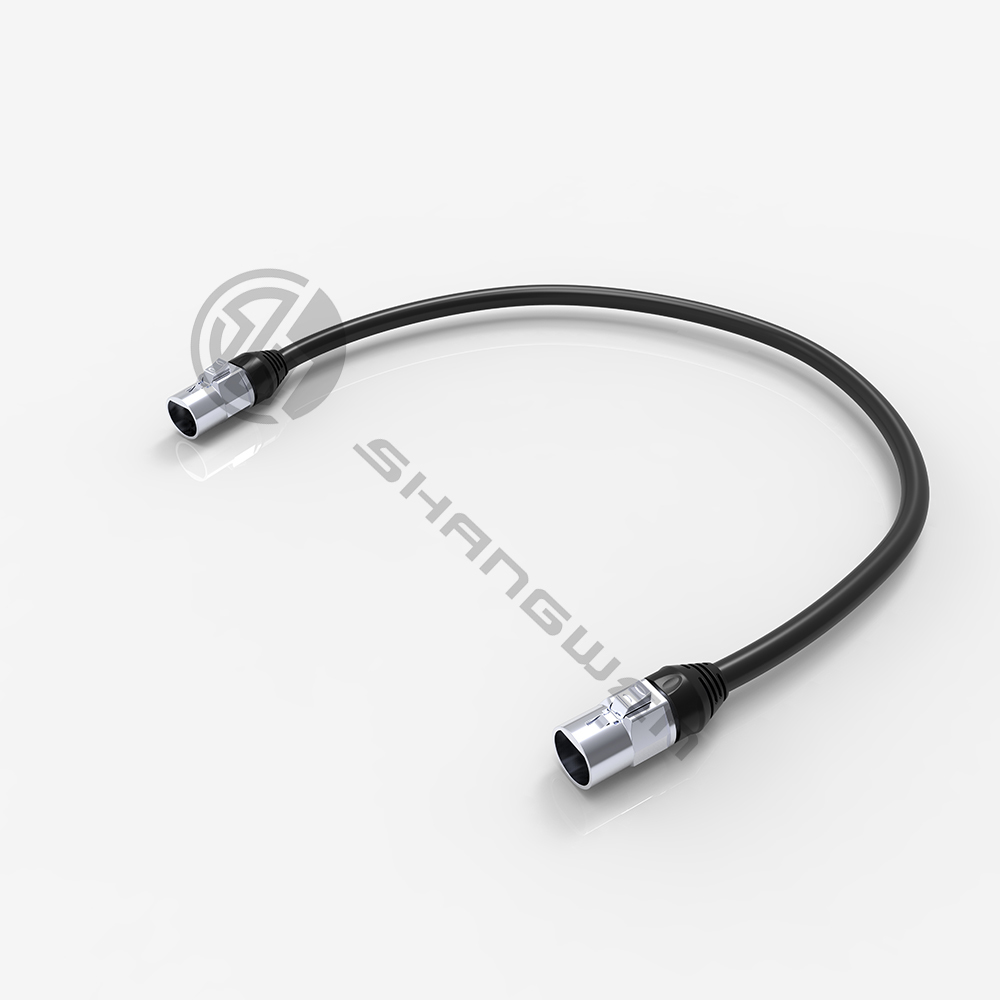

☑SW8XX coupler (adapter) for cable to cable mating – use with SW8XX carriers or any standard RJ45 plug
☑Approved latch lock system

1.Product parameters

Connection Type	Coupler (adapter)
Gender	Female

2.Electrical parameters

Contact resistance	< 10 mΩ
Dielectric strength	1 kVdc
Frequency Range	1 - 100 MHz
Insulation resistance	> 0.5 GΩ
Rated current per contact	1,5 A
Rated voltage	< 50 V
Standards compliant	TIA/EIA 586B, IEC11801

3.Mechanical parameters

Insertion force	≤ 20 N
Pull out force	≤ 20 N
Service life	> 1000 mating cycles
Locking device	Latch lock

4.Material and environmental parameters

Contacts	Bronze (CuSn8)
Contact plating	0.2 µm Au over Ni plating
Inner core	PBTP 15 % GR
Shell	AlMgSi 0.5, black plated
Clamping sleeve	CuZn35Pb2, tinned
Flammability	UL 94 HB
Temperature range	-30 °C to +80 °C

5.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
