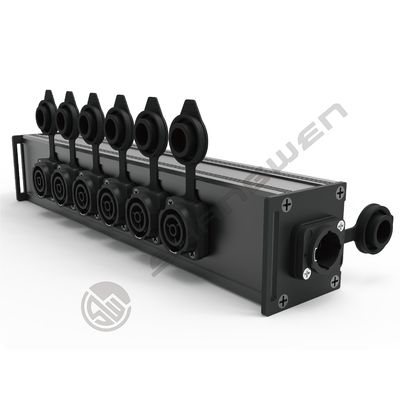

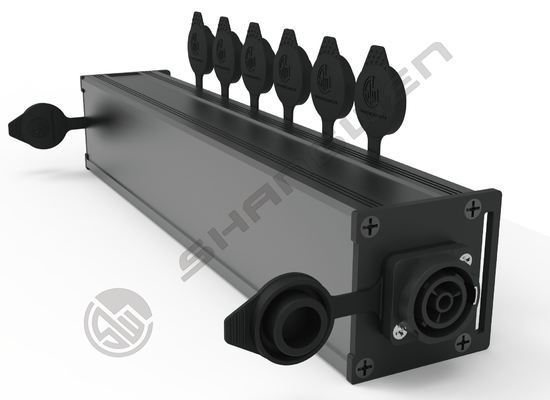

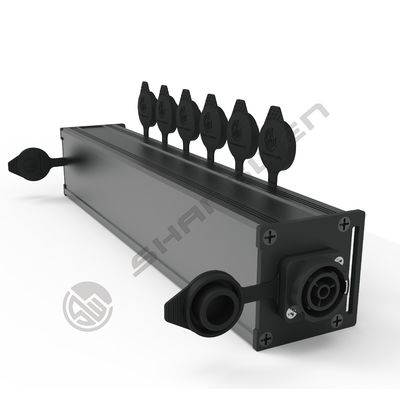

PowerCon TRUE 4 6 Channel TRUE1 Connectors Electrical Breakout Box Powercon Power Coupler Distribution Output LED Light IP65
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | With LED Light, Stage | Contact Material | Copper |
|---|---|---|---|
| Rated Current | 20 A | Rated Voltage | 250 V |
| Gender | Male/Female | Housing Material | Plastic |
| IP Level | IP65 | Type | Adapter |
| Industrial Electronics | Accessories | Light Source | LED |
| Material | Aluminum | ||
| Highlight | PowerCon TRUE1 Connectors breakout Box,LED Light PowerCon Connectors Breakout Box,IP65 PowerCon Connectors Breakout Box |
||
Product Description
Products Description
Electrical Breakout Box P-Con TR in 6 Channel TR Out Connectors Powercon Power Coupler Distribution Output Box
SW3FWT29
☑Fast and easy locking system
1.Product parameters
Product | SWSFWT29 |
Connection Type | Power coupler |
2.Electrical parameters
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 4 kVdc |
Insulation resistance | > 0.1 GΩ (IEC 68-2-30) |
Rated current per contact | 20 A rms |
Rated voltage | 250 V ac |
3.Mechanical parameters
Service life | ＞1000 mating cycles |
Locking device | Quick lock |
4.Size reference (unit /mm)
Application area
Company Information
Patent & Certification
Exhibition activities
Packaging reference
Payment and logistics
FAQ
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.
4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
