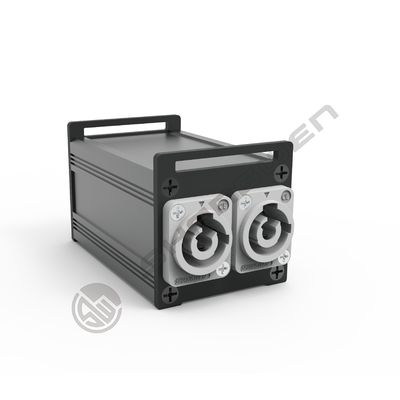

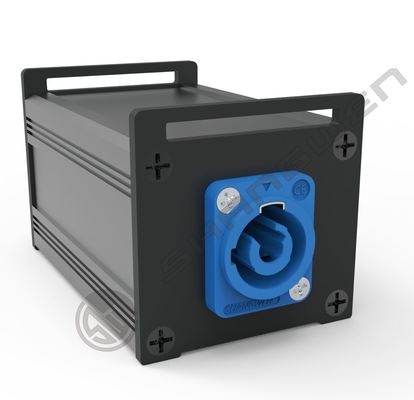

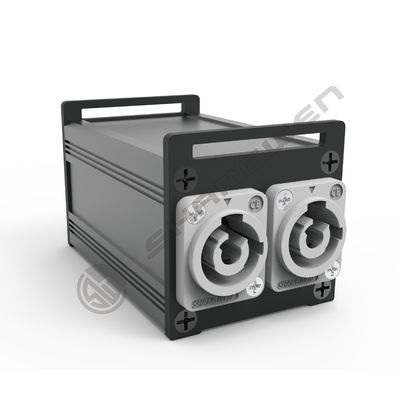

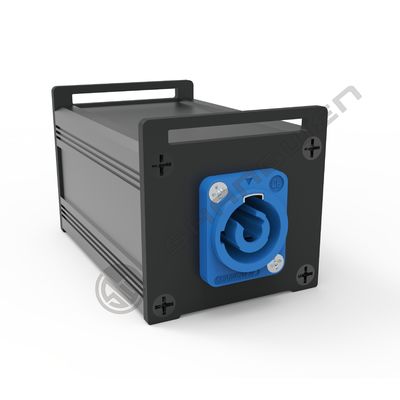

Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | With LED Light, Stage | Contact Material | Copper |
|---|---|---|---|
| Rated Current | 20 A | Rated Voltage | 250 V |
| Gender | Male/Female | Housing Material | Plastic |
| IP Level | IP40 | Type | Adapter |
| Industrial Electronics | Accessories | Light Source | LED |
| Material | Aluminum | ||
| Highlight | Powercon Connectors for Power Coupler,Powercon Connectors for LED Stage Lights,Powercon Connectors for Audio Equipment |
||
Product Description
Products Description
Powercon 1 Input Male Female Connectors for LED Stage Lights Audio Equipment Power Couple Socket
SW3FWT23
☑High current capacity, rated at 20 A / 250 V ac
☑Fast and easy locking system ☑Extremely robust and reliable ☑Excellent cable retention ☑New latch design for easier handling and secure locking
1.Product parameters
Product | SWSFWT23 |
Connection Type | Adapter |
2.Electrical parameters
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 4 kVdc |
Insulation resistance | > 0.1 GΩ (IEC 68-2-30) |
Rated current per contact | 20 A rms |
Rated voltage | 250 V ac |
3.Mechanical parameters
Service life | ＞1000 mating cycles |
Locking device | Quick lock |
4.Size reference (unit /mm)
