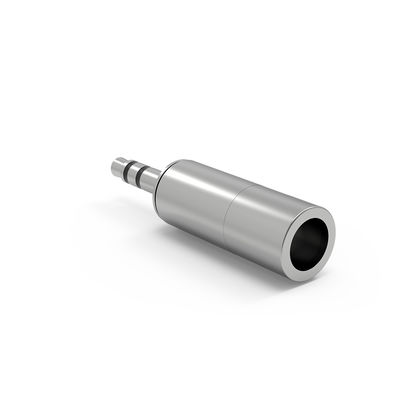

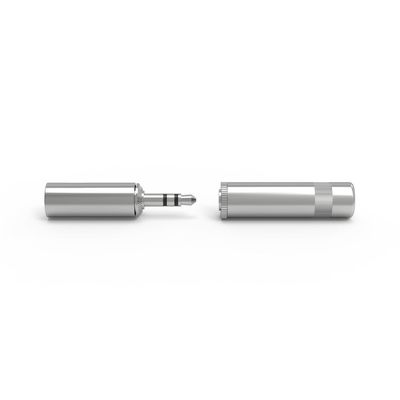

Audio Video 1/8" 3.5mm stereo jack Plug Connector Waterproof Metal Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Contacts | 2 | Termination Method | Solder |
|---|---|---|---|
| Gender | Male | Size | 3.5 Mm |
| Material | Metal | Name | 3.5 Mm Jack Plug |
| Insulation Resistance | 1000 MOhm | Feature | Waterproof |
| Highlight | Electrical 3.5 mm Jack Plug,3.5 mm Jack Plug Waterproof,3.5mm Jack Connector |
||
Product Description
Electrical 3.5mm Jack Connector with 3 MOhm Contact Resistance
Product Description:
The 3.5mm Jack Plug is a reliable and robust male plug connector designed for a wide range of applications. This jack plug is designed for soldering and has a straight connector style. It is capable of operating in temperatures from -20°C to +85°C with excellent performance. The 3.5mm male plug is also known as a 3.5mm mono jack plug and is a jack connector with a solder termination method. It is suitable for a variety of applications, including audio, video and power. This jack plug is perfect for any project or application requiring a reliable 3.5mm connection.
Features:
- Product Name: 3.5mm Jack Plug
- Contact Plating: Gold
- Termination Method: Solder
- Connector Type: 3.5mm mono jack plug, Audio connector, 3.5mm Male Plug, 3.5mm stereo plug
- Operating Temperature: -20°C to +85°C
- Current Rating: 1A
Technical Parameters:
| Name | 3.5mm Jack Plug |
|---|---|
| Connector Type | Jack Plug |
| Connector Style | Straight |
| Gender | Male |
| Number of Contacts | 2 |
| Contact Resistance | 3 MOhm |
| Voltage Rating | 30 V |
| Material | Metal |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C To +85°C |
| Audio connector | 1/8" 3.5mm Plug, 3.5mm stereo jack plug |
Applications:
The 3.5mm stereo jack plug from Shangwen (Model Number: SWJSH-3SM) is a great choice for anyone looking for an audio connection. This plug is designed and manufactured in Shenzhen, China using the Solder termination method. The plug is Male and has a Voltage Rating of 30V with a Contact Resistance of 3MOhm and an Insulation Resistance of 1000MOhm.
The 3.5mm stereo jack plug from Shangwen is perfect for connecting audio devices with a 3.5mm audio input, such as mobile phones, laptops, and tablets. It can also be used with 3.5mm mono jack plug, providing a secure connection that won’t come undone during use. This plug is a great choice for anyone looking for an audio connection that is reliable and will provide quality sound.
The 3.5mm stereo jack plug from Shangwen is the perfect solution for anyone looking for a reliable, high-quality audio connection. With its superior design, soldering method, and resistance levels, this plug is sure to provide the best audio experience possible.
Customization:
Shangwen 3.5mm Jack Plug
- Brand Name: Shangwen
- Model Number: SWJSH-3SM
- Place of Origin: Shenzhen,China
- Termination Method: Solder
- Insulation Resistance: 1000 MOhm
- Material: Metal
- Contact Resistance: 3 MOhm
- Current Rating: 1 A
- Application: Audio connector, 3.5mm mono jack plug, jack Connector
FAQ:
- Q: What is the Brand Name of the 3.5 mm Jack Plug?
A: The Brand Name of the 3.5 mm Jack Plug is Shangwen. - Q: What is the Model Number of the 3.5 mm Jack Plug?
A: The Model Number of the 3.5 mm Jack Plug is SWJSH-3SM. - Q: Where is the 3.5 mm Jack Plug produced?
A: The 3.5 mm Jack Plug is produced in Shenzhen,China. - Q: What is the size of the 3.5 mm Jack Plug?
A: The 3.5 mm Jack Plug is 3.5mm in size. - Q: What material is the 3.5 mm Jack Plug made of?
A: The 3.5 mm Jack Plug is made of high-quality copper.
