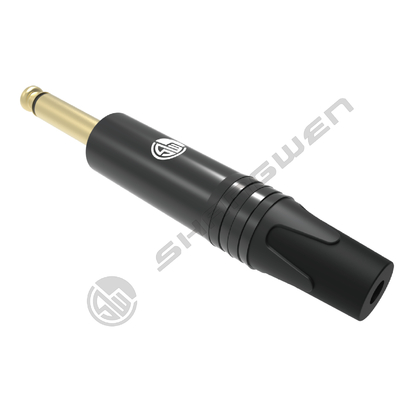

Metal 3.5 mm 1/4" Inch Mono Jack Male Plug Stereo Headphone Jack 3.5mm 6.35mm Gold

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW-TS106
Minimum Order Quantity	20
Price	$0.59

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type

Plug

Application

Industrial

Gender

Male

Industrial Electronics

Accessories

Highlight

6.35mm Metal 3.5 mm Jack Plug

6.35mm Metal Mono Jack

Gold Metal Mono Jack

Leave a Message

Product Description

Products Description

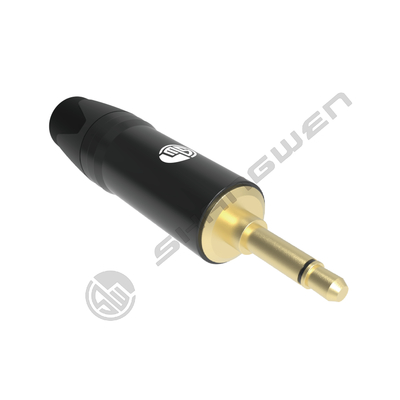

Metal 3.5 mm Jack Plug Through Hole Audio Jack Connector

6.35mm Jack Plug is a type of electrical connector, which is widely used in audio, video, and other applications. The plug is composed of a metal shell and two contacts, allowing it to securely and reliably connect two devices. It features a female 6.35mm jack to accept a male 6.35mm plug, and is designed with a dielectric strength of 1000V to ensure safe operation. The insulation resistance of the plug is up to 1000MΩ, ensuring excellent electrical insulation performance. This 6.35mm Jack Plug is an ideal solution for providing a stable connection between two devices.

Model : SW-TRS306-m10

☑ Product Name: 3.5 mm Jack Plug
☑ Gender: Male

☑Connector Type: 3.5mm mono Jack Plug

☑Termination Type: Solder type plug

☑Contact Plating: Gold

☑ Number of Contacts: 2

☑All-metal housing - rugged and reliable
☑ With chuck clamp sleeve and rubber gland – excellent cable protection
☑ Slim design – space-saving

1.Electrical parameters

Features	mono
Compatible	Speaker
Insulation Resistance	＞2GΩ
Dielectric Strength	0.5 KVdc

2.Mechanical parameters

Service life	>1,000 Mating Cycles
Power line	Φ3-8.0mm
Type of terminals	Screw terminal and soldering terminal available

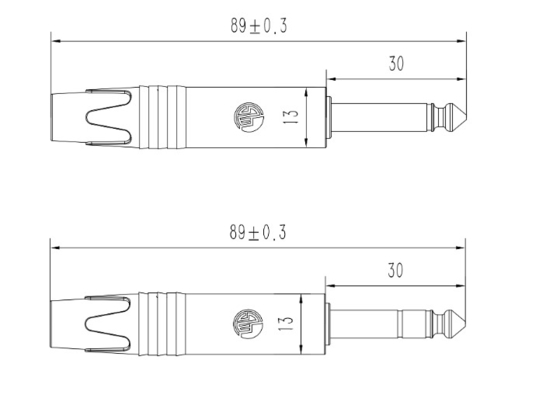

3.Size reference (unit /mm)
