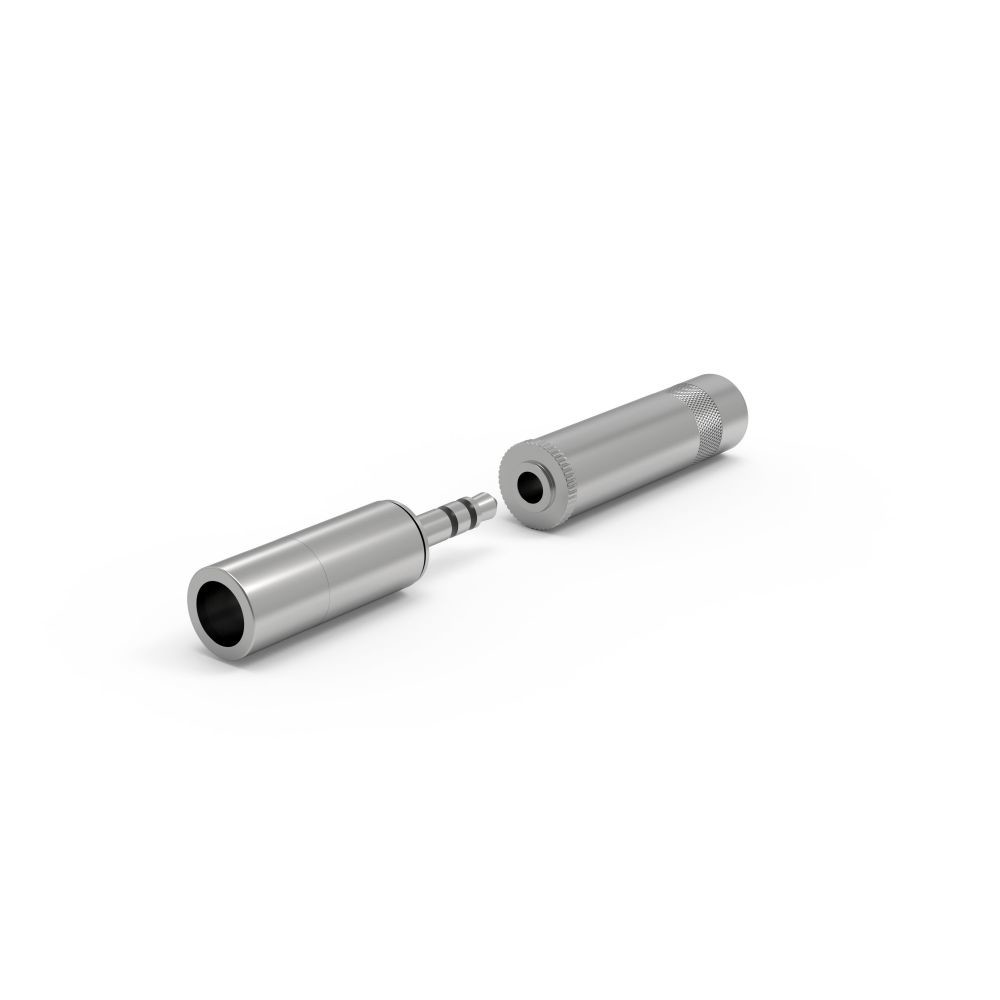

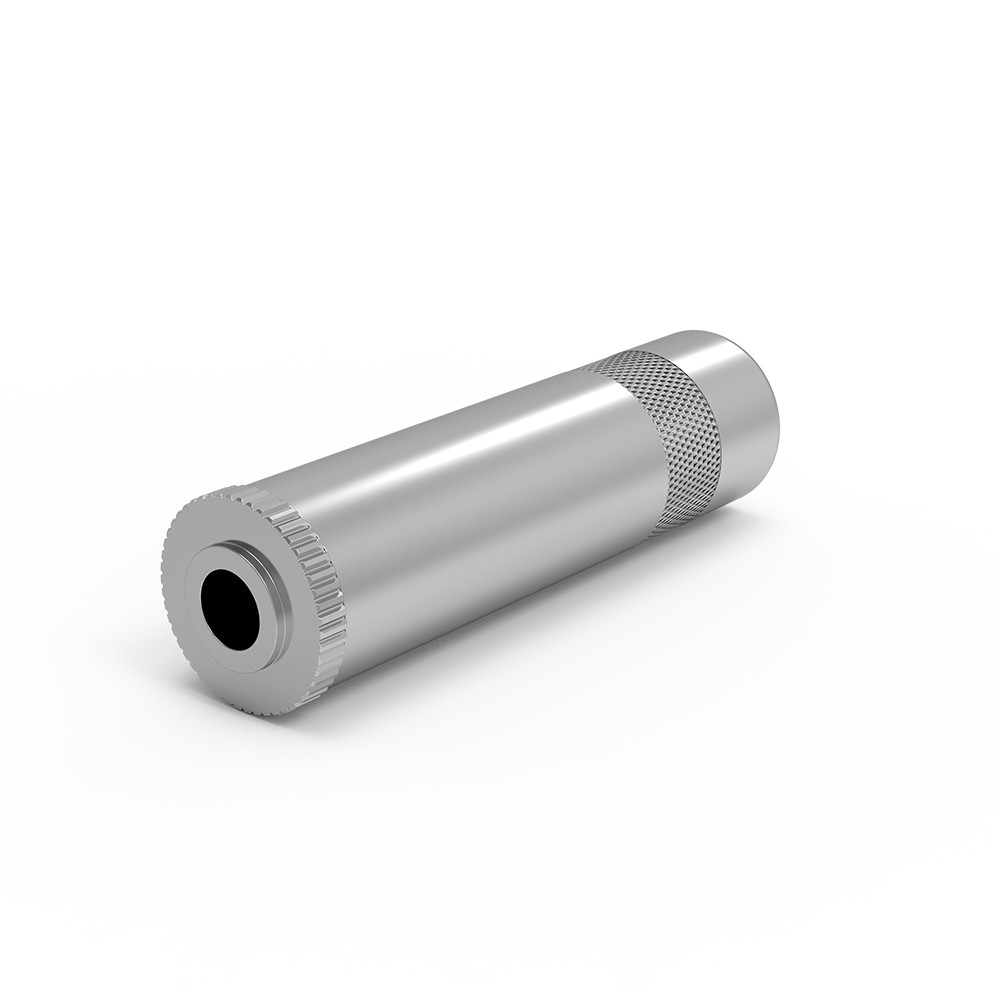

Customized Audio.5 Mm 3.5 Mm Jack Plug Lightweight 1000 MOhm Insulated

Place of Origin Shenzhen,China
Brand Name Shangwen
Model Number SWJSH-3FP
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -20°C To +85°C Material Metal
Number Of Contacts 1 Contact Plating Gold
Gender Male Contact Resistance 3 MOhm
Weight Lightweight Size 3.5 Mm
Highlight

Customized 3.5 mm Jack Plug

,

3.5 mm Jack Plug Lightweight

,

Audio Jack Plug 1000 MOhm

Leave a Message
Product Description

1000 MOhm Insulated 3.5mm 1/8" PlugCustomized Audio.5 Mm 3.5 Mm Jack Plug Lightweight 1000 MOhm Insulated 0

Product Description:

3.5 mm Jack Plug is an audio connector for providing a convenient connection between audio equipment. It is a Through Hole mounting type that operates in a temperature range of -20°C to +85°C. It offers excellent insulation resistance of 1000 MOhm and has two contacts with a current rating of 1 A. This jack conn   ector is reliable and durable, and is widely used in consumer audio and video applications.



Features:

  • Product Name: 3.5 mm Jack Plug
  • Operating Temperature: -20°C To +85°C
  • Connector Type: 3.5mm Male Plug, Audio connector
  • Voltage Rating: 30V Voltage Rating
  • Size: 3.5 Mm
  • Name: 3.5 Mm Jack Plug


Technical Parameters:

Name 3.5mm Jack Plug
Connector Type Jack Plug
Gender Male
Number of Contacts 2
Connector Style Straight
Mounting Type Through Hole
Termination Method Solder
Contact Resistance 3MOhm
Insulation Resistance 1000MOhm
Operating Temperature -20°C To +85°C


Applications:

3.5 mm Jack Plug - Shangwen SWJSH-3SM

The Shangwen SWJSH-3SM 3.5 mm Jack Plug is a metal connector specifically designed for use in audio applications. It is a straight plug and comes with gold plating for enhanced contact quality and extended life. It is suitable for both stereo and mono connections, and the insulation resistance is up to 1000 MOhm.

The 3.5 mm Jack Plug is commonly used in many audio devices such as headphones, amplifiers, microphones, speakers, and more. It is also known as a 1/8" 3.5mm Plug or a 3.5mm audio plug. It is a reliable and cost-effective solution for many audio applications.

The Shangwen SWJSH-3SM 3.5 mm Jack Plug is a high-quality connector with excellent signal transfer performance. It is made of superior materials and is designed to last for years of reliable use. It is designed for easy installation and is perfect for a wide range of audio applications.



Customization:

Shangwen 3.5mm Jack Plug Customized Service

Shangwen provides 3.5mm stereo jack plug, 1/8" 3.5mm Plug, 3.5mm Jack Plug customized service with the following product specifications:

  • Brand Name: Shangwen
  • Model Number: SWJSH-3SM
  • Place of Origin: Shenzhen,China
  • Insulation Resistance: 1000 MOhm
  • Current Rating: 1 A
  • Operating Temperature: -20°C To +85°C
  • Material: Metal
  • Voltage Rating: 30 V

FAQ:

  • Q: What is Shangwen's 3.5 mm Jack Plug?
  • A: Shangwen's 3.5 mm Jack Plug (Model Number: SWJSH-3SM) is a standard audio plug, commonly used for connecting headphones and portable audio devices. It is produced by Shangwen, a company based in Shenzhen, China.
  • Q: What is the size of the 3.5 mm Jack Plug?
  • A: The 3.5 mm Jack Plug has an outer diameter of 3.5 mm or 0.14 inches.
  • Q: What is the purpose of the 3.5 mm Jack Plug?
  • A: The 3.5 mm Jack Plug is used to connect headphones, portable audio devices, and other audio-visual equipment together.
  • Q: What are the components of the 3.5 mm Jack Plug?
  • A: The 3.5 mm Jack Plug consists of a metal plug and a plastic or rubber insulator.
  • Q: What is the material of the 3.5 mm Jack Plug?
  • A: The metal plug of the 3.5 mm Jack Plug is usually made of brass, and the insulator is made of plastic or rubber.
