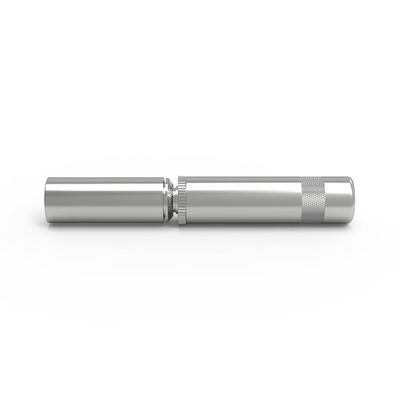

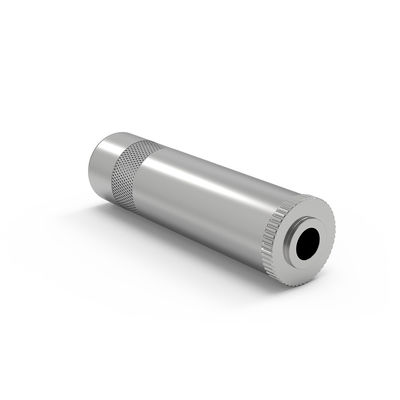

Straight 1/8" 3.5mm Plug 3.5mm stereo jack plug Connector Through Hole 1000 MOhm Insulation Resistance

Place of Origin Shenzhen,China
Brand Name Shangwen
Model Number SWJSH-3FP
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -20°C To +85°C Contact Resistance 3 MOhm
Mounting Type Through Hole Voltage Rating 30 V
Gender Male Insulation Resistance 1000 MOhm
Connector Style Straight Name 3.5 Mm Jack Plug
Highlight

Straight 3.5 mm Jack Plug

,

3.5 mm Jack Plug Through Hole

,

Jack Plug Connector 1000 MOhm

Leave a Message
Product Description

3.5mm Jack Plug Through Hole Connector 1000 MOhm Insulation Resistance

Straight 1/8" 3.5mm Plug 3.5mm stereo jack plug Connector Through Hole 1000 MOhm Insulation Resistance 0

Product Description:

The 3.5mm mono jack plug is a male plug with through hole mounting type, termination method of solder, contact resistance of 3 MOhm and an operating temperature range of -20°C to +85°C. The 3.5mm mono jack plug is designed for connecting audio or video equipment, such as headphones, amplifiers, speakers, and other audio equipment. It is also compatible with most 3.5mm audio devices, such as cell phones, tablets, laptops, and other audio devices. The 3.5mm stereo jack plug is also available for stereo audio connections. The 3.5mm audio jack plug is a high quality, reliable connector with excellent electrical and mechanical properties. It is ideal for a variety of applications in the audio and video industry.



Features:

  • Product Name: 3.5 mm Jack Plug
  • Termination Method: Solder
  • Material: Metal
  • Insulation Resistance: 1000 MOhm
  • Number of Contacts: 2
  • Mounting Type: Through Hole
  • Audio connector
  • 1/8" 3.5mm Plug
  • 3.5mm stereo jack plug


Technical Parameters:

Parameter Value
Size 3.5 mm
Mounting Type Through Hole
Name 3.5 Mm Jack Plug
Termination Method Solder
Voltage Rating 30 V
Insulation Resistance 1000 MOhm
Contact Plating Gold
Contact Resistance 3 MOhm
Connector Style Straight
Current Rating 1 A


Applications:

Shangwen SWJSH-3SM 3.5 mm Jack Plug is an audio connector with 3.5mm stereo jack plug and 3.5mm male plug. It is made of metal material, and is through-hole mounting type with two contacts. It has a current rating of 1 A. It is mainly used in consumer electronics and car audio for connecting speakers, headphones, microphones, and other audio devices. It is widely used in tablets, laptops, smartphones, portable music players, and other portable audio devices. The 3.5 mm Jack Plug is also used in car audio systems, home theatre systems, high-end audio systems, and professional audio systems. It is a reliable and durable connector that can provide excellent performance in a wide variety of applications.



Customization:

3.5mm Mono Jack Plug

Brand Name: Shangwen

Model Number: SWJSH-3SM

Place of Origin: Shenzhen,China

Operating Temperature: -20°C To +85°C

Current Rating: 1 A

Insulation Resistance: 1000 MOhm

Gender: Male

Connector Type: Jack Plug

3.5mm Male Plug - Audio connector.



FAQ:

Q1: What is 3.5 mm Jack Plug?
A1: 3.5 mm Jack Plug is a type of audio connector used in many consumer audio devices, such as headphones and smartphones.
Q2: What is the Brand Name and Model Number of the 3.5 mm Jack Plug?
A2: The Brand Name is Shangwen, and the Model Number is SWJSH-3SM.
Q3: Where is the 3.5 mm Jack Plug made?
A3: The 3.5 mm Jack Plug is made in Shenzhen, China.
Q4: What is the purpose of a 3.5 mm Jack Plug?
A4: A 3.5 mm Jack Plug is used to connect audio devices to headphones, smartphones, and other audio equipment.
Q5: What is the size of the 3.5 mm Jack Plug?
A5: The 3.5 mm Jack Plug has a diameter of 3.5 millimeters.
