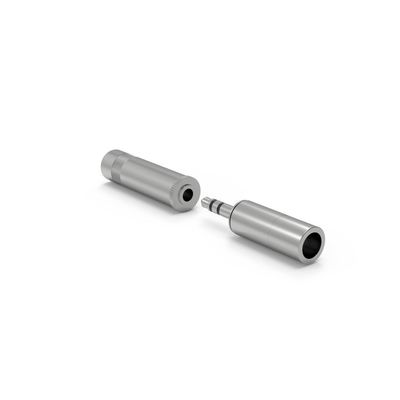

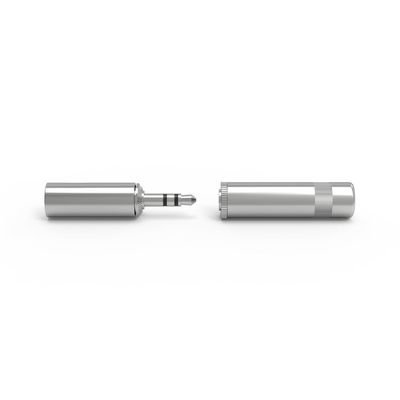

Audio Connector 3.5 Mm Jack Plug Male Straight Style With Through Hole

Name: Audio Connector 3.5 Mm Jack Plug Male Straight Style With Through Hole
Brand: Shangwen
SKU: SWJSH-3SM/3FP
Rating: 4.8 (140 reviews)

Place of Origin	Shenzhen,China
Brand Name	Shangwen
Model Number	SWJSH-3SM/3FP

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Name	3.5 Mm Jack Plug	Termination Method	Solder
Contact Resistance	3 MOhm	Material	Metal
Number Of Contacts	1	Insulation Resistance	1000 MOhm
Current Rating	1 A	Size	3.5 Mm
Highlight	Audio 3.5 mm Jack Plug , Connector 3.5 mm Jack Plug , Jack Plug Male Straight

Leave a Message

Product Description

3.5mm Male Through Hole Plug

Product Description:

The 3.5mm Male Plug is an audio connector jack designed for use in audio connections. It is a straight connector style with through hole mounting type, and can withstand up to 30V of voltage. Its insulation resistance is 1000 MOhm which can provide superior sound quality, perfect for a wide range of audio applications. It is an ideal choice for audio and video connections, allowing you to connect your devices with ease.

Features:

Product Name: 3.5 mm Jack Plug
Voltage Rating: 30 V
Termination Method: Solder
Operating Temperature: -20°C To +85°C
Size: 3.5 Mm
Connector Type: Jack Plug
Jack Connector: 3.5mm Male Plug
Voltage: 30V

Technical Parameters:

Parameter	Value
Connector Style	Straight
Gender	Male
Size	3.5mm
Material	Metal
Voltage Rating	30V
Current Rating	1A
Contact Plating	Gold
Contact Resistance	3MOhm
Insulation Resistance	1000MOhm
Operating Temperature	-20°C To +85°C

Applications:

Shangwen SWJSH-3SM 3.5mm Jack Plug

Shangwen SWJSH-3SM 3.5mm Jack Plug is the ideal choice for a wide variety of applications. It features a 3.5mm stereo jack plug, a 30V voltage rating, an operating temperature range of -20°C to +85°C, and a termination method of soldering. The jack connector is perfect for audio, video, and other applications, such as gaming, home theater, and mobile devices. It’s a robust and reliable solution that can handle all your jack connector needs.

The 3.5mm audio jack is designed to provide optimal sound quality and performance, with a low-profile design that keeps it discreet and unobtrusive. The robust construction ensures that the stereo jack plug can withstand the rigors of external elements and use. The 3.5mm jack connector is perfect for connecting audio devices and is compatible with most standard 3.5mm cables and connectors.

Shangwen SWJSH-3SM 3.5mm Jack Plug is a reliable and cost-effective solution for your audio, video, and gaming needs. Its robust construction ensures that it can handle all the demands of your application, while its low-profile design keeps it discreet and unobtrusive. Whether you’re looking for a 3.5mm audio jack for your gaming setup, home theater, or mobile device, this jack connector is the perfect choice.

Customization:

Customized Service of 3.5 mm Jack Plug

Brand Name: Shangwen
Model Number: SWJSH-3SM
Place of Origin: Shenzhen,China
Insulation Resistance: 1000 MOhm
Number of Contacts: 2
Current Rating: 1 A
Name: 3.5 Mm Jack Plug
Contact Plating: Gold
Special Feature: Audio connector, 1/8" 3.5mm Plug, 1/8" 3.5mm Plug Connector

FAQ:

Q&A about 3.5mm Jack Plug

Q1:What is the brand name of this product?

A1:The brand name of this product is Shangwen.

Q2:What is the model number of this product?

A2:The model number of this product is SWJSH-3SM.

Q3:Where is this product from?

A3:This product is from Shenzhen, China.

Q4:What is this product used for?

A4:This product is a 3.5 mm jack plug, which is used for connecting audio devices such as mobile phones, computers, and music players.

Q5:What is the material of this product?

A5:This product is made of high-quality metal and plastic.
