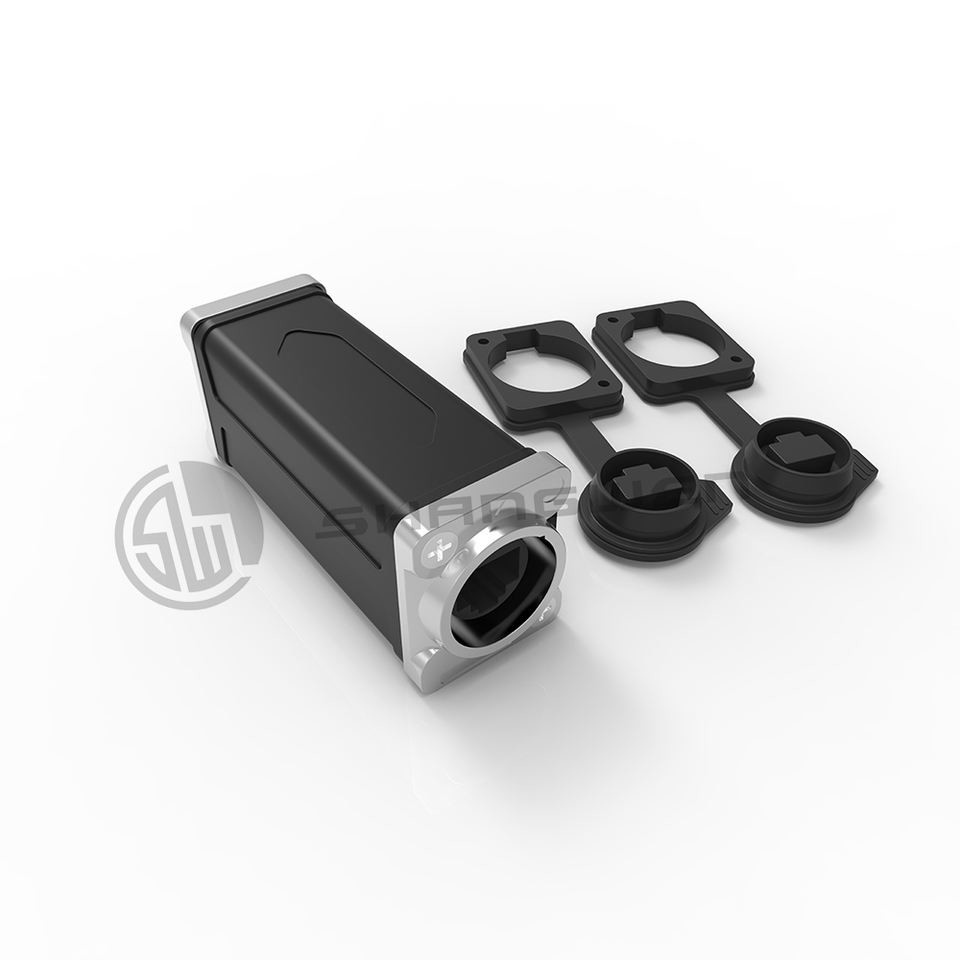

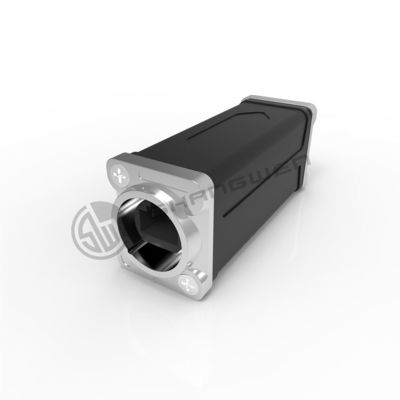

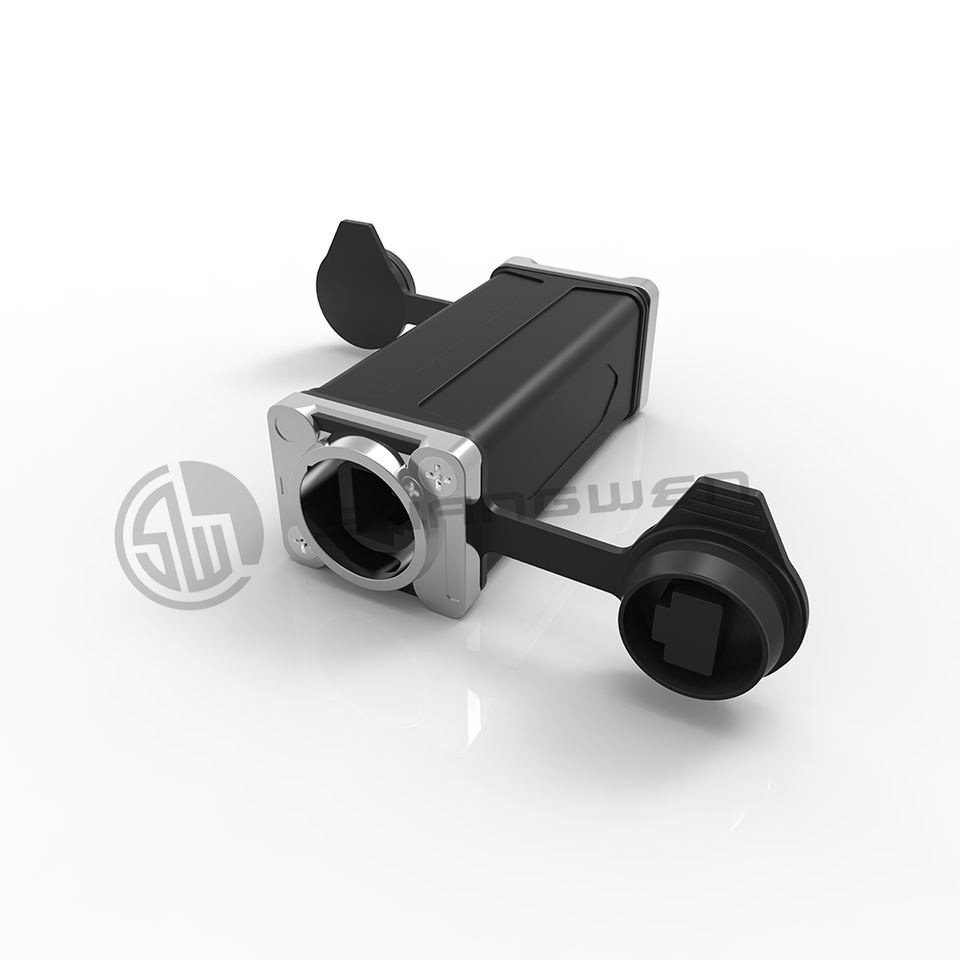

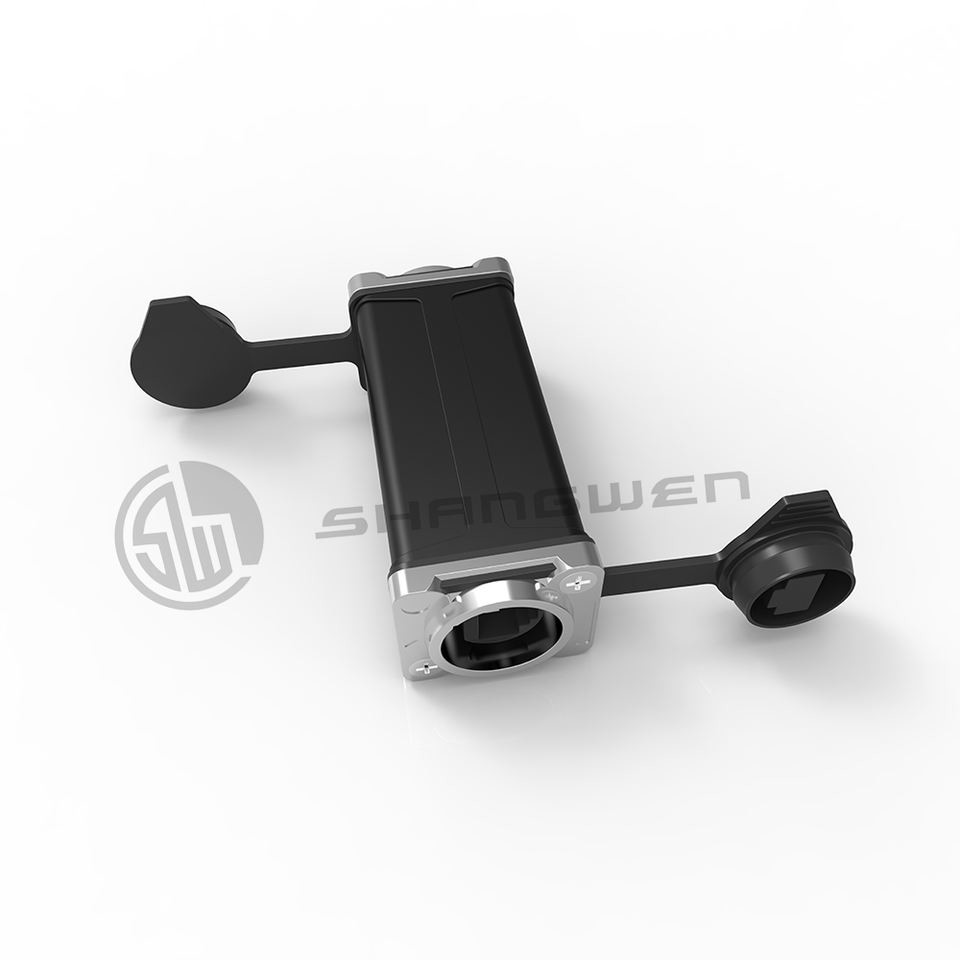

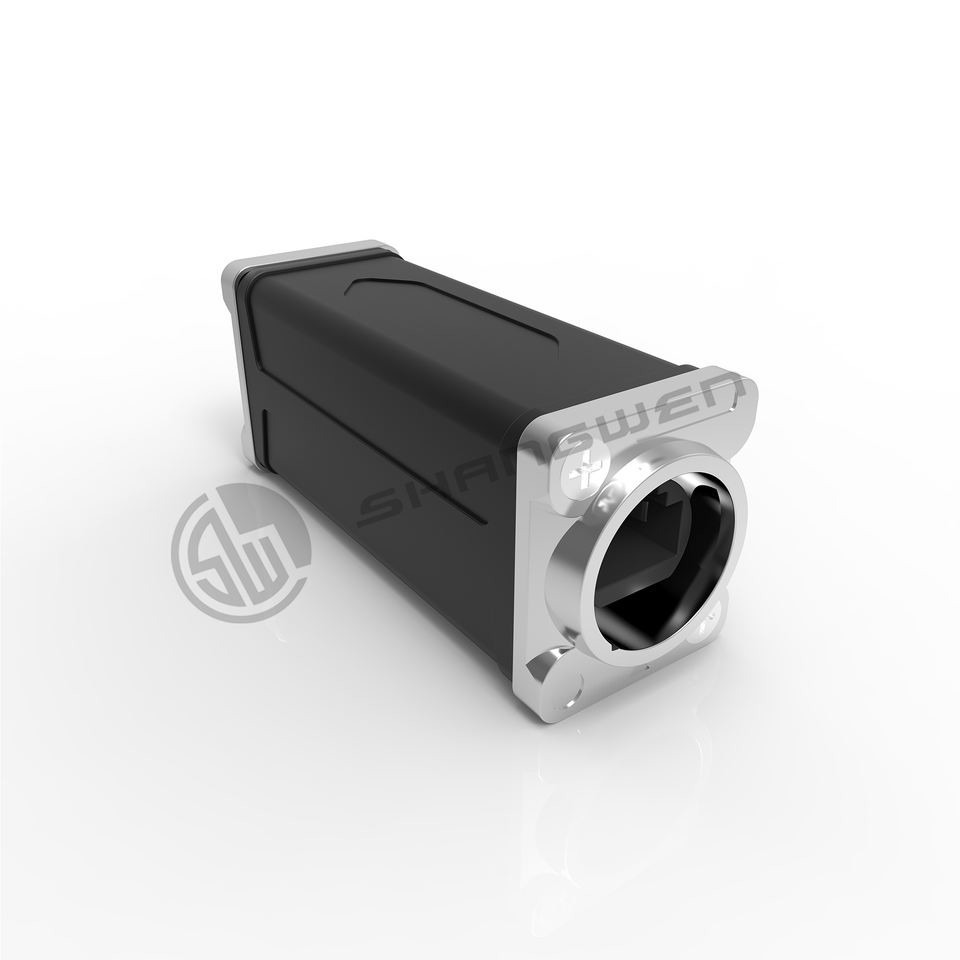

Rj45 Adaptor Button Signal Connector Accessories For Cable Extensions

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number Outdoor button signal connector
Minimum Order Quantity 2 pieces
Price $3.20/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Signal Connector Accessories Type Adapter
Gender Female Industrial Electronics Accessories
Frequency Range 1 - 100 MHz
Highlight

Rj45 Adaptor Connector Accessories

,

Signal Connector Accessories

,

Adapter Power Connector Accessories

Leave a Message
Product Description

Outdoor Button Female Male Plug Signal Rj45 Adaptor Connector For Cable Extensions





Products Description
etherCON feedthrough coupler for cable to cable extensions


Outdoor button signal connector

Approved latch lock system
☑ Accommodates NE8MC* or any standard RJ45 plug
NE8FF coupler (adapter) for cable to cable mating – use with NE8MC carriers or any standard RJ45 plug

1. Product parameters
Connection Type
Coupler (adapter)
Gender
Female
2. Electrical parameters
Contact resistance
< 10 mΩ
Dielectric strength
1 kVdc
Frequency Range
1 - 100 MHz
Insulation resistance
> 0.5 GΩ
Rated current per contact
1,5 A
Rated voltage
< 50 V
Standards compliant
TIA/EIA 586B, IEC11801
3. Mechanical parameters
Insertion force
≤ 20 N
Pull out force
≤ 20 N
Service life
> 1000 mating cycles
Locking device
Latch lock
4. Material and environmental parameters
Contacts
Bronze (CuSn8)
Contact plating
0.2 µm Au over Ni plating
Inner core
PBTP 15 % GR
Shell
AlMgSi 0.5, black plated
Clamping sleeve
CuZn35Pb2, tinned
Flammability
UL 94 HB
Temperature range
-30 °C to +80 °C
5. Assembly reference
Rj45 Adaptor Button Signal Connector Accessories For Cable Extensions 0
Rj45 Adaptor Button Signal Connector Accessories For Cable Extensions 1
Rj45 Adaptor Button Signal Connector Accessories For Cable Extensions 2
Rj45 Adaptor Button Signal Connector Accessories For Cable Extensions 3

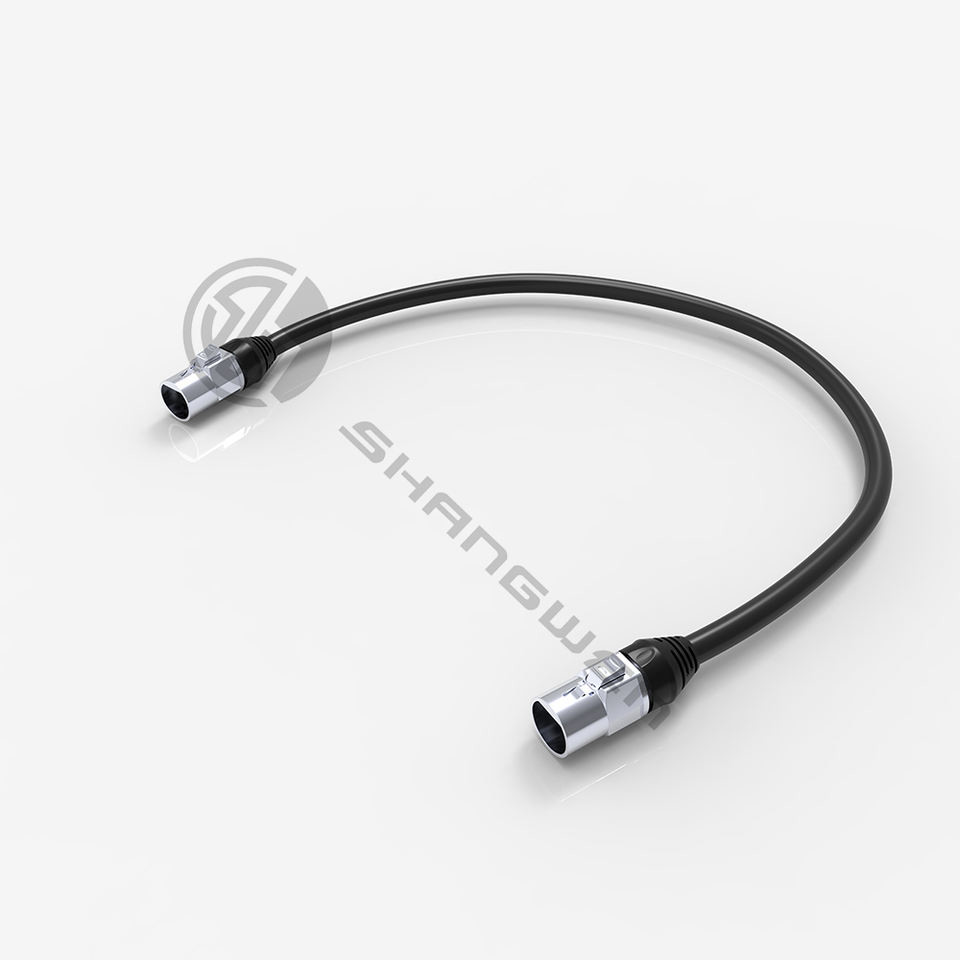

Application area
Rj45 Adaptor Button Signal Connector Accessories For Cable Extensions 4
Company Information



The company has set up a connector factory in Ningbo and a finished wiring harness processing factory in Shenzhen. The monthly output of finished wiring harness can reach 500,000 pieces and the monthly output of connector canreach 300,000 sets.
