Indoor Connector Accessories Signal Adapter Coupler For Linking Internet Cables Rj45 Port

Place of Origin China
Brand Name Shang Wen
Certification Rohs
Model Number SW8XX
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cable Connector Accessories Gender Female
Shell Material Polyamide Shell Plating Pearl Cb
Conductor Material Bronze Connecting Mode Latch Lock
Transmission RJ45/Cat5E Chassis Shape D-shape
Application Adapter
Highlight

Indoor Connector Accessories

,

Rj45 Port Connector Accessories

,

Signal Adapter Coupler

Leave a Message
Product Description

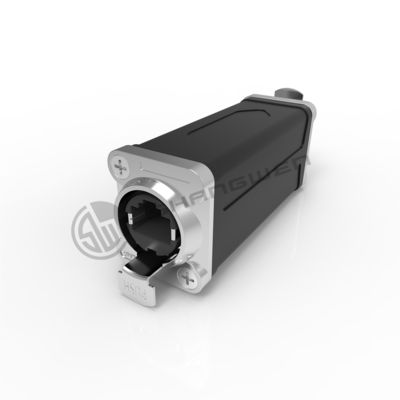

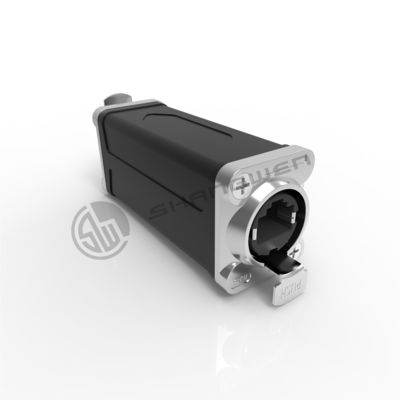

Indoor Use Signal Coupler Adapter For Linking Internet Cables Rj45 Port







SW8XX

- EtherCON RJ45 feedthrough coupler for cable extensions
-  Accommodates SW8MC-A-2 or any standard RJ45 plug
- The adapter offers the approved latch lock system
- The D-shape adapters are problem solvers for various intermating problems for professional and semi-professional applications

Indoor Connector Accessories Signal Adapter Coupler For Linking Internet Cables Rj45 Port 0

Technical parameters

- Electrical parameters

Rated current   1.5A
Rated voltage 50V
Contact resistance ≤10mΩ
Dielectric strength

1000V DC

Insulation resistance

>0.5GΩ

Transmission performance CAT5E

- Mechanical parameters

Service life >1000 times
Insertion force ≥20N
Locking device Latch lock

-Material and environmental parameters

Shell  Zinc diecast
Shell plating Pearl Cb
Conductor Bronze
Conductor surface Au
Temperature range -30°C~80°C
IP grade IP20



Product Profile

Indoor Connector Accessories Signal Adapter Coupler For Linking Internet Cables Rj45 Port 1

Indoor Connector Accessories Signal Adapter Coupler For Linking Internet Cables Rj45 Port 2

Indoor Connector Accessories Signal Adapter Coupler For Linking Internet Cables Rj45 Port 3

Packing
Indoor Connector Accessories Signal Adapter Coupler For Linking Internet Cables Rj45 Port 4

FAQ

1. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.
2. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
3. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.
4. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

5. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.

6. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
