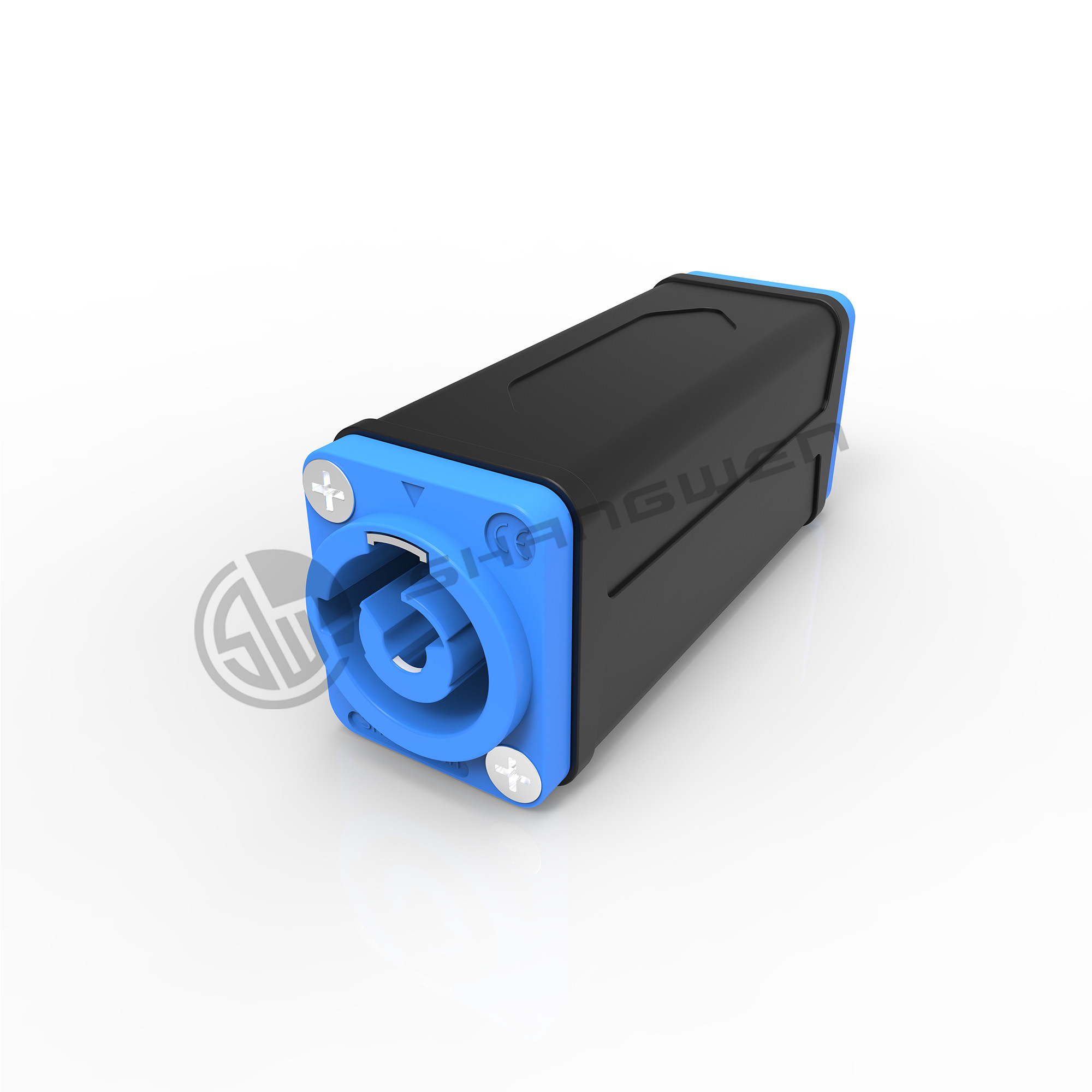

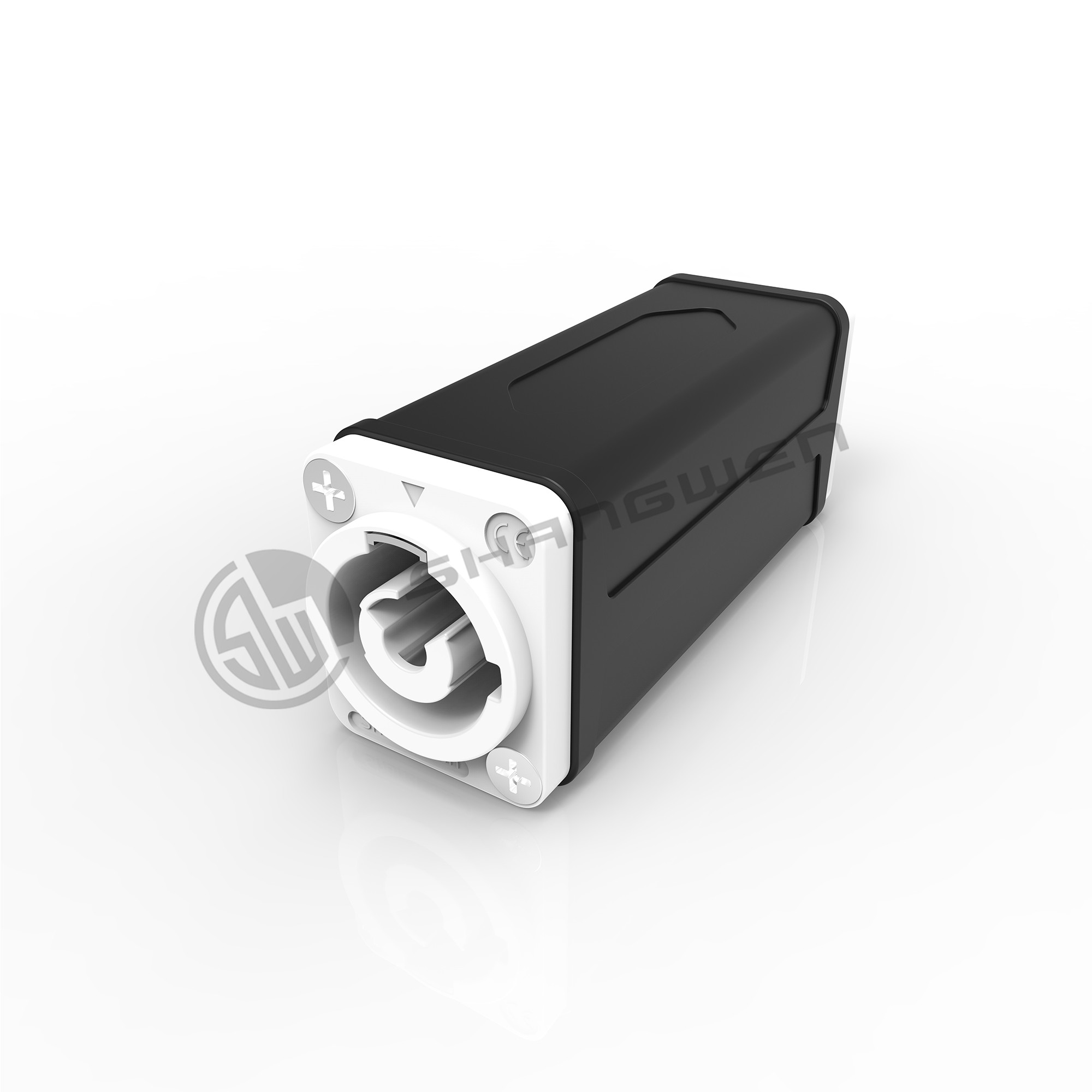

IP20 Connector Accessories Male Power Cable Coupler Adapter SW3ZB / SW3ZW

Place of Origin China
Brand Name Shang Wen
Certification Rohs
Model Number SW3ZB/SW3ZW
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Power Cable Adapter Application Adapter
Gender Male Shell Material Polyamide
Conductor Material Cu Alloy Type Of Terminals Soldering Type
Connecting Mode Fast Rotating Connection Color Blue/Power-in White/Power-out
IP Grade IP20
Highlight

IP20 Connector Accessories

,

Male Power Cable Coupler

,

Male Power Cable Adapter

Leave a Message
Product Description



Indoor Use Power Coupler Adapter For Linking Power Cables Power In Out





SW3ZB / SW3ZW

PowerCON SW3FCA (power in) - powerCON SW3FCB (power out), this coupler for linking power cables with SW3FCA & SW3FCB.

The powerCON is a locking 3 conductor equipment AC connector with breaking capacity using contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.



IP20 Connector Accessories Male Power Cable Coupler Adapter SW3ZB / SW3ZW 0



Technical parameters

- Mechanical parameters


Service life >1000 times
Type of terminals Soldering type terminals


- Electrical parameters



Rated current 16A
Rated voltage 250V AC
Contact resistance ≤3mΩ
Dielectric strength

4000V DC

Insulation resistance

>1000GΩ


- Material and environmental parameters



Shell  Polyamide(PA 6.6 30%GR)
Conductor Cu alloy
Conductor surface Ag
Flame-retardant grade UL94-V0
Temperature range -30°C~80°C
IP grade IP20



Product Profile

IP20 Connector Accessories Male Power Cable Coupler Adapter SW3ZB / SW3ZW 1

IP20 Connector Accessories Male Power Cable Coupler Adapter SW3ZB / SW3ZW 2

IP20 Connector Accessories Male Power Cable Coupler Adapter SW3ZB / SW3ZW 3

IP20 Connector Accessories Male Power Cable Coupler Adapter SW3ZB / SW3ZW 4

Packing
IP20 Connector Accessories Male Power Cable Coupler Adapter SW3ZB / SW3ZW 5

FAQ

1. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.
2. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

3. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
4. What are the shipping ways you can offer?
A: Do your products come with warranty?
5. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
