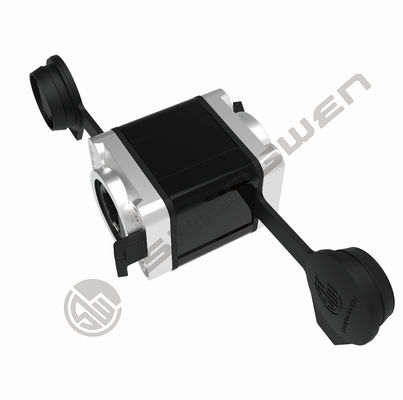

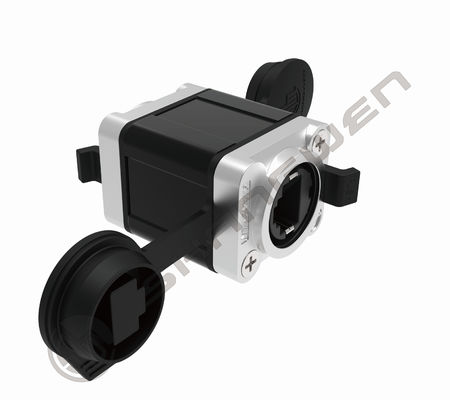

Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector

  • Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector
  • Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector
  • Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector
Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW8X2-ND
Minimum Order Quantity 5 pieces
Price CN¥48.61/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Level Ip65 Type Adapter, Adapter
Application LED Light, Automotive, Wire Connections, Power, Audio & Video Gender Female
Industrial Electronics Accessories Name Waterproof RJ45 Network Couplers Connector
Logo Printing Can Be Customized
Highlight

Cat5e Network Power Ethercon RJ45 Connectors

,

Outdoor Waterproof Ethercon RJ45 Connectors

,

Female Adapter Ethercon RJ45 Connectors
Leave a Message
Product Description
Products Description
etherCON feedthrough coupler for cable to cable extensions

For the signal conversion problem encountered in the signal transmission, this product can ensure the stable connection of the signal in the temporary state.
For various conversion problems encountered in current transmission, this product can ensure stable connection of thecircuit in the temporary state.
Omit the traditional docking connector, meet the requirements of the cross connection mode. Protection level can reach lP65 with the waterproof gasket.


Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 0
SW8X2-ND
Outdoor signal adapter connector


☑ Versatile with SW8MC-A-2N or any standard RJ45 connector
☑ The traditional mating connector is omitted and the cross-connection method is satisfied
☑ For the signal conversion problems encountered in signal transmission, this product can ensure the stable connection of the signal in a temporary state
☑ Complies with TIA/EIA568 BandISO/IEC11801 transmission standard for CAT5e

* RJ45 feedthrough coupler for linking cables
* Shorter length and more exquisite compact design
* Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standard
* Very lightweight, fast and stable signal transmission
* Supports up to 100 MHz or 1 Gigabit network speeds
* Zinc diecast housing
* Gold-plated contacts
* Latch lock
1.Product parameters
Connection Type
Coupler (adapter)
Gender
Female
2.Electrical parameters
Contact resistance
< 10 mΩ
Dielectric strength
1 kVdc
Frequency Range
1 - 100 MHz
Insulation resistance
> 0.5 GΩ
Rated current per contact
1,5 A
Rated voltage
< 50 V
Standards compliant
TIA/EIA 586B, IEC11801
3.Mechanical parameters
Insertion force
≤ 20 N
Pull out force
≤ 20 N
Service life
> 1000 mating cycles
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Bronze (CuSn8)
Contact plating
0.2 µm Au over Ni plating
Inner core
PBTP 15 % GR
Shell
AlMgSi 0.5, black plated
Clamping sleeve
CuZn35Pb2, tinned
Flammability
UL 94 HB
Temperature range
-30 °C to +80 °C
5.Assembly reference
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 1
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 2

Application area
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 3
Company Information
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 4
Patent & Certification
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 5
Exhibition activities
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 6
Packaging reference
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 7
Payment and logistics
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 8
FAQ
Outdoor Waterproof Ethercon RJ45 Connectors Female Adapter for Cat5e Network Power Ethernet Cable Extension Connector 9
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
