Power Supply Waterproof Push-pull Self-locking Yellow Industrial Male Socket Power Connector M19 Push Lock 3 Pin Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWM19-3ZYS-E3
Minimum Order Quantity	10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application	Industrial	Contact Material	Copper
Rated Current	20 A	Rated Voltage	250 V
Gender	Male	Housing Material	PA66
Type	SW19 Self-locking Series	Industrial Electronics	Accessories
Shell,insulating Parts	High -performance Engineering Plastics	Material Of Copper Needles	Copper Alloy
Highlight	Self-locking Power Connector , Industrial Power Supply Connector , Push-pull Power Supply Connector

Leave a Message

Product Description

Products Description

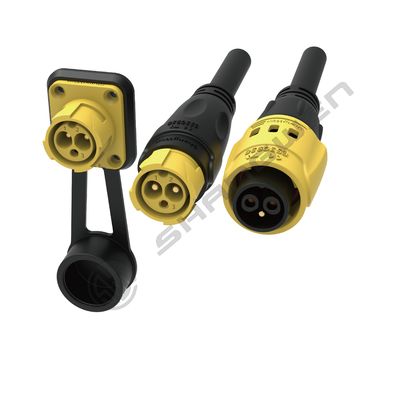

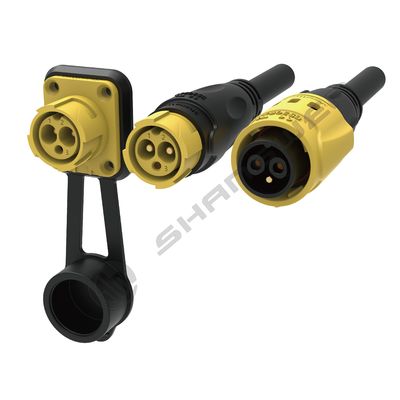

SW19 Self-locking series-3 Pin connector

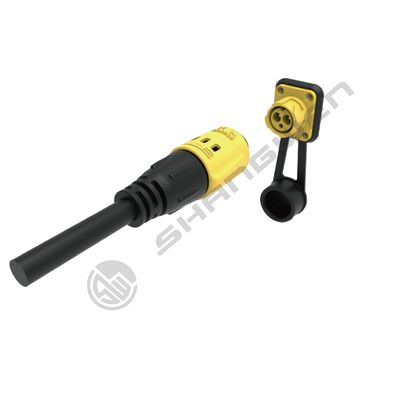

M19 series is an industrial connector, which includes male plug, female plug and male socket.

There are two locking methods:

1. Push-pull self-locking connection

2. Plastic screw connection, both locking design is very reliable.

The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.

The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

Model :

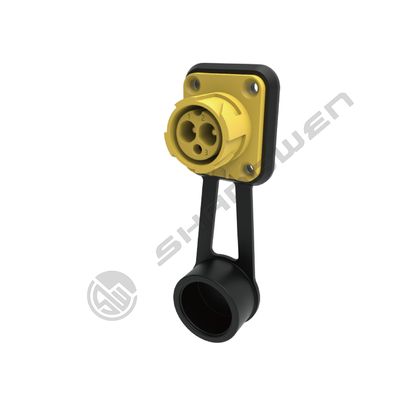

SWM19-3ZYS-E3（output）

☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP65

1.Electrical parameters

Contacts NO.	3 pin
Rated current	20A
Rated voltage	250V AC
Withstand voltage	1500V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2.Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Cable size	0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals	Screw terminal and soldering terminal available

3.Material and environmental parameters

Shell	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ2.4mm
Protection degree	IP65
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃

4.Size reference (unit /mm)

Our power connector is a high-performance product designed to meet the needs of modern industrial and outdoor equipment, featuring
the following outstanding characteristics:
1. IP65 waterproof rating: Exceptional waterproof and dustproof performance ensures stable operation in outdoor or humid environments.
2. Supports 20A current transmission: High current capacity meets the power requirements of heavy-duty equipment.
3. Self-locking structure: Equipped with an intelligent self-locking design to ensure a secure connection and prevent accidental disconnection, enhancing safety.
4. Easy assembly: Optimized structure design for easy installation and removal, significantly improving work efficiency.
5. Multiple certifications: Certified by multiple countries, meeting international standards to ensure quality and safety.
6. Durable and robust: Built with high-quality materials, offering excellent corrosion resistance and impact strength, suitable for various challenging environments.
This power connector is widely used in industrial automation, heavy-duty equipment, and outdoor applications, providing a
reliable, stable, and efficient power connection solution
