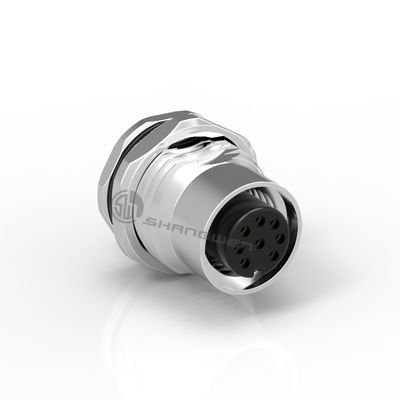

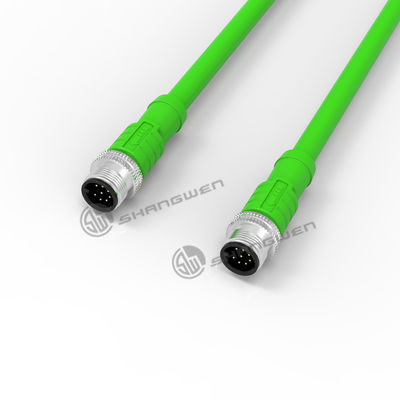

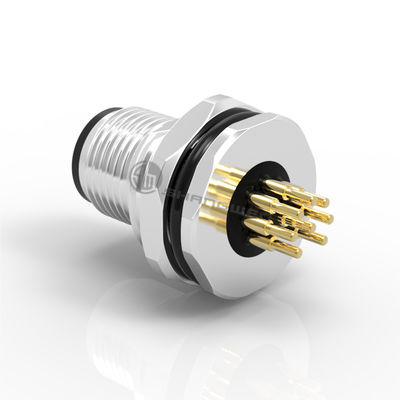

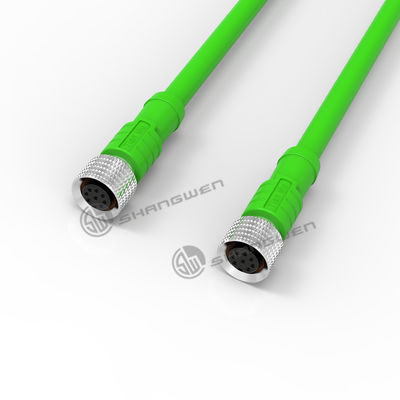

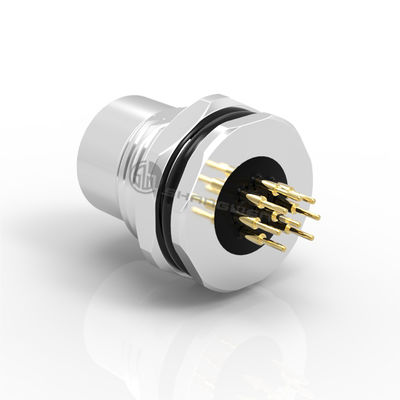

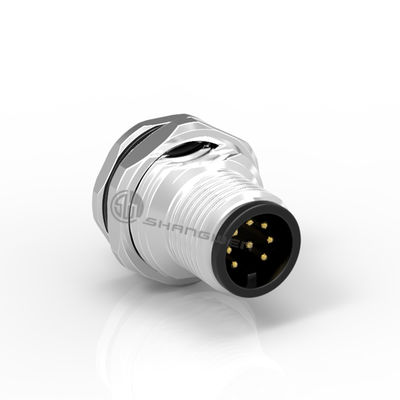

Customize Waterproof Phoenix M12 Cable 2 3 4 5 6 8 Pin Male to Female M12 Connector Cable With Wire

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	8 Pin Male And Female Plug, M12
Minimum Order Quantity	2 pieces
Price	$5-7 / piece

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application	Automotive, Industrial Applications	Gender	Male And Female, Male
Contact Number	8pin	IP Degree	IP67
Pin	CNC Brass Pin	Rated Current	3A-5A
Type	M12 X Code Connector	Color	Silver
Connector Type	Straight And Angled
Highlight	Waterproof Phoenix M12 Cable , Phoenix M12 Connector Cable

Leave a Message

Product Description

Products Description

SW-M12 connector series-male and female plug

M12 connector series is an industrial connector. With waterproof, oil resistance, cold resistance, stable performance, high efficiency and fast connection, etc. Widely used in photoelectric switches, sensors and various industrial wiring systems. Since its inception has been in outdoor light box, construction machinery, steel production equipment, power equipment, mining machinery, ship machinery, automotive equipment, production automatic equipment, temperature sensors, hydraulic machine tools, sensors, solenoid valves, instrumentation, pressure transmitters and other fields have excellent performance.

8 Pin Male And Female Plug

☑Quick, simple self locking system
☑Connect reliably）
☑Small size of product）
☑Multiple cores -2,3,4,5,6,8 pin support multiple application scenarios）
☑waterproof rating IP67
☑With shielding function
☑All metal material

1.Electrical parameters

Contacts NO.	8 Pin
Arch	5mm/1000mm max
Twist	45°/1000mm max
Feature	The appearance is not allowed to have bad phenomena such as crushing, dirt, mold marks and so on

2.Material and environmental parameters

Rubber core	PA66 plus 15% fiber
Male terminal	Copper alloy bur
Female terminal	Copper alloy stamping
Surface treatment(Terminal)	Overall Ni plating: 80-120u"(Min) Gold-plated common U
Maximum allowable burr	0.05mm
Feature 1	The electroplating surface shall not be oxidized, yellowed, blackened, dirty, scorched and other undesirable phenomena
Feature 2	The shell should be bent back and forth by 90 degrees without peeling on the electroplated surface

3.Finished drawing reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
