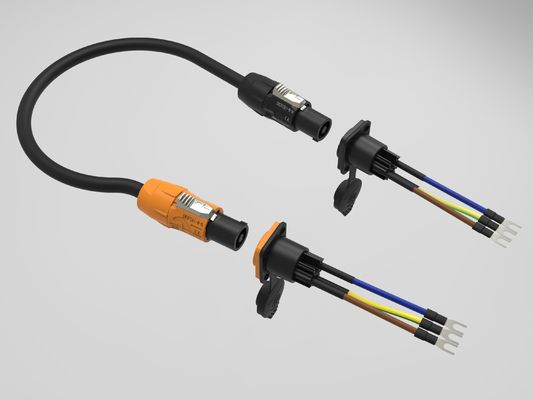

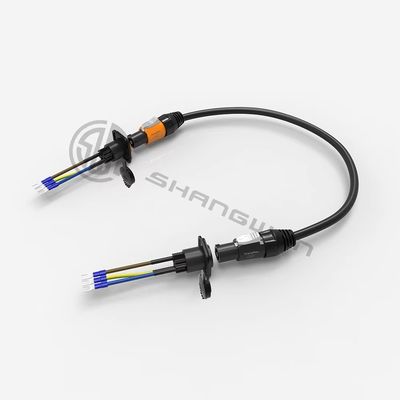

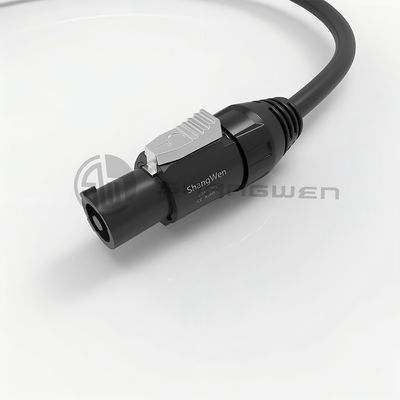

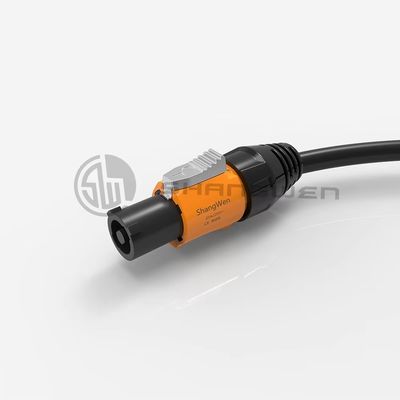

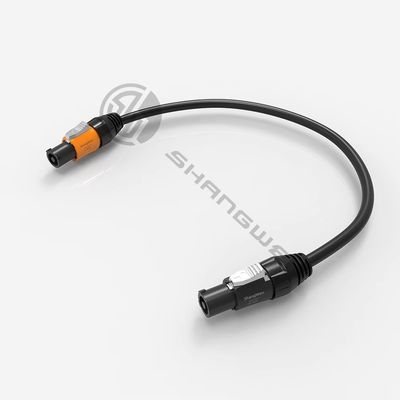

Outdoor Orange Black Powercon Cable IP65 3 Pole Power In/Out Connectors Female for LED Screen Copper Conductor Industrial

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	power connector cable
Minimum Order Quantity	10 pieces
Price	$2.05-2.15 / piece

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Conductor Material	Copper	Insulation Material	PVC
Application	Industrial	Jacket	Rubber
Type	Low Voltage	Industrial Electronics	Commercial Display
Highlight	Outdoor Black Powercon Cable , Female 3 Pole Powercon Connectors , Outdoor IP65 Powercon Cable

Leave a Message

Product Description

Products Description

3*2.5mm/3*1.5mm Powercon cable

Outdoor power connector cable

☑Lockable 3 pole single phase equipment (AC) connector
☑High current capacity, rated at 20 A / 250 V ac
☑Colour coded for easy identification, powerCON offers power-in and power-out (grey) versions with different keying to avoid the possibility of intermating
☑Fast and easy locking system ☑Extremely robust and reliable ☑Excellent cable retention ☑UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360) ☑New latch design for easier handling and secure locking

1.Product parameters

Product	Powercon cable
Connection Type	Screw
Gender	Female

2.Electrical parameters

Contact resistance	≤ 3 mΩ
Dielectric strength	4 kVdc
Insulation resistance	> 0.1 GΩ (IEC 68-2-30)
Rated current per contact	20 A rms
Rated voltage	250 V ac

3.Mechanical parameters

Service life	＞1000 mating cycles
Locking device	Quick lock

4.Material and environmental parameters

Contact plating	2 µm Ag
Lock material	Steel Ck67
Shell	Polyamide(PA 6.6 30 % GR)
Contact	Bronze (CuNi1Si0.2)
Flame-retardant grade	UL 94 V-0
Protection class	IP65(After connecting)
Safety requirements	EN/IEC 61984
Solderability	Complies with IEC 68-2-20
Temperature range	-30℃to +80℃

5.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
