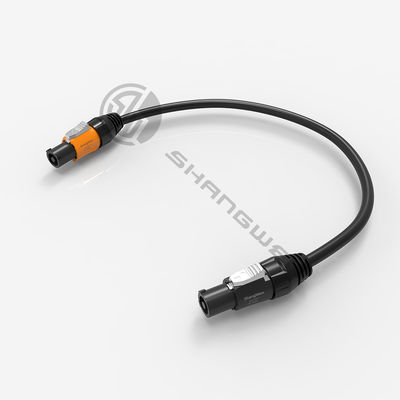

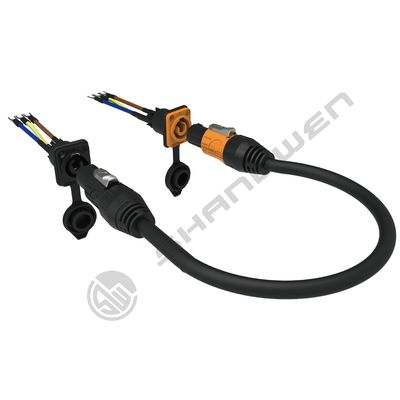

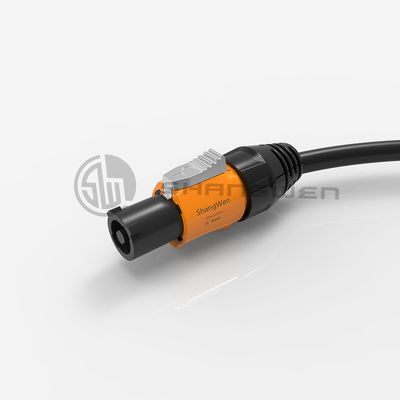

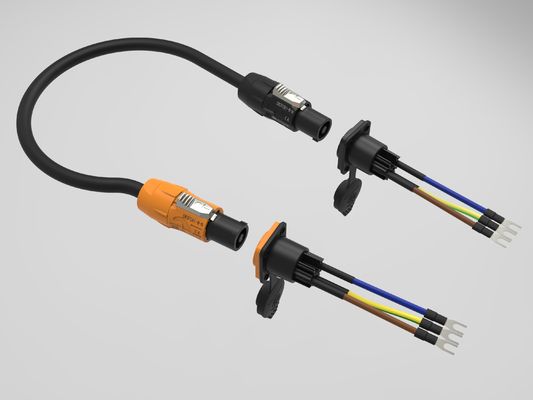

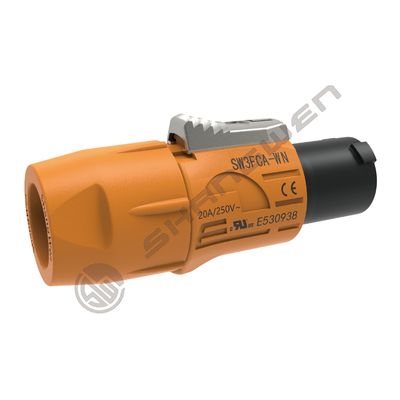

Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	power connector cable
Minimum Order Quantity	10 pieces
Price	$4.71-6.35 / piece

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Conductor Material	Copper	Insulation Material	PVC
Application	Industrial	Jacket	Rubber
Type	Low Voltage	Industrial Electronics	Commercial Display
Highlight	Female Chassis Socket Powercon Connector , Outdoor IP65 Powercon Connector , 20A LED Powercon Connector

Leave a Message

Product Description

Products Description

3*2.5mm/3*1.5mm Powercon cable

Outdoor power connector cable

☑Lockable 3 pole single phase equipment (AC) connector
☑High current capacity, rated at 20 A / 250 V ac
☑Colour coded for easy identification, powerCON offers power-in and power-out (grey) versions with different keying to avoid the possibility of intermating
☑Fast and easy locking system ☑Extremely robust and reliable ☑Excellent cable retention ☑UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360) ☑New latch design for easier handling and secure locking

1.Product parameters

Product	Powercon cable
Connection Type	Screw
Gender	Female

2.Electrical parameters

Contact resistance	≤ 3 mΩ
Dielectric strength	4 kVdc
Insulation resistance	> 0.1 GΩ (IEC 68-2-30)
Rated current per contact	20 A rms
Rated voltage	250 V ac

3.Mechanical parameters

Service life	＞1000 mating cycles
Locking device	Quick lock

4.Material and environmental parameters

Contact plating	2 µm Ag
Lock material	Steel Ck67
Shell	Polyamide(PA 6.6 30 % GR)
Contact	Bronze (CuNi1Si0.2)
Flame-retardant grade	UL 94 V-0
Protection class	IP65(After connecting)
Safety requirements	EN/IEC 61984
Solderability	Complies with IEC 68-2-20
Temperature range	-30℃to +80℃

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
