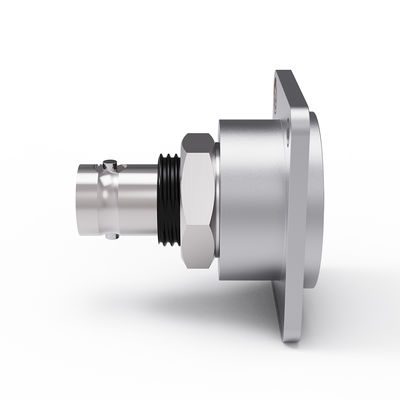

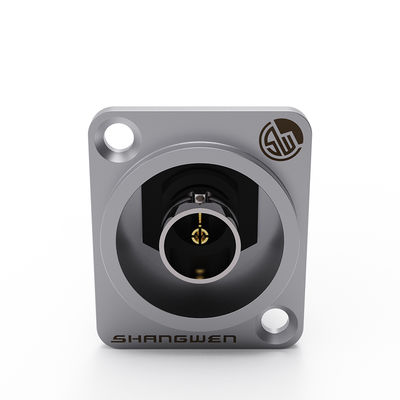

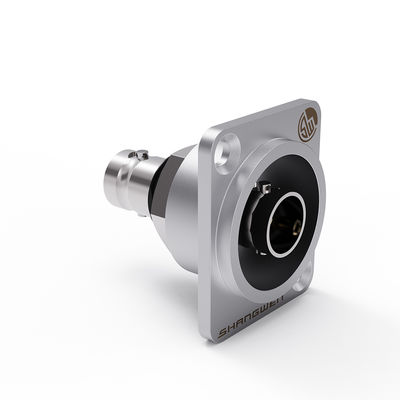

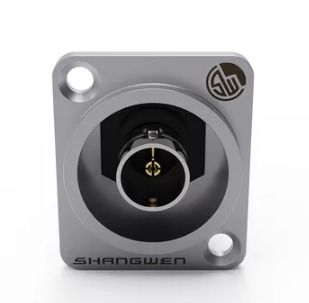

Lightweight Industrial BNC Video Connector Female BNC Panel Mount Chassis Socket Adapter Welding Free Industrial BNC Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWJSH-BFF
Minimum Order Quantity	20 pieces
Price	$1.58-2.20 / piece

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application

Industrial

Gender

Male/Female

Industrial Electronics

Accessories

Highlight

Chassis Socket Industrial BNC Connector

Welding Free Industrial BNC Connector

Leave a Message

Product Description

Products Description

Industrial BNC Video Connector Electrical BNC Plug Connector Lightweight

BNC Video Connector is a high-performance, cost-effective BNC Panel Mount Connector Adapter. It is designed for use in radio frequency (RF) applications. The connector is constructed of nickel-plated brass and features a solder-type BNC micro coaxialcompression connector. The BNC Video Connector is rated for operating temperatures of -40°C to +85°C and has an impedance of 50Ohms. It has excellent electrical and mechanical properties, and is also suitable for use in storage temperatures of -40°C to+85°C. This BNC Video Connector is perfectly suited for use in high-frequency transmission applications such as video, audio, LAN,and CATV systems.

Model : SWJSH-BFF

☑ Product Name: BNC Video Connector

☑Connector A: BNC male plug connector

☑Connector B: BNC micro coaxial compression connector

☑Frequency Range: DC To 4GHz

☑Material: Metal

☑ Durability: 500 Cycles

1.Electrical parameters

Rated Current	16A rms
Insulation Resistance	50V AC
Insulation Resistance	＞5GΩ
Dielectric Strength	0.5 KVdc

2.Mechanical parameters

Service life	>2,000 Mating Cycles
Power line	Φ4-7.0mm
Insertion force	＜25N

3.Size reference (unit /mm)

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
