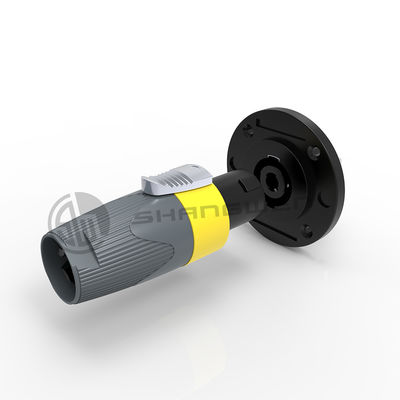

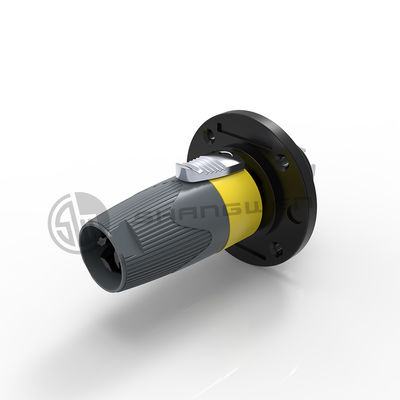

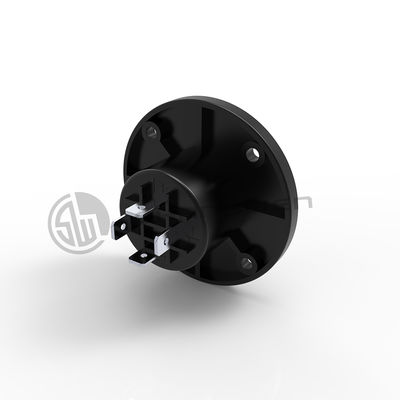

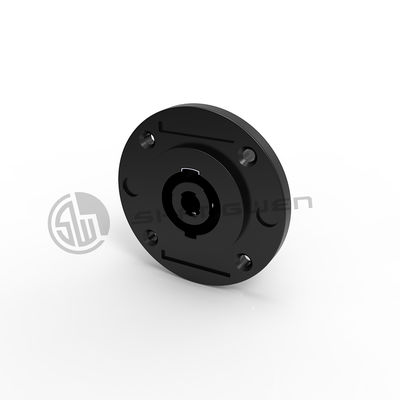

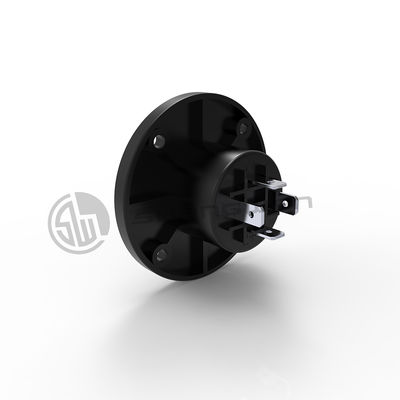

4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Audio & Video | Rated Current | 25A |
|---|---|---|---|
| Gender | Male | Shape | Round |
| Type | Loudspeaker | Industrial Electronics | Accessories |
| Highlight | Round Shape Loudspeaker Connector,Latch Lock Loudspeaker Connector,Engineering Plastic Loudspeaker Connector |
||
Product Description
Products Description
4Pin Loudspeaker chassis -engineering plastics material
Model：SWM4S-2ZY
☑Metal insert in locking area
☑Glass reinforced materials make it extremely robust and dependable
☑Accurate twist lock latching system ☑Airtight design - optimized for speaker applications
1.Product parameters
Connection Type | Speaker |
Gender | Male |
2.Electrical parameters
Contact resistance | ＜2mΩ |
Dielectric strength | 2.8kVdc |
Insulation resistance | > 1.0GΩ (initial) |
Rated current per contact | 25A |
Rated voltage | 250 V ac |
3.Mechanical parameters
Service life | ＞5000 mating cycles |
Chassis shape | Circular |
Layout | four thru holes |
Locking device | Latch lock |
4.Material and environmental parameters
Contacts | Cu alloy |
Contact plating | Ag |
Shell | Polyamide (PA 6 30 % GR) |
Flame-retardant grade | 94 V-0 |
Temperature range | -30℃to +80℃ |
5.Size reference (unit /mm)
6.Assembly reference
