Professional Speaker Powercon Wire Connectors 40a Panel Audio Signal Female Plug 4 Pin 4Pins Loudspeakers Plastic Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWF4S-2TJY
Minimum Order Quantity	10 pieces
Price	$1 / piece

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application	Audio & Video	Rated Current	40A
Gender	Female	IP Level	IP40
Type	Loudspeaker	Industrial Electronics	Accessories
Highlight	Panel Audio Signal 40a Connector , 40a Panel Loudspeakers Connector , Audio Signal Loudspeakers Connector

Leave a Message

Product Description

Products Description

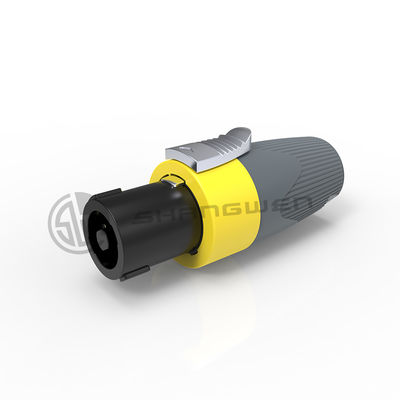

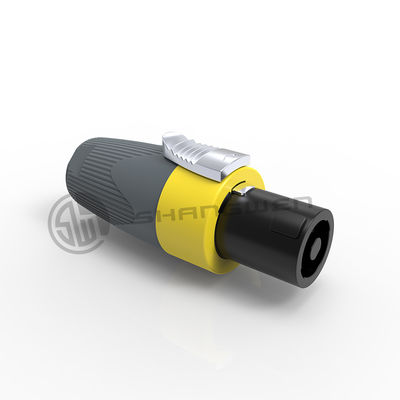

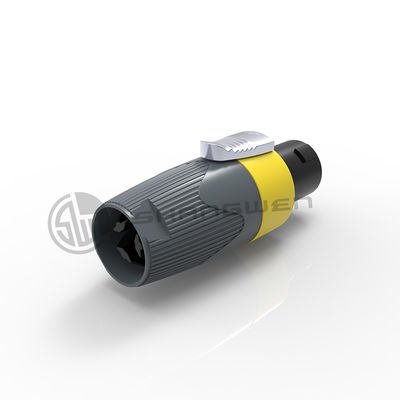

4Pin Loudspeaker plug -engineering plastics material

Model：SWF4S-2TJY

☑Current rating 40 A rms continuous
☑Up to 50 A audio signal, duty cycle 50%
☑Only 3 parts, easy to assemble
☑High impact materials - long-lasting and reliable ☑Easy and extremely precise locking system "Quick Lock ☑Improved grip on latch ☑1 piece strain relief, chuck for 7 to 14.5 mm cable O.D. ☑Improved screw-type termination for highest pull-out force

1.Product parameters

Connection Type	Speaker
Gender	Female

2.Electrical parameters

Contact resistance	＜2mΩ
Dielectric strength	4kVdc
Insulation resistance	> 1.0GΩ (initial)
Rated current per contact	40A
Rated voltage	250 V ac

3.Mechanical parameters

Sign Cable O.D.	7-14.5mm
Cable retention	≥220N
Service life	＞5000 mating cycles
Wire size	4 mm²/6mm²
Wire size	12AWG/10AWG
Locking device	Latch lock

4.Material and environmental parameters

Contacts	Brass
Contact plating	Ag
Insert	PBTP 20% GR
Shell	PBTP 20% GR
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 HB
Temperature range	-30℃to +80℃

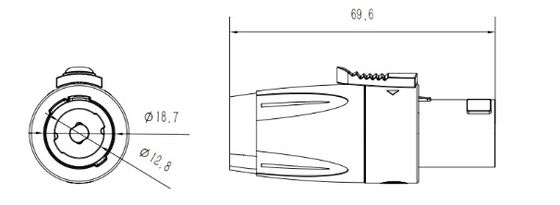

5.Size reference (unit /mm)

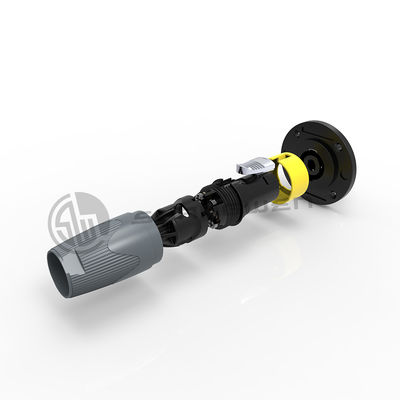

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
