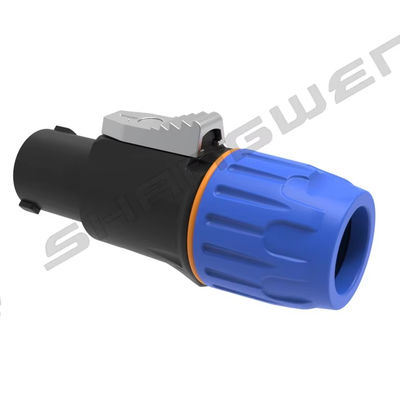

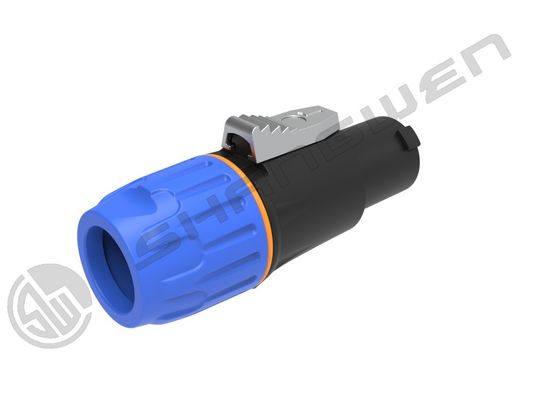

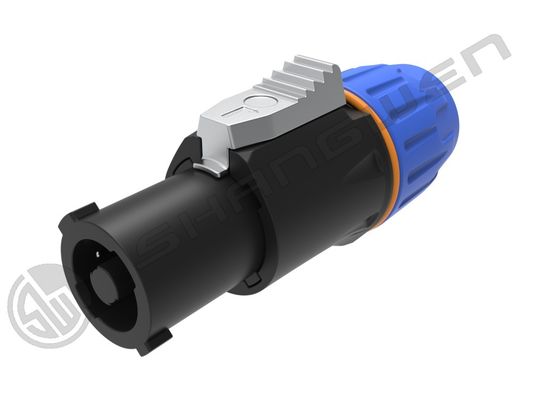

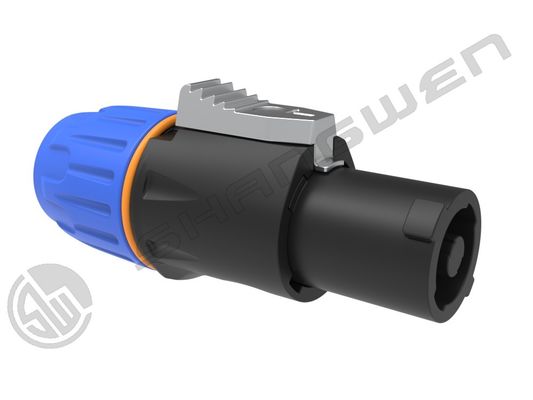

IP65 4-Pin Female Speaker Connector Glass Reinforced Alloy Nylon Housing with 3P Male for 6-15mm Cable Copper Rated Current 30A

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWF4S-2TF
Minimum Order Quantity	10 pieces
Price	$1.36 / piece

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application	Audio & Video	Rated Current	30 A
Gender	Female	Housing Material	Nylon
IP Level	IP65	Type	Loudspeaker
Industrial Electronics	Accessories
Highlight	Glass Reinforced 4-Pin Speaker Connector , 4-Pin Female Speaker Connector

Leave a Message

Product Description

Products Description

4Pin Loudspeaker plug-engineering plastics material

Model：SWF4S-2TF

☑Up to 30A rms current rating
☑Cable strain relief for 6-15mm cable O.D.
☑Glass reinforced material for insert and housing,long-lasting and dependable
☑Reliable and robust, easy and fast to assemble ☑Accurate and dependable twist lock latching system "Quick Lock" ☑User friendly latch design for easy handling

1.Product parameters

Connection Type	Speaker
Gender	Female

2.Electrical parameters

Contact resistance	≤3mΩ
Dielectric strength	4kVdc
Insulation resistance	> 1.0GΩ (initial)
Rated current per contact	30A
Rated voltage	250 V ac

3.Mechanical parameters

Sign Cable O.D.	6-15mm
Cable retention	≥220N
Service life	＞5000 mating cycles
Wire size	4 mm²
Wire size	12AWG
Locking device	Latch lock

4.Material and environmental parameters

Contacts	Brass
Contact plating	Ag
Insert	PBTP 20% GR
Shell	Polyamide (PA 6 30 % GR)
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 V-0
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
