Cat6a UTP Cable Cat6 UTP 24AWG RJ45 Copper LED Cord Copper Luminous 4p PVC LSZH Jacket Indoor LAN Ethernet Networking

Place of Origin	Guangdong, China
Brand Name	OEM/ODM
Certification	UL CE ROHS REACH
Model Number	SW-UR601G
Minimum Order Quantity	2
Price	$154

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	CAT 6A	Number Of Conductors	8
Jacket Material	PVC	Color	Black/blue
Connector	RJ45 Plug	Shield	UTP
Conductor	CCA BC	PLUG Insulation	PA66
Application	Networking Or Computer	Name	Luminous Cat6A Patch Cord Cable
Highlight	4p Cat6a UTP Cable , 4p UTP Cable , Copper Luminous UTP Cable

Leave a Message

Product Description

Products Description

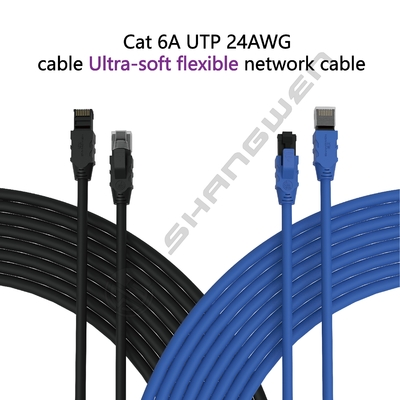

Roll Cat6A UTP Patch Cord Ethernet Cable

SHANGWEN's network cable is made of high quality, 100% pure copper free of oxygen and is open to any inspection.

The problem of 40% return loss in the current system has been improved through the continuous research of the technical department.Basically solve the problem of signal interrupt when the network cable is in use. Faster transmission efficiency can avoid the delay phenomenon in the picture transmission, and ensures that there is no delay in playing games during live and working. High - end precision instruments are used for conducting tests, and the conducting impedance is controlled within the standard range.

The LED lights on both ends of the patch cord can be turned on and off for more than 1,000 times. The LED light battery can last more than 500 hours. The replacement of the battery is easy. It requires no additional software and tools. The cable provides a clear and visible path to locate the two ends of the cable. Engineers and technicians are able to identify the location of the cable in a high-density cabinet, where it might contain numerous cables that have important functions and should not be moved by mistake. A simple press on the button will turn the LED lights on both ends at the same time.

Cable type	Cat6A / UTP
Length	Standard-1M / other lengths can be customized
_{Conductor material}	Multiple strands of copper wire 7 * 0.2mm BC pure oxygen-free copper Single strand copper wire 0.5mm BC pure oxygen-free copper Other size of the copper core can be customized CCA can be customized
Cable material	HOPE inner + flame retardant PVC outer
AWG	1.Standard-24AWG,26AWG,28AWG,30AWG etc size can be customized
Cable weight	31g / pcs (1M-bare wire）
Shielding	Unshielded twisted pair

Connector	50U”8P8C RJ45 Plug
Connector color	Transparent, black/other colors can be customized
Connector Weight	1.6g/pcs
Advantage	a. Special craft shrapnel design, repeated bending without breaking, better support for repeated fluidity use b.Three-prong widening, thickening and lengthening the chip to ensure full contact between the chip and the core c. Connector pure copper chip, processed by nickel plating and gold plating process, anti-oxidation, no blackening d. Connector's chip 50μm gold-plated, supports 100,000 times of repeated plug-and-plug use e.Connector's chip and wire core are precisely riveted, and the transmission is more stable

Characteristics

Insertion force	30N max.
Retention strength	8.3kg between jack and plug
Operating temperature	-20℃ to 80℃
Fluke	100% component test
Certification	CE/UL/FCC/RoHS
Guarantee	3 Years
MOQ	1.Standard configuration MOQ-100pcs 2. Needed to be customized MOQ-1000pcs
Logo	SHANGWEN or No logo/Other logos can be customized

Application area
