Metal 6.35 mm 6.35mm 1/4" Inch Mono Jack Male Plug, 2-Pole - Pack of 2, Plastic Grip Repair Jack TS Solder Audio Cable Connector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Plug | Application | Industrial |
|---|---|---|---|
| Gender | Male | Industrial Electronics | Accessories |
| Highlight | Audio Cable 6.35mm Jack Plug,Plastic Grip 6.35mm Jack Plug |
||
Product Description
Products Description

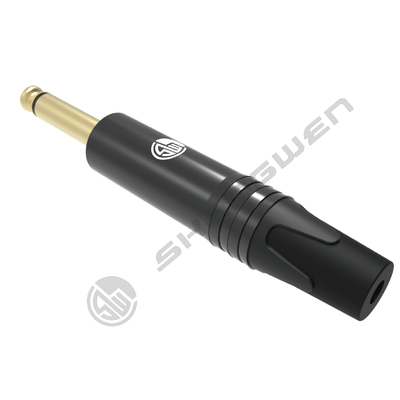

Metal 6.35 mm Jack Plug Through Hole Audio Jack Connector 2 Contact
6.35mm Jack Plug is a type of electrical connector, which is widely used in audio, video, and other applications. The plug is composed of a metal shell and two contacts, allowing it to securely and reliably connect two devices. It features a female 6.35mm jack to accept a male 6.35mm plug, and is designed with a dielectric strength of 1000V to ensure safe operation. The insulation resistance of the plug is up to 1000MΩ, ensuring excellent electrical insulation performance. This 6.35mm Jack Plug is an ideal solution for providing a stable connection between two devices.
Model : SW-TS106
☑ Gender: Male
☑Connector Type: 6.35mm mono Jack Plug
1.Electrical parameters
Features | mono |
Compatible | Speaker |
Insulation Resistance | ＞2GΩ |
Dielectric Strength | 0.5 KVdc |
2.Mechanical parameters
Service life | >1,000 Mating Cycles |
Power line | Φ3-8.0mm |
Type of terminals | Screw terminal and soldering terminal available |

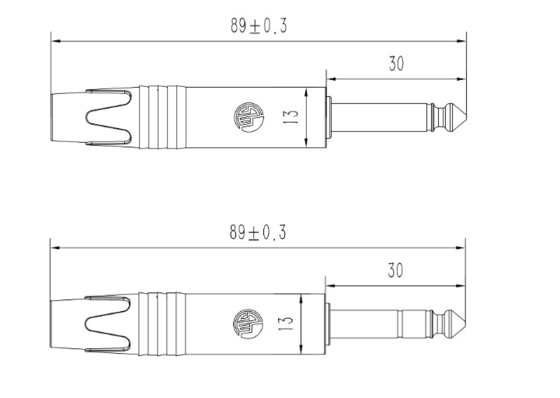

3.Size reference (unit /mm)
