4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SWM4S-2ZYM
Minimum Order Quantity 10 pieces
Price CN¥7.85/pieces 10-99 pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Level IP40 Type Loudspeaker
Application Audio & Video Gender Male
Industrial Electronics Accessories
Highlight

Male Socket Loudspeaker Connector

,

4 Pin Loudspeaker Connector

,

Square Terminal Loudspeaker Connector

Leave a Message
Product Description
Products Description
4Pin Loudspeaker chassis -engineering plastics material

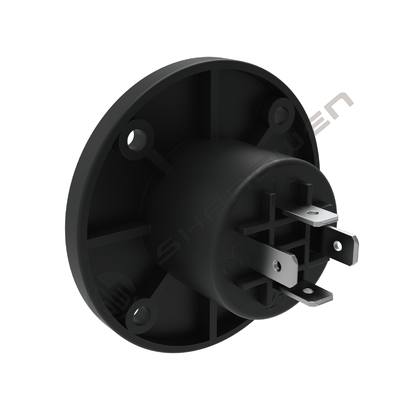

4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 0
Model:SWM4S-2ZYM
Precise keyway for secure mating
Metal insert in locking area
Glass reinforced materials make it extremely robust and dependable
Accurate twist lock latching system Airtight design - optimized for speaker applications

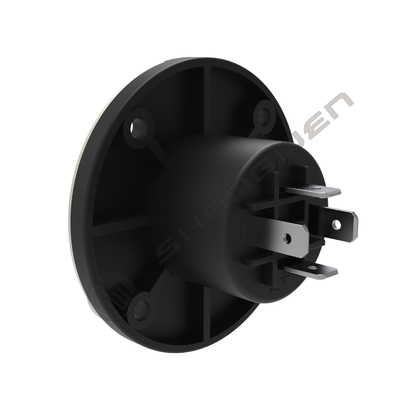

4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 1

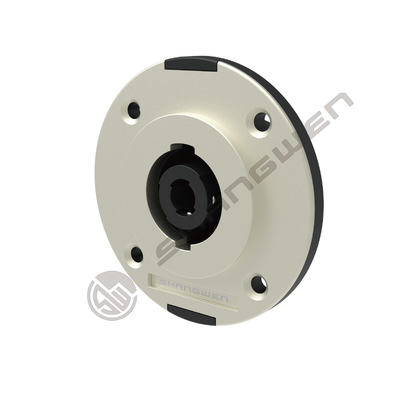

4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 2
1.Product parameters
Connection Type
Speaker
Gender
Male
2.Electrical parameters
Contact resistance
<2mΩ
Dielectric strength
2.8kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
25A
Rated voltage
250 V ac
3.Mechanical parameters
Service life
>5000 mating cycles
Chassis shape
Circular
Layout
four thru holes
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Ag
Shell
Polyamide (PA 6 30 % GR)
Flame-retardant grade
94 V-0
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)

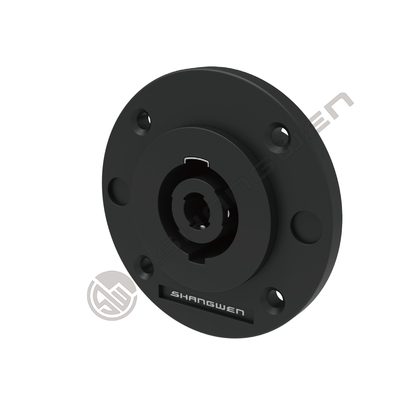

4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 3
6.Assembly reference
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 4
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 5
Application area
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 6
Company Information
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 7
Patent & Certification
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 8
Exhibition activities
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 9
Packaging reference
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 10
Payment and logistics
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 11
FAQ
4P Circular Connector Metal Male Socket with Square Terminal and Audio Video Female Speaker Jack 4 Pin Loudspeaker Connector 12
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
