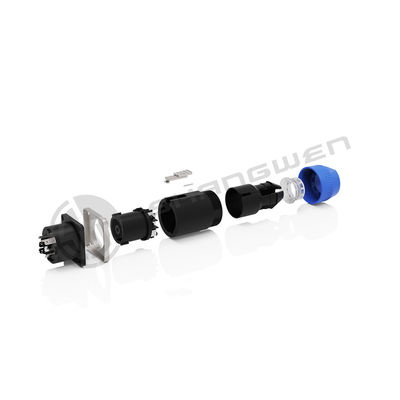

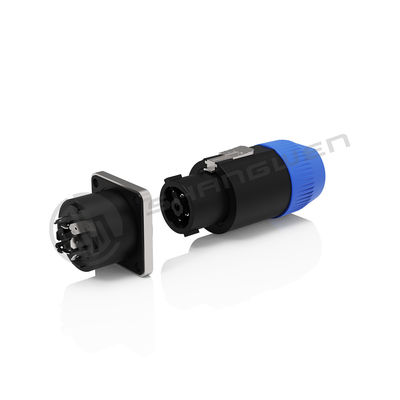

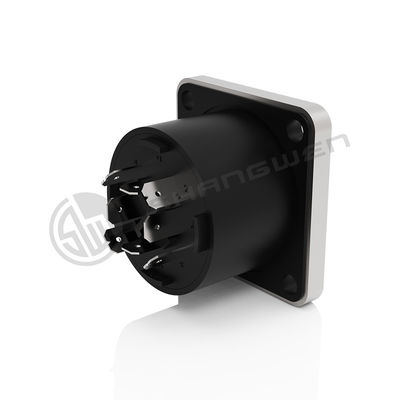

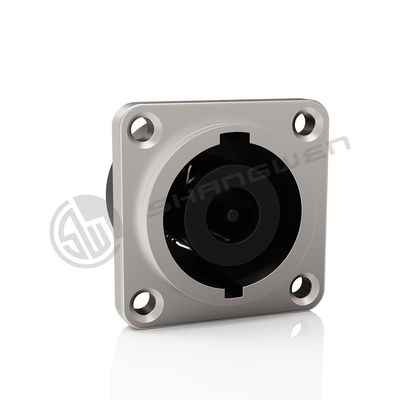

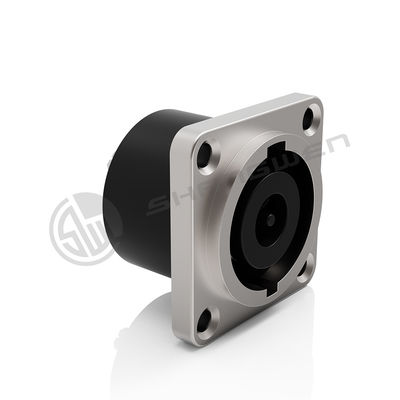

Quick Lock Rugged Durable 8 Pore 8 Pin Male Socket Chassis Speaker Connector Types

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWM8S-2ZM
Minimum Order Quantity	10 pieces
Price	CN¥13.53-22.78/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Loudspeaker Connector

Gender

Industrial Electronics

Accessories

Highlight

Quick Lock 8 Pin Male Socket

Quick Lock Chassis Speaker Connector

Rugged Durable 8 Pin Male Socket

Leave a Message

Product Description

Products Description

8-pole male chassis connector, Nickel housing, solder or ¼" flat tabs The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Model：SWM8S-2ZM

☑Extremely robust metal housing designed for harsh and demanding environment
☑Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
☑Ideal product for touring applications and harsh environments
☑Uses precise “Quick Lock” system Mates with all currently available speakON products

1.Product parameters

Connection Type	SpeakON
Gender	Male

2.Electrical parameters

Contact resistance	< 2 mΩ (after lifetime)
Dielectric strength	3 kVdc (peak)
Insulation resistance	> 10GΩ
Rated current per contact	40 A rms continuous
Rated current per contact	50 A audiosignal, duty cycle 50 %
Rated voltage	250 V ac
Attention	SpeakON is NOT to be used as an AC mains or power supply connector!

3.Mechanical parameters

Service life	＞5000 mating cycles
Locking device	Quick Lock
Chassis shape	Square G-size flange
Layout	Four thru holes

4.Material parameters

Contact plating	4 µm Ag
Insert	Polyamide (PA 6 30 % GR)
Shell	Zinc diecast (ZnAl4Cu1) Ni
Contacts	Spring Copper (CuSn0.2)

5.Environmental parameters

Flammability	UL 94 HB
Protection class	IP 50 (mated condition)
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C

5.Size reference (unit /mm)

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
