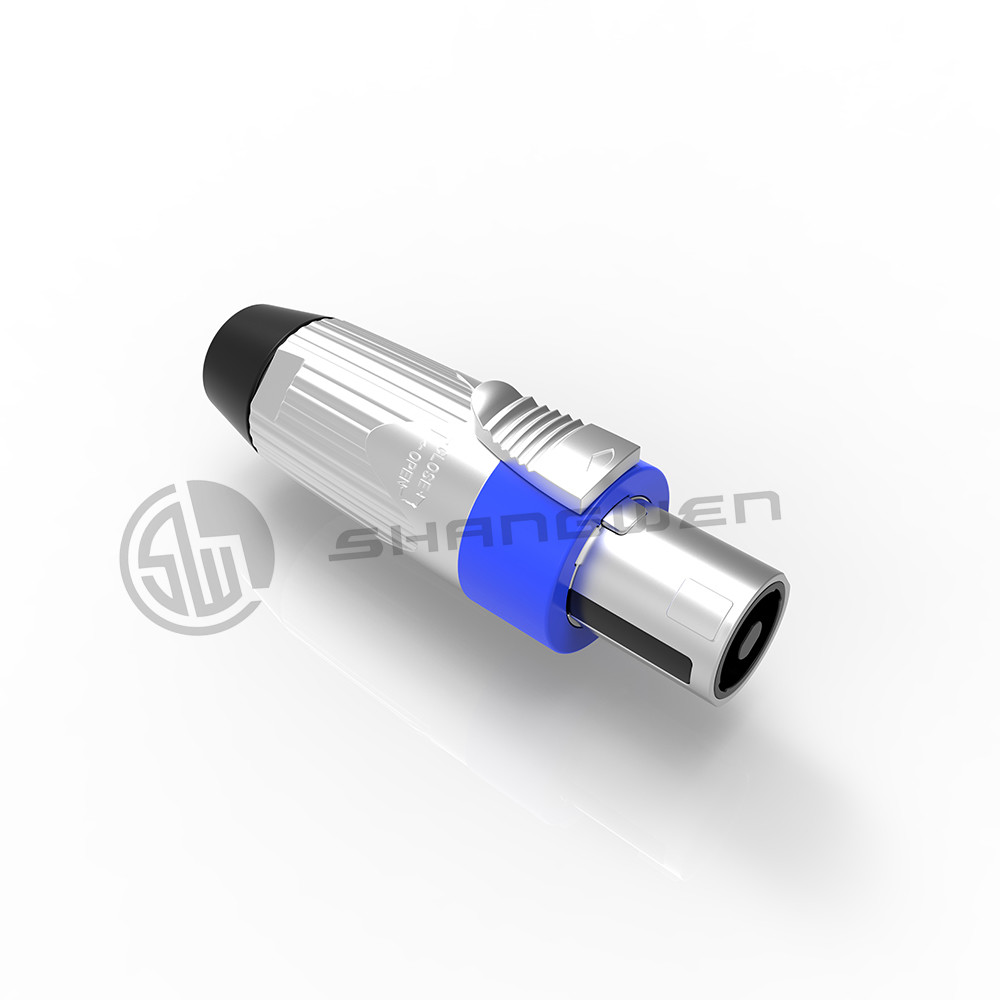

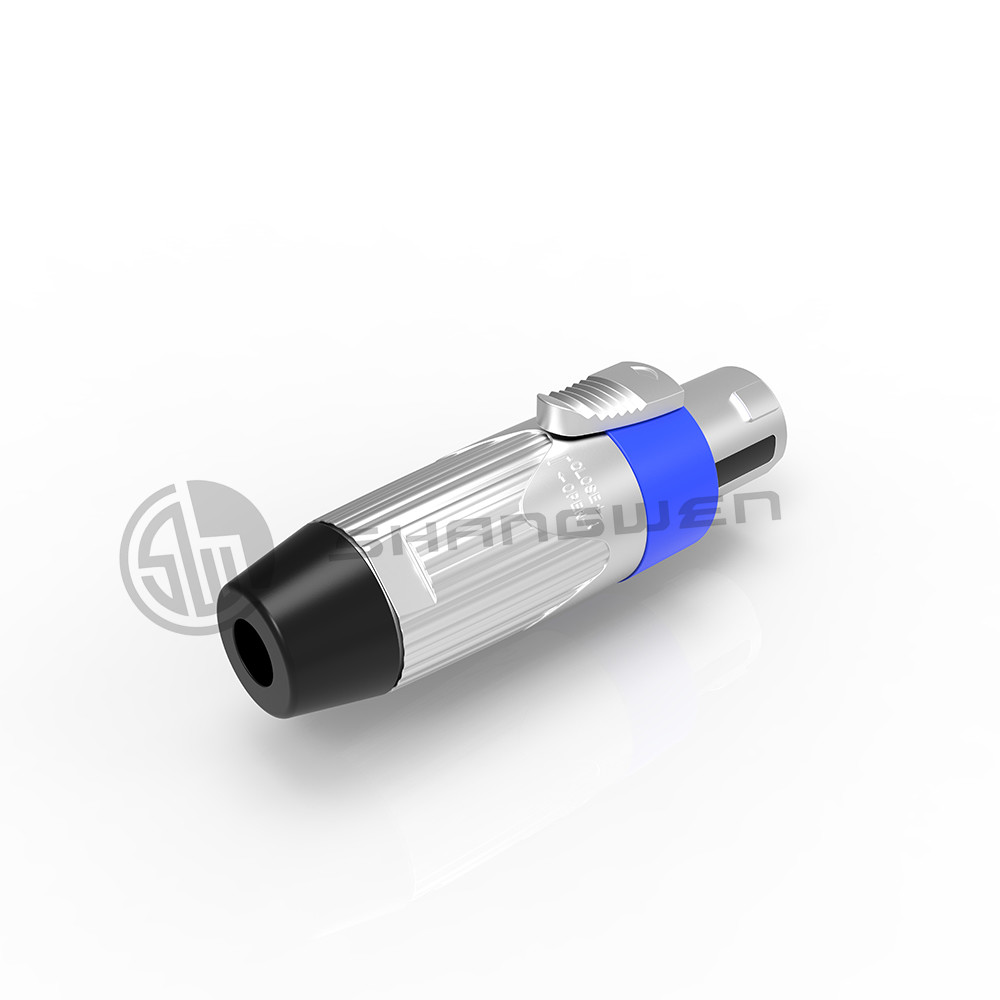

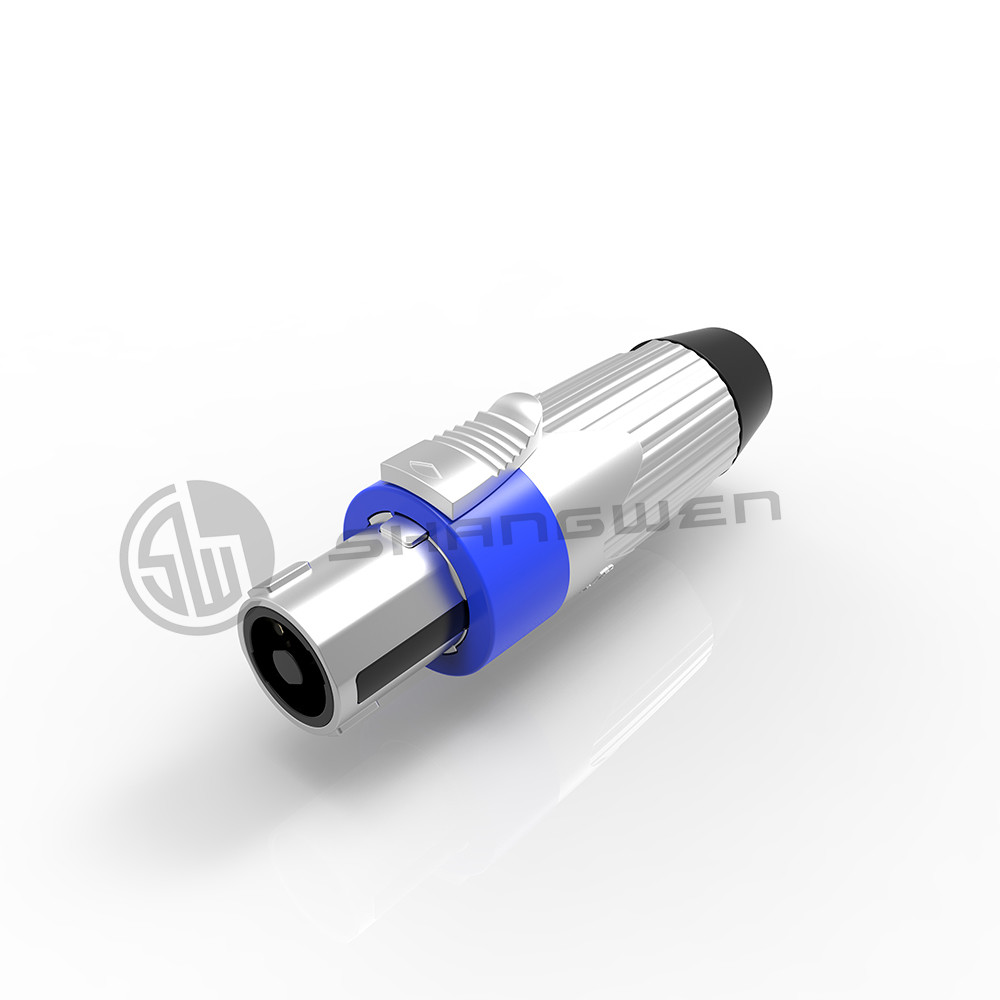

Wholesale Metal Case 4pin Loudspeaker Plug Water Proof Speakon Female Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWF4S-1TM
Minimum Order Quantity	10 pieces
Price	CN¥22.78/pieces 10-99 pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Loudspeaker

Application

Audio & Video

Gender

Female

Industrial Electronics

Accessories

Highlight

4pin Loudspeaker Connector

Water Proof Loudspeaker Connector

Speakon Loudspeaker Connector

Leave a Message

Product Description

Products Description

4Pin Loudspeaker plug-Metal material

Model：SWF4S-1TM

☑The extremely rugged metal case and fiberglass reinforced V-0 material inner core are designed for harsh environments
☑Sophisticated "quick lock" system
☑A large welding contact is attached, suitable for lines up to 6mm²(AWG10)
☑Equipped with internal gasket, protection class up to IP54 in connection state

1.Product parameters

Connection Type	Speaker
Gender	Female

2.Electrical parameters

Contact resistance	＜2mΩ
Dielectric strength	2.8kVac
Insulation resistance	> 1.0GΩ (initial)
Rated current per contact	30A
Rated voltage	250 V ac

3.Mechanical parameters

Sign Cable O.D.	9-16mm
Service life	＞5000 mating cycles
Wire size	6 mm²
Wire size	10AWG
Locking device	Latch lock

4.Material and environmental parameters

Contacts	Cu alloy
Contact plating	Ag
Insert	Polyamide (PA 66 )
Shell	Zinc diecast,Nickel plating
Strain relief	Polyacetal (POM)
Flame-retardant grade	UL 94 V-0
Protection class	IP54
Temperature range	-30℃to +80℃

5.Size reference (unit /mm)

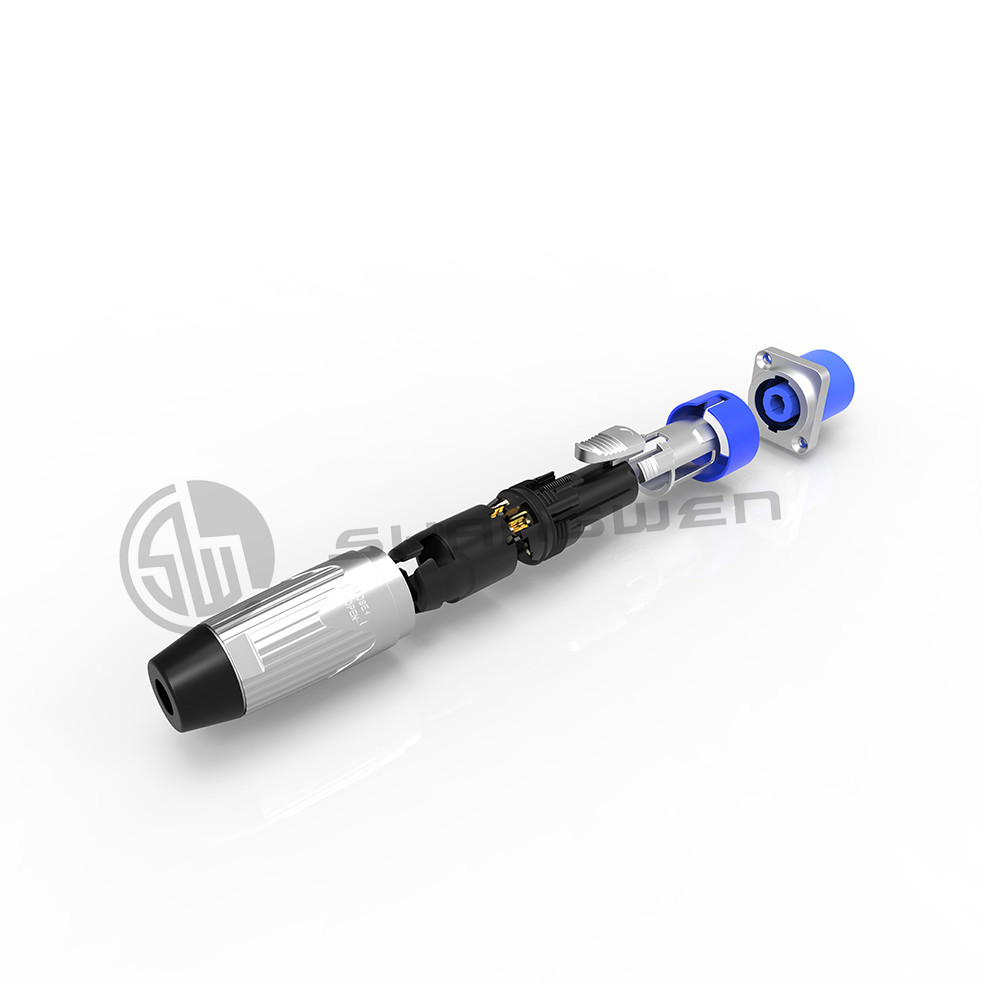

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
