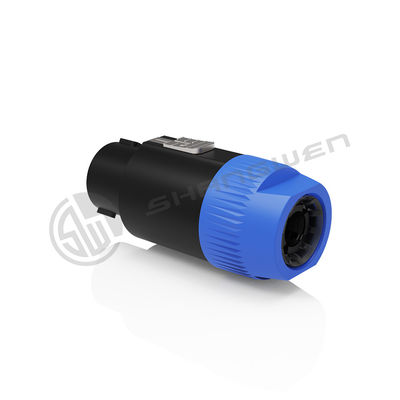

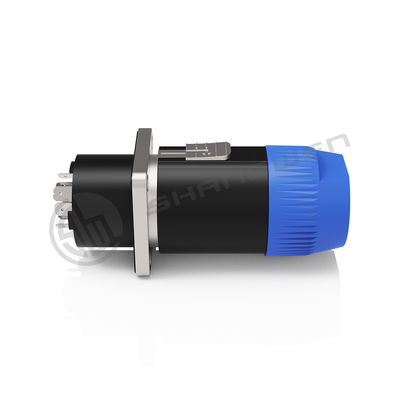

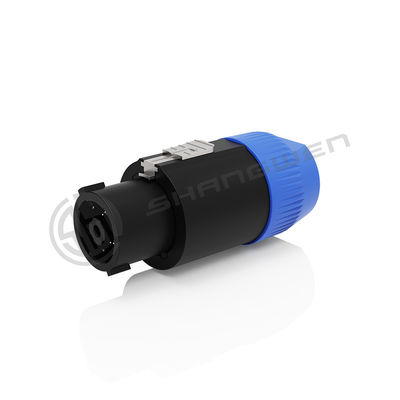

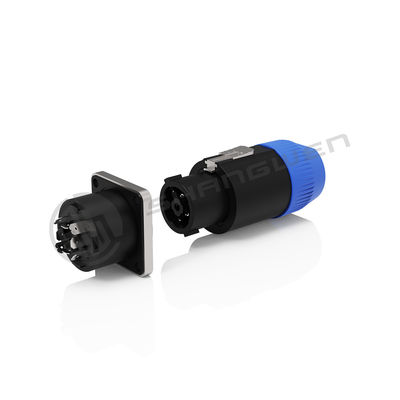

Custom Screw-type Terminals Latch Lock Cable Round Female Plug 30A 8 Pin Speaker Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWF8S-2T
Minimum Order Quantity	10 pieces
Price	CN¥13.53-21.36/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Loudspeaker

Application

Audio & Video

Gender

Female

Industrial Electronics

Accessories

Highlight

8 Pin Speaker Connector

30A Speaker Connector

30A Screw Type Speaker Connector

Leave a Message

Product Description

Products Description

8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Model：SWF8S-2T

☑Current rating 30 A rms continuous
☑Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
☑High impact material for insert and housing, long-lasting and dependable
☑Reliable and robust, easy and fast to assemble ☑Accurate and dependable twist lock latching system "Quick Lock" ☑Chuck type strain relief system for secure clamping of cable

1.Product parameters

Connection Type	speakON
Gender	Female

2.Electrical parameters

Contact resistance	≤ 3 mΩ (after lifetime)
Dielectric strength	4 kVdc (peak)
Insulation resistance	> 1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous
Rated current per contact	A audiosignal, duty cycle 50 %
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!

3.Mechanical parameters

Cable O.D.	8-20mm
Cable retention	≥ 220 N (subject to cable O.D. and material)
Lifetime	> 5000 mating cycles
Wire size	4 mm²
Wire size	12 AWG
Wiring	screw type terminals or soldering
Locking device	Quick Lock (latch)

4.Material parameters

Contact plating	4 µm Ag
Contacts	Brass (CuZn39Pb3)
Insert	PBTP 20 % GR
Locking element	Zinc diecast (ZnAl4Cu1)
Shell	Polyamide (PA 6 30 % GR)
Strain relief	Polyacetal (POM)

5.Environmental parameters

Flammability	UL 94 HB
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C

6.Size reference (unit /mm)

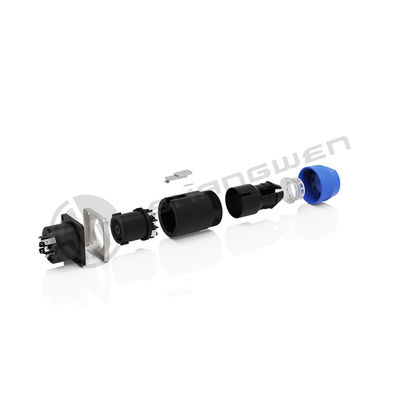

7.Assembly reference

Application area
