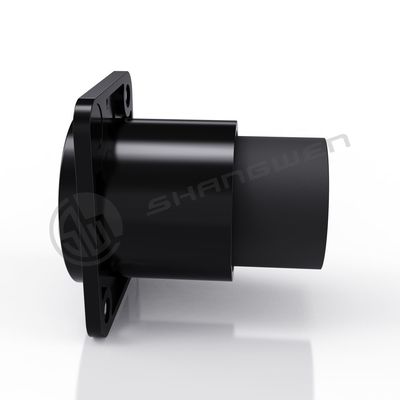

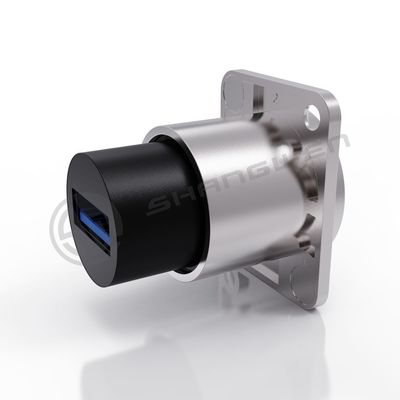

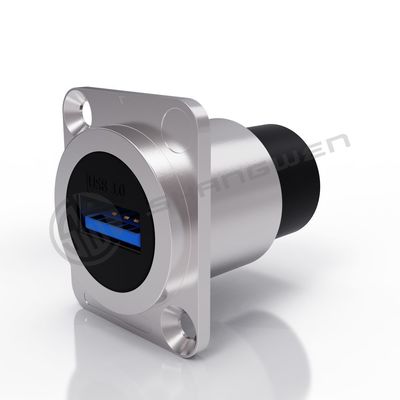

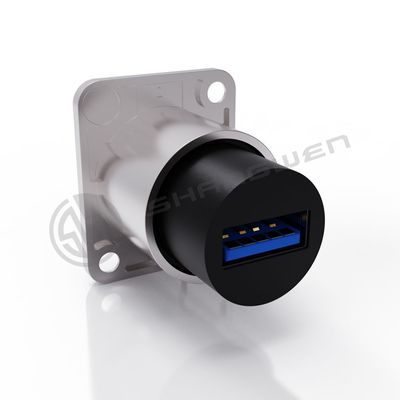

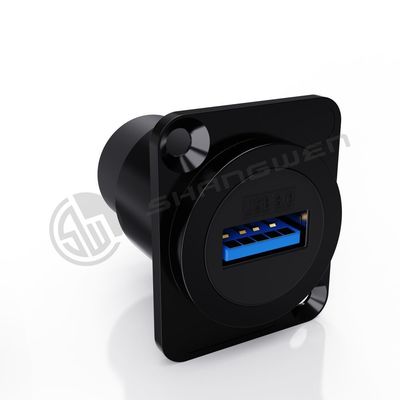

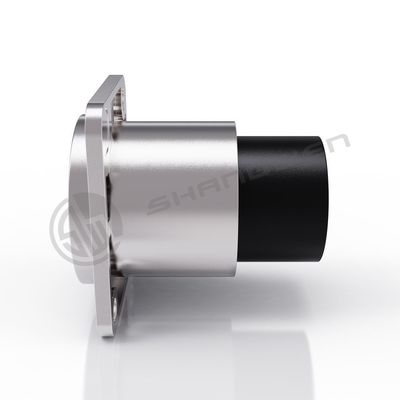

Type A-B B-A 9-Pin USB3.0 Connector Dustproof High-Speed Data Cable Female Panel Mount Chassis Solderless Socket for High-Speed

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SWDU3-SBS
Minimum Order Quantity	10 pieces
Price	CN¥11.49/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application

Industrial Electronics

Accessories

Highlight

Dustproof USB3.0 Data Cable

9-Pin USB3.0 Data Cable

Solderless USB3.0 Data Cable

Leave a Message

Product Description

Products Description

Indoor/outdoor use data connector

Model : SWDU3-SBS

☑9pin shielded suitable for audio and video connection especially audio system of equipment which is computer-based connection. Standard USB format conversion connector Type A-B (B-A)

1.Electrical parameters

No. of poles	4
Current rating	1A
Voltage rating	30Vac (RMS)
Contact resistance	30m Ω max.
Performance	USB version 2.0

2.Materials - Re-wireable and Panel Connectors

Shell material	Steel
Shell plating	Nickel
Contact material	Copper Alloy
Contact plating	30 micro inch Gold
Connector body & locking ring	Glass Loaded Polyester
Panel connector	Nylon 6
Flammability rating	UL94V-0
‘O’rings	Silicone
Panel Gasket - round	Silicone
Panel Gasket - square	Neoprene
Mating cycles	1,000
RoHS	Compliant

3.Size reference (unit /mm)

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
