Outdoor Cu Alloy XLR 5-Pin Connector for Microphone Amplifier Mixer Waterproof IP65 Female Audio
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| IP Level | Ip65 | Type | XLR Connector |
|---|---|---|---|
| Application | Power | Gender | Female |
| Industrial Electronics | Accessories | ||
| Highlight | IP65 XLR 5-Pin Connector,Outdoor XLR 5-Pin Connector |
||
Product Description
Products Description

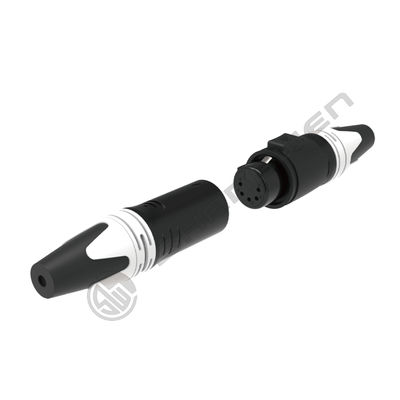

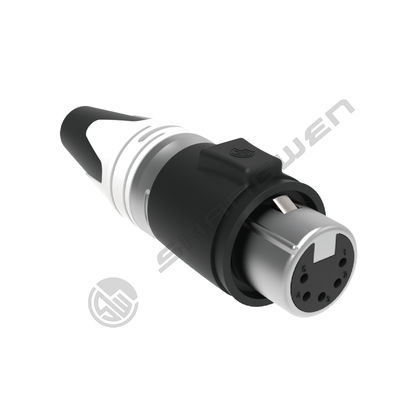

Waterproof XLR connector-5 pin female plug
Model：SWF5X-2TFB-KN-(Black)
SWF5X-2TFS-KN-(Silver)
☑The contact pin is gold-plated
☑Zinc alloy shell to ensure that it can withstand gravity in any field of use
☑Waterproof IP65
☑Wire diameter range: 5-8mm
1.Product parameters
Connection Type | XLR |
Gender | Female |
2.Electrical parameters
Capacitance between contacts | ≤7pF |
Contact resistance | ≤3mΩ |
Dielectric strength | 1.5kVdc |
Insulation resistance | > 10GΩ (initial) |
Rated current per contact | 7.5A |
Rated voltage | <50V |
3.Mechanical parameters
Sign Cable O.D. | 5-8mm |
Insertion force | ≤ 20N |
Withdrawal force | ≤ 20N |
Service life | ＞1000 mating cycles |
Wire size | Max. 1.0 mm² |
Wire size | Max. 18 AWG |
Locking device | Latch lock |
4.Material and environmental parameters
Boot | Polyurethan |
Contacts | Cu alloy |
Contact plating | Au |
Insert | Polyamide (PA 66 +30 % GF) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Cr |
Strain relief | Polyacetal (POM) |
Flame-retardant grade | UL 94 HB |
Protection class | IP65 |
Temperature range | -30℃to +80℃ |
5.Size reference (unit /mm)

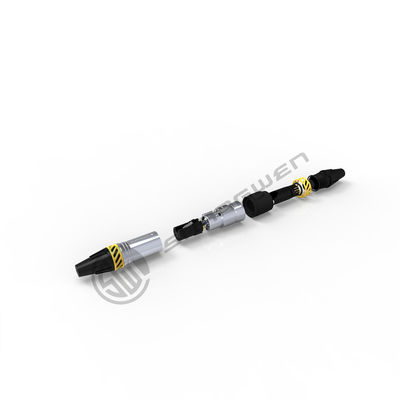

6.Assembly reference
