Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket

  • Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
  • Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
  • Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
  • Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
  • Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SWF5X-2ZFS
Minimum Order Quantity 10 pieces
Price CN¥15.85/pieces 10-99 pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Level Ip65 Type XLR Connector
Application Power Gender Female
Industrial Electronics Accessories
Highlight

5 Pin XLR Female Jack

,

Waterproof 5 Pin XLR Female Jack
Leave a Message
Product Description
Products Description

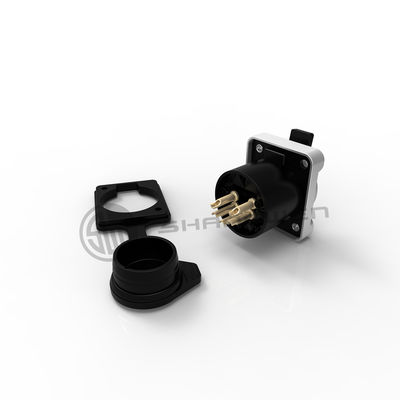

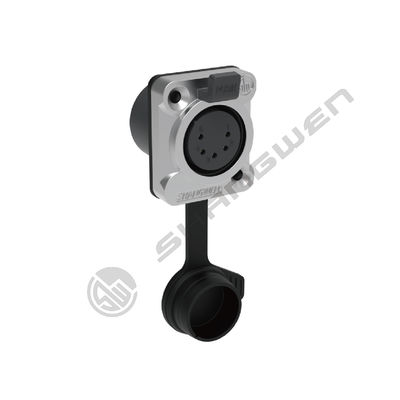

Waterproof XLR connector-5 pin female socket
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 0
Model：SWF5X-2ZFS-KN  (Black)
               SWF5X-2ZFS-KN (Silver)
☑Sealed rubber jacket is waterproof and dust-proof
☑Standard D mounting dimensions, fully matched to existing installation
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Waterproof IP65
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 1
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 2
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 3
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 4
1.Product parameters
Connection Type
XLR
Gender
Female
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 5
Waterproof rubber(Unit:mm)
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 6
6.Assembly reference
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 7
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 8
Application area
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 9
Company Information
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 10
Patent & Certification
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 11
Exhibition activities
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 12
Packaging reference
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 13
Payment and logistics
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 14
FAQ
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket 15
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
