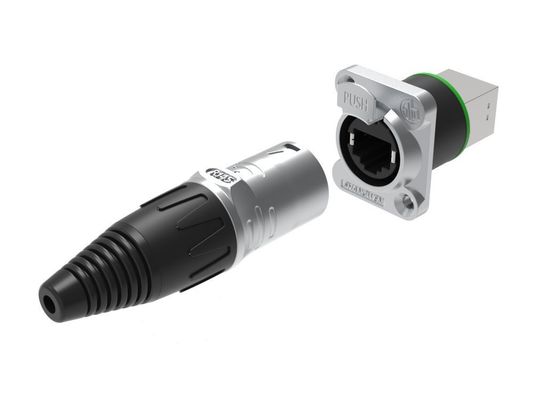

Ethernet Network Modular Jack Plug Panel Mount Socket 5-7mm Cable Industrial Electronics Accessories Chassis Male Connectors

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW8MC-A-2
Minimum Order Quantity	10 pieces
Price	CN¥6.46-20.81/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

RJ45 Plug

Application

Ethernet

Gender

Industrial Electronics

Accessories

Highlight

Industrial Electronics Modular Jack Plug

Chassis Modular Jack Plug

5-7mm Modular Jack Plug

Leave a Message

Product Description

Products Description

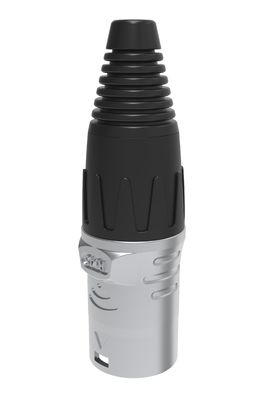

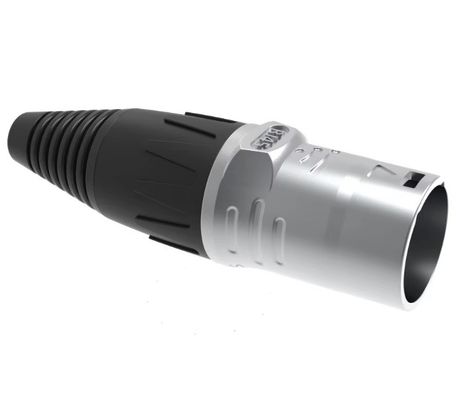

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.

Model：SW8MC-A-2N （indoor use）

☑This RJ45 system is suitable for very demanding environments
☑This cable jacket can be matched with most RJ45
☑Cable jacket does not include crystal head
☑Wire diameter range: 5-7mm
☑Rugged die-cast housing and unique line clamp lock card
☑In many commercial applications, protecting Ethernet connections, this design protects components in RJ45 standard connectors

1. Mechanical parameters

Service life	＞1000 mating cycles
Insertion force	≤20 N
Wiring	5-7mm
Locking device	latch lock

2. Material and environmental parameters

Boot	Polyamide
Shell	Zinc diecast
Shell plating	Black coating
Temperature range	-30℃to +80℃

3. Size reference (unit /mm)

4. Internal structure reference

5. Installation instructions with RJ45 socket

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
