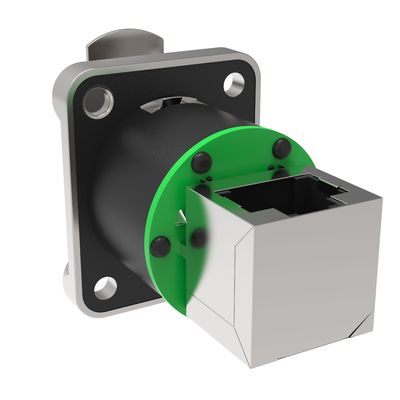

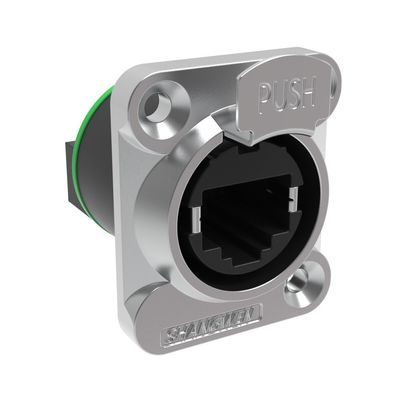

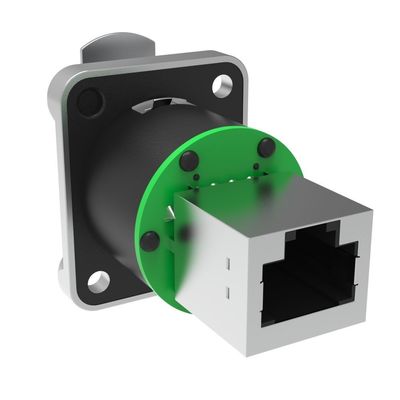

Panel Mount Waterproof Rj45 Network Connector Right Angle Shield Female RJ45 Connector

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW3MPA
Minimum Order Quantity	10 pieces
Price	CN¥20.76/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type

Led Display Connector

Application

Power

Gender

Female

Industrial Electronics

Accessories

Highlight

Right Angle Rj45 Network Connector

Panel Mount Rj45 Network Connector

Shield Female RJ45 Connector

Leave a Message

Product Description

Products Description

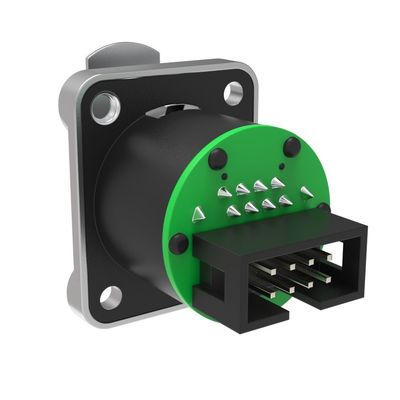

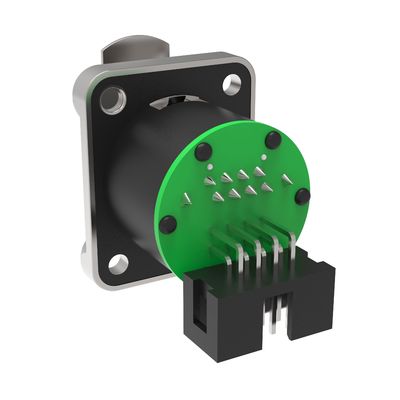

Rj45 Waterproof Connector Shield Rj45 Network Connector 8P Panel Mount Chassis Socket Type Normal and Right Angle

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.

☑This RJ45 system is suitable for very demanding environments
☑This cable jacket can be matched with most RJ45
☑Cable jacket does not include crystal head
☑Wire diameter range: 5-7mm
☑Rugged die-cast housing and unique line clamp lock card
☑In many commercial applications, protecting Ethernet connections, this design protects components in RJ45 standard connectors

1.Electrical parameters

8Contacts NO.	8
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤5mΩ
Dielectric strength	4000V DC
Insulation resistance	＞1000MΩ

2.Mechanical parameters

Service life	＞1000 times
Power line	2.5mm²(8mm - 12mm)
Wire stripping length	7-8mm
Type of teminals	Screw type clamping units solder termination

3.Material and environmental parameters

Shell	PA
Contacts	Cu alloy
Contact surface	Ag
Flame-retardant grade	UL94-V0
Protection grade	IP44
Temperature range	-30°C to +80°C

4.Size reference (unit /mm)

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
