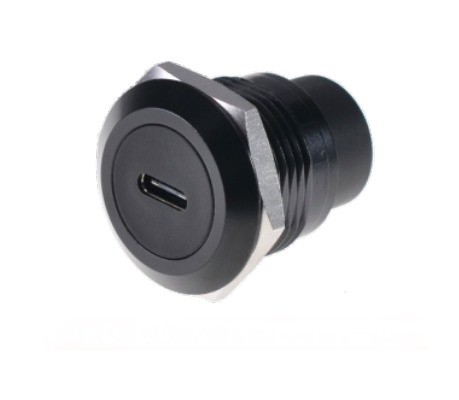

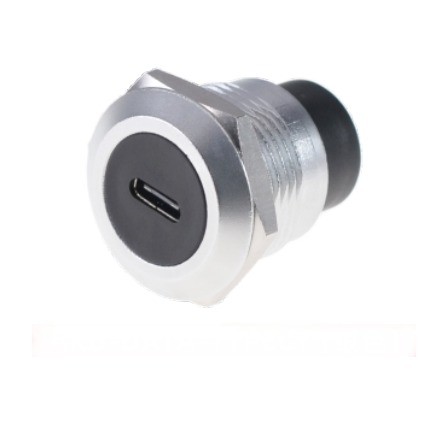

Zinc Alloy Round Data Connector for Audio Devices Dustproof and Durable

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Type | Usb | Application | Data |
---|---|---|---|
Housing Material | Zinc Alloy | Industrial Electronics | Accessories |
Highlight | Dustproof Round Data Connector,Audio Devices Round Data Connector,Durable Round Data Connector |
Product Description
Products Description
Indoor/outdoor use data connector
This series of housings uses a full zinc alloy housing, the socket can be integrated installation, for some harsh conditions for special requirements, the product can be equipped with a protective gasket.
This series of housings uses a full zinc alloy housing, the socket can be integrated installation, for some harsh conditions for special requirements, the product can be equipped with a protective gasket.




1.Electrical parameters
No. of poles | 4 |
Current rating | 1A |
Voltage rating | 30Vac (RMS) |
Contact resistance | 30m Ω max. |
Performance | type c |
2.Materials - Re-wireable and Panel Connectors
Shell material | Steel |
Shell plating | Nickel |
Contact material | Copper Alloy |
Contact plating | 30 micro inch Gold |
Connector body & locking ring | Glass Loaded Polyester |
Panel connector | Nylon 6 |
Flammability rating | UL94V-0 |
‘O’rings | Silicone |
Panel Gasket - round | Silicone |
Panel Gasket - square | Neoprene |
Mating cycles | 1,000 |
RoHS | Compliant |
3.Size reference (unit /mm)

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics
