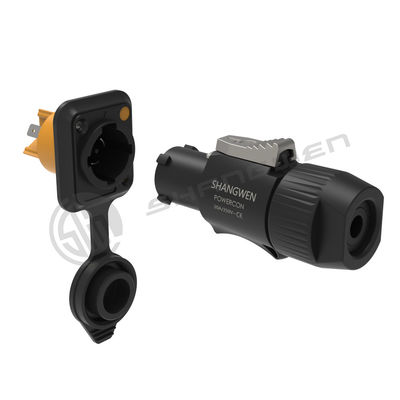

Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3FX-W
Minimum Order Quantity 10 pieces
Price CN¥8.70-33.34/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Led Display Connector Application Power
Gender Male Industrial Electronics Accessories
Highlight

IP65 Waterproof Power Connector

,

3Pin Waterproof Power Connector

,

250V Waterproof Power Connector

Leave a Message
Product Description
Products Description
Outdoor Power LED IP65 Waterproof Mle Female Plug Connector 3Pin 250V speakon connector
This series is widely used in outdoor rental LED display power connection.

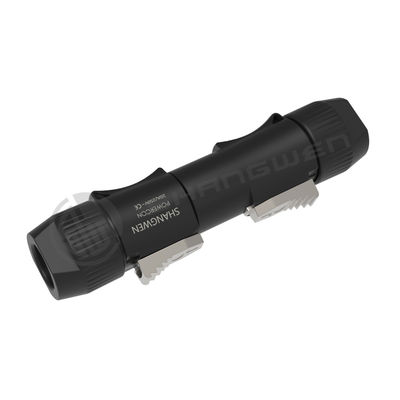

The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.

The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 0

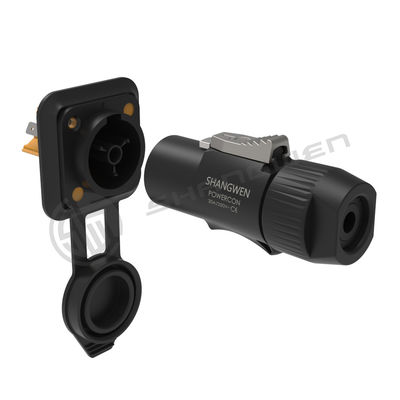

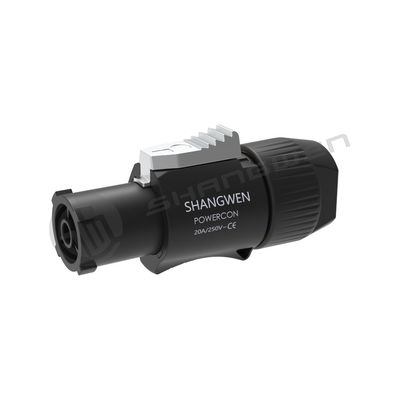

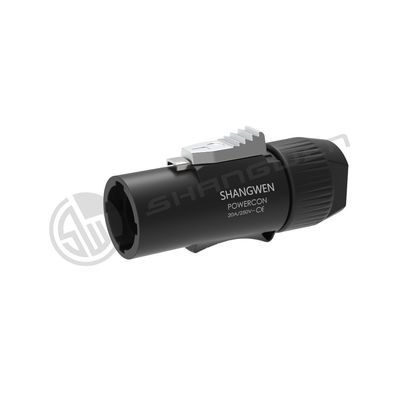

Model : SW3FX-W ( outdoor use/output port)
The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
High current capacity, rated at 20A/250V AC
Quick and simple locking system, the keys are firm and do not fall off
Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
Protection level: used in outdoor scenes, protection level up to IP65
Connect reliably
Use different color design to distinguish signal input and output, yellow input, black output
Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 1
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 2
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 3
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
>1000MΩ
2.Mechanical parameters
Service life
>1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 4
5.Installation reference drawing
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 5
Application area
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 6
Company Information
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 7
Patent & Certification
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 8
Exhibition activities
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 9
Packaging reference
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 10
Payment and logistics
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 11
FAQ
Outdoor Power LED IP65 Waterproof Male Plug Connector 3Pin 250V Speakon Connector for Industrial Electronics Accessories 12
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
