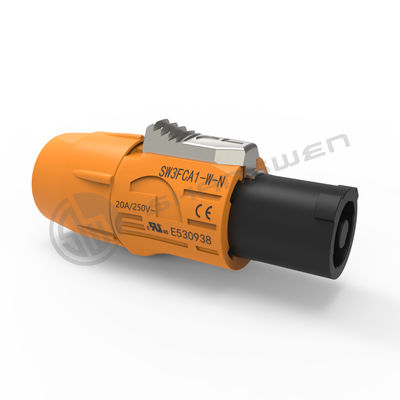

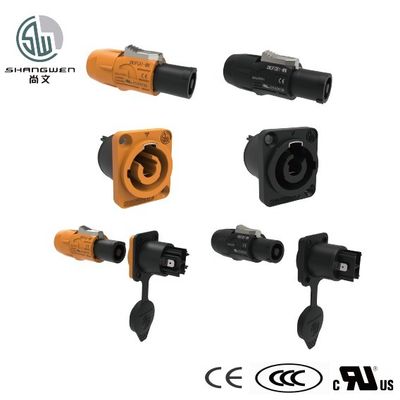

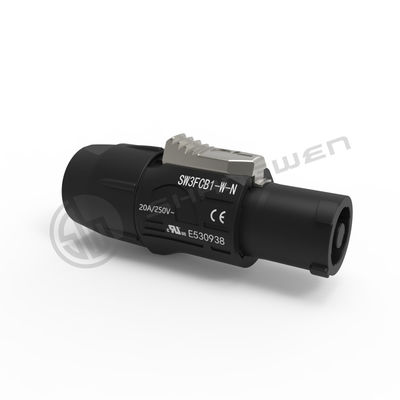

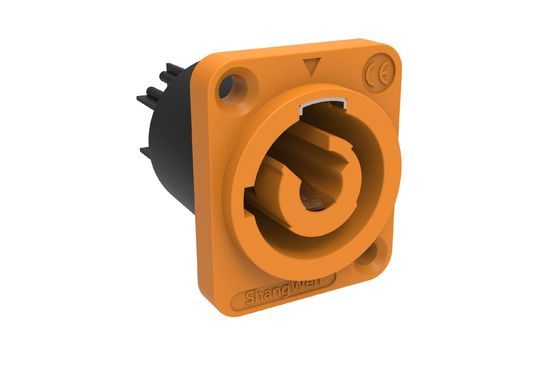

LED Display Connector 250V 3Pin Male Blue LED Powercon Chassis Plug Connector for Industrial Electronics Accessories

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW3FCA1-W
Minimum Order Quantity	10 pieces
Price	CN¥8.70-10.87/pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type

Led Display Connector

Application

Power

Gender

Male

Industrial Electronics

Accessories

Highlight

3Pin LED Display Connector

Industrial Electronics LED Display Connector

250V LED Display Connector

Leave a Message

Product Description

Products Description

Input Output Powercon Chassis Plug Panle Connector 3Pin 250v Plug Male Blue Led speakon connector

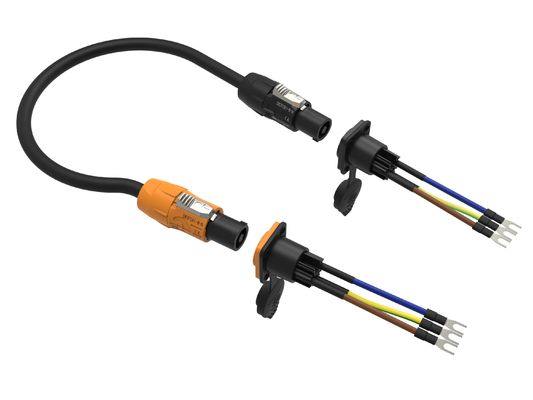

This series is widely used in outdoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !

Model : outdoor use/yellow input

☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑high current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force

1.Electrical parameters

Contacts NO.	2+PE
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤5mΩ
Dielectric strength	4000V DC
Insulation resistance	＞1000MΩ

2.Mechanical parameters

Service life	＞1000 times
Power line	2.5mm²(8mm - 12mm)
Wire stripping length	7-8mm
Type of teminals	Screw type clamping units solder termination

3.Material and environmental parameters

Shell	PA
Contacts	Cu alloy
Contact surface	Ag
Flame-retardant grade	UL94-V0
Protection grade	IP65
Temperature range	-30°C to +80°C

4.Size reference (unit /mm)

5.Installation reference drawing

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
