Industrial Male And Female Waterproof Power Connector Ip65 Outdoor

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW3MX-W
Minimum Order Quantity	2 pieces
Price	$2.30 - $3.50/pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Name	Waterproof Power Connector	Keywords	Male And Female Power Connector
Type	Led Display Connector	Gender	Female
Application	Electric Vehicle Charging / Control Box	Industrial Electronics	Accessories
Highlight	Outdoor Waterproof Power Connector , Ip65 Waterproof Power Connector , Male And Female Waterproof Power Connector

Leave a Message

Product Description

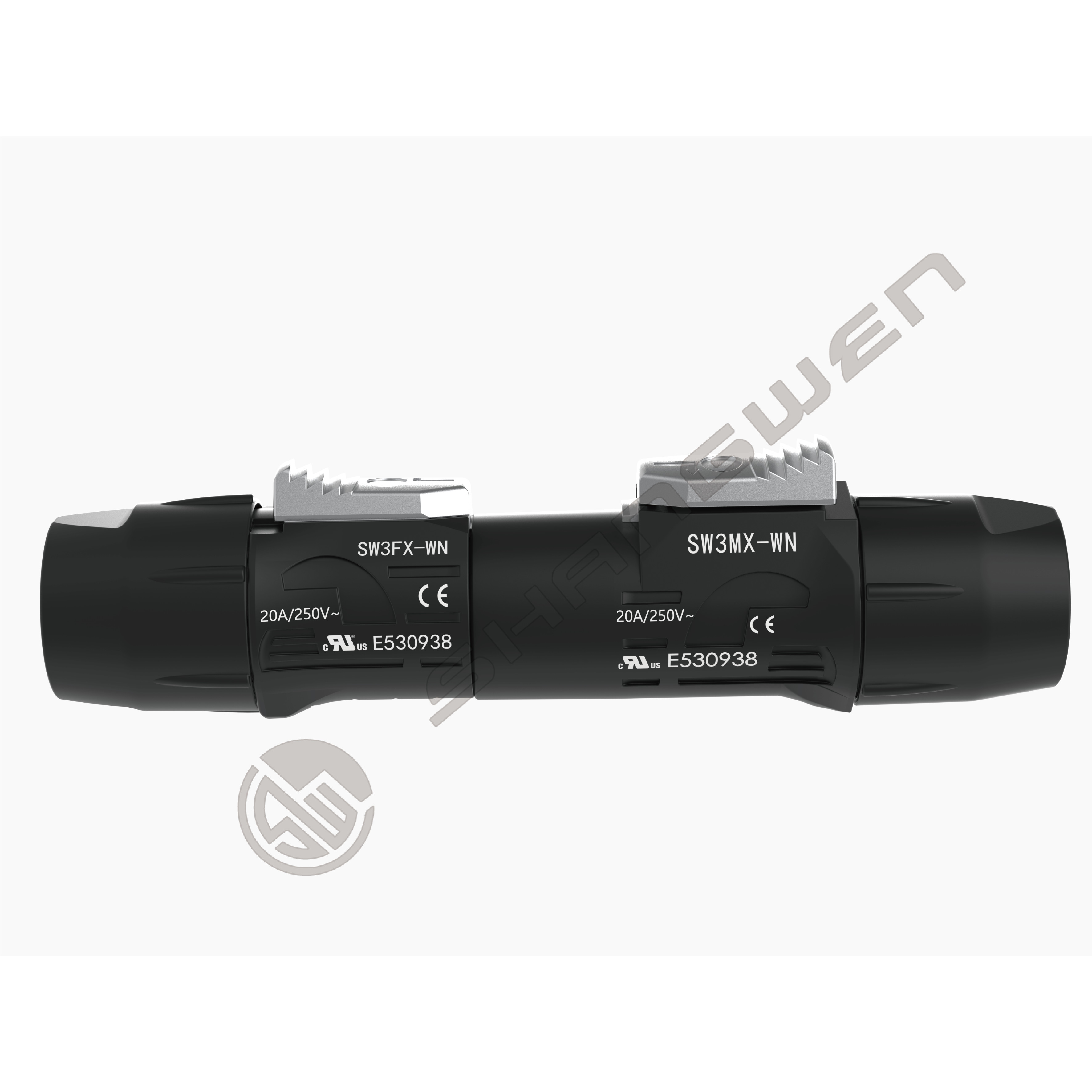

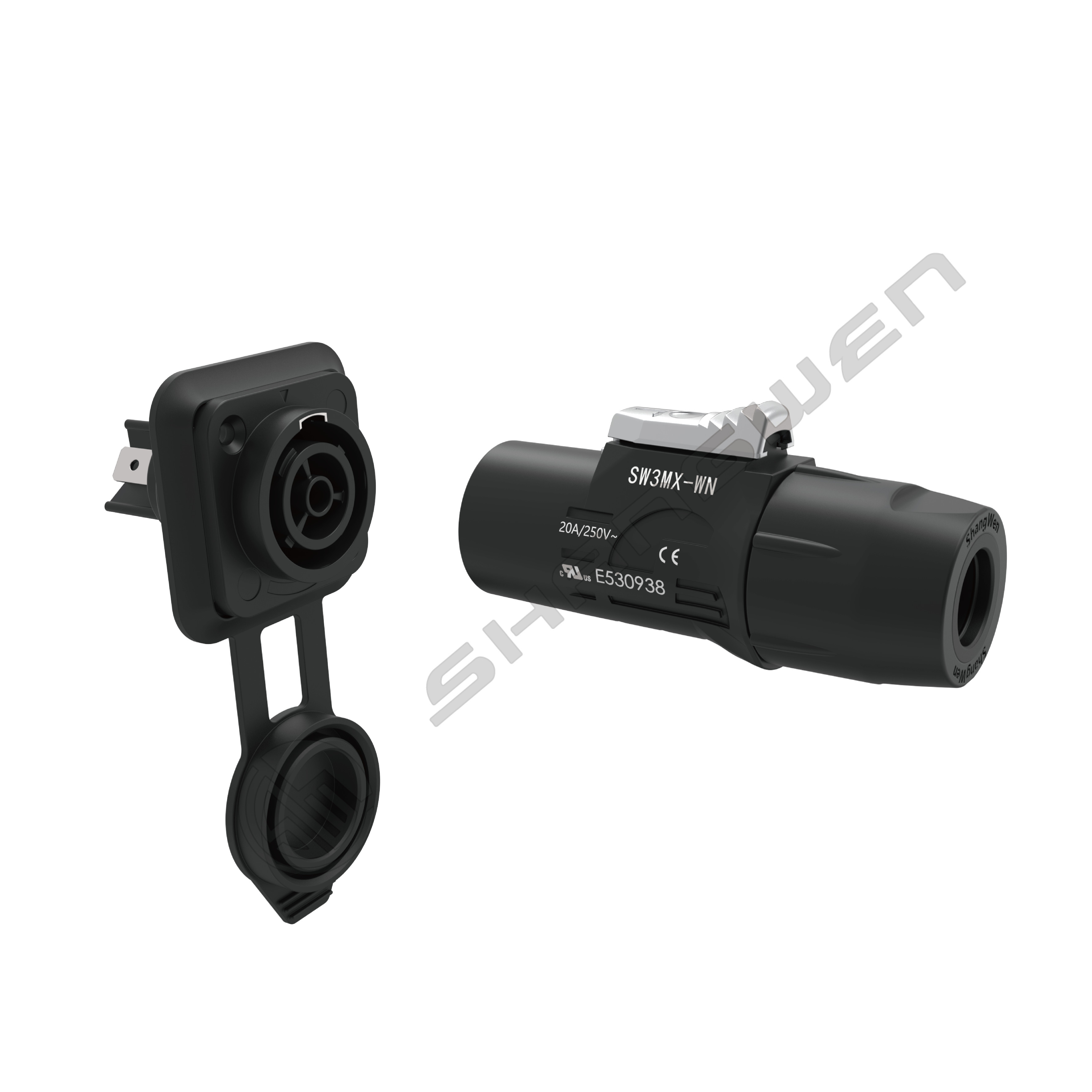

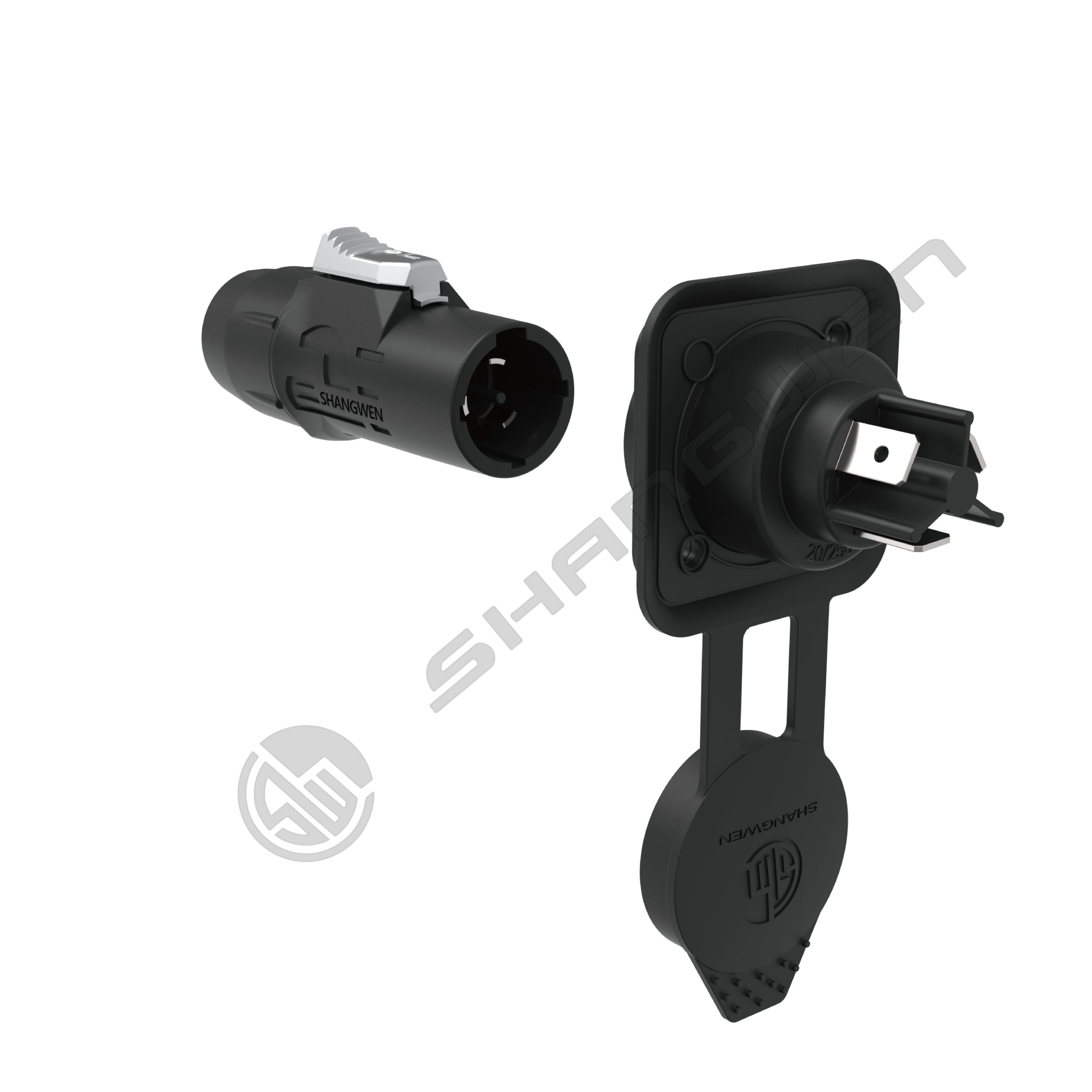

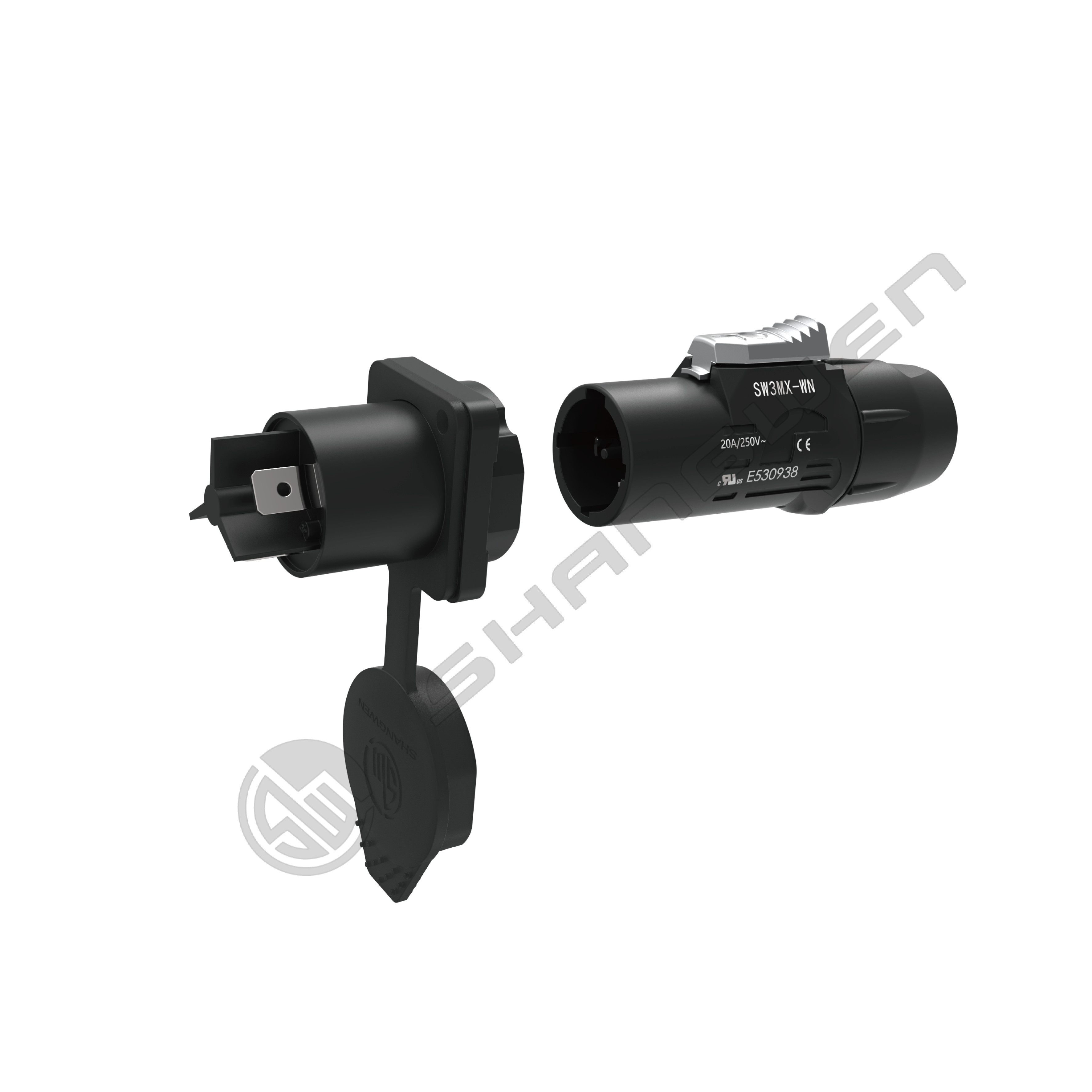

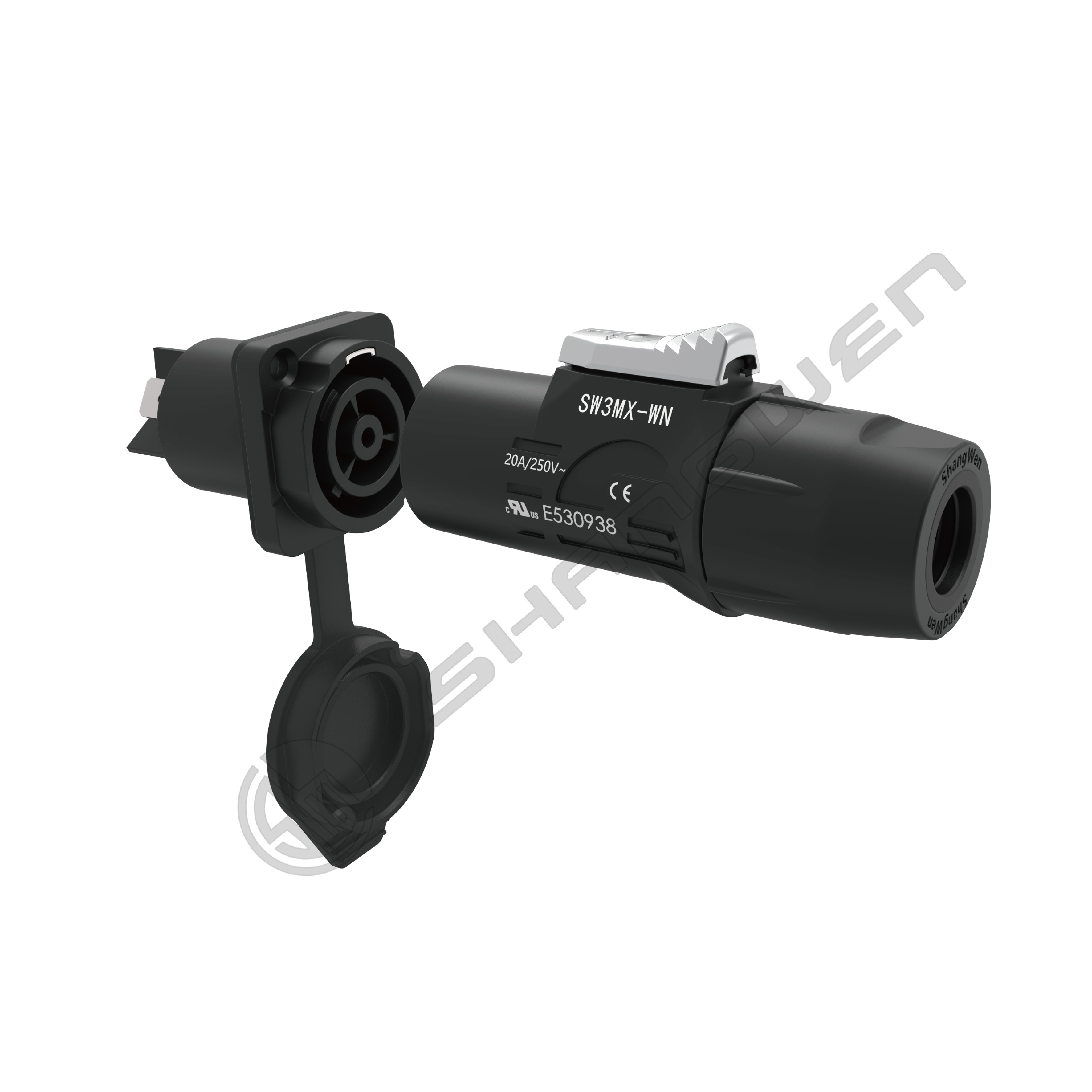

Yellow Input Black Output Outdoor Ip65 Waterproof Male And Female Power Connector

Model : SW3MX-W ( outdoor use/input port )

☑Use different color design to distinguish signal input and output, yellow input, black output
☑Connect reliably

☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off

☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding

☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug

☑Protection level: used in outdoor scenes, protection level up to IP65
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force

☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws

Products Description

Power connector series-male powercon(input port)

The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.

The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
This series is widely used in outdoor rental LED display power connection.
Using rotary locking design, easy to operate, stable and reliable !
