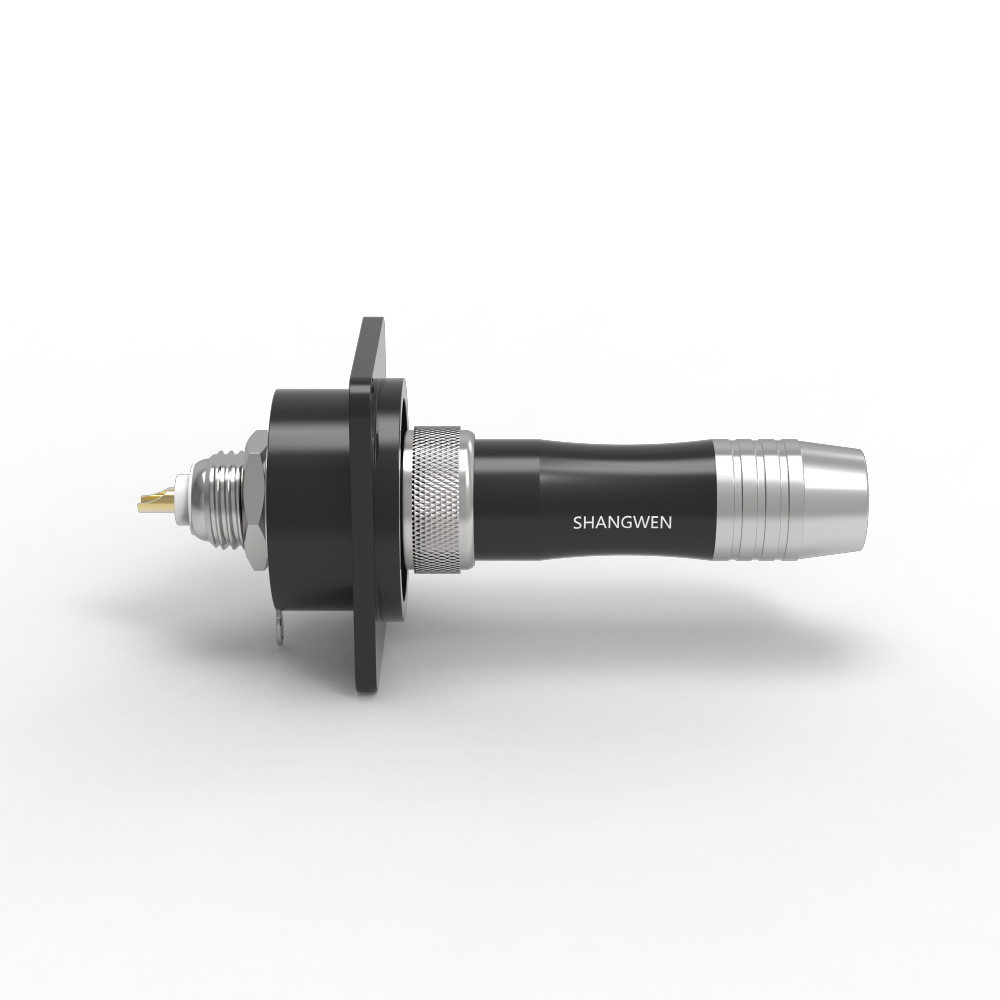

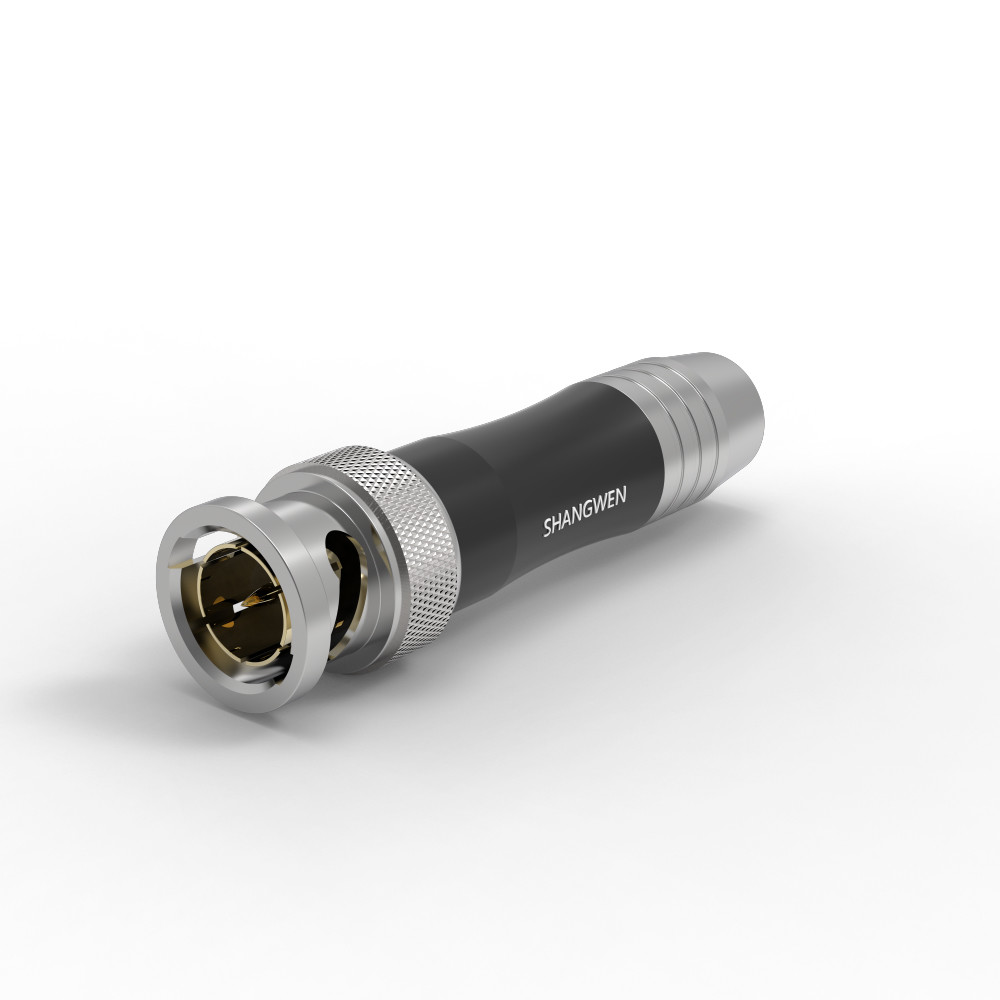

Micro Panel Mount BNC Video Connector Male 0.2dB Insertion Loss

Name: Micro Panel Mount BNC Video Connector Male 0.2dB Insertion Loss
Brand: Shangwen
SKU: SWJSH-BNM
Rating: 4.5 (160 reviews)

Place of Origin	Shenzhen,China
Brand Name	Shangwen
Model Number	SWJSH-BNM
Minimum Order Quantity	100pcs
Price	Negotiable
Packaging Details	Internal blister box 23x23cm External carton 51x26x34cm
Payment Terms	T/T
Supply Ability	100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Connector A	BNC	Weight	15g
Impedance	50 Ohm	Insertion Loss	0.2dB
Durability	500 Cycles	Gender	Male
Type	Waterproof	Frequency Range	DC To 4GHz
Highlight	Micro BNC Video Connector , BNC Video Connector 0.2dB , Panel Mount BNC Connector

Leave a Message

Product Description

BNC Video Connector 0.2dB Insertion Loss BNC-BNC Connectors Micro Panel Mount BNC Video Connector Male 0.2dB Insertion Loss 0

Product Description:

BNC Video Connector

The BNC Video Connector is a metal BNC female plug connector designed to provide superior connectivity performance for video applications. It has a 50 ohm impedance and a 1.2:1 VSWR. The durable connector is constructed from metal and is designed to withstand up to 500 cycles.

The BNC Video Connector is specifically designed for use with BNC Panel Mount Connector Adapter, allowing for easy installation in a variety of video applications. It is the perfect solution for providing a secure connection and reliable performance.

The BNC Video Connector is an ideal choice for both professional and DIY users who require a reliable, long-lasting connection for their video applications.

Features:

Product Name: BNC Video Connector
BNC Panel Mount Connector Adapter
BNC male plug connector
Impedance: 50 Ohm
Weight: 15g
Gender: Male
Operating Temperature: -40 To +85℃
VSWR: 1.2:1

Technical Parameters:

Parameters	Specifications
Type	Connector
Connector B	BNC
VSWR	1.2:1
Impedance	50 Ohm
Connector A	BNC
Insertion Loss	0.2dB
Material	Metal
Storage Temperature	-40 To +85℃
Frequency Range	DC To 4GHz
Durability	500 Cycles

Applications:

Shangwen's BNC Video Connector, model SWJSH-BNM, is a BNC micro coaxial compression connector designed and manufactured in Shenzhen, China. It features an operating temperature of -40 to +85℃, an impedance of 50 Ohm, and a return loss of 20dB. This reliable connector can be used for a variety of applications and scenarios, such as BNC Panel Mount Connector Adapter. It is also highly durable and resistant to extreme temperatures, making it a great choice for any environment. The BNC Video Connector from Shangwen is the perfect solution for any video connection needs, providing reliable performance and a long-lasting connection.

Support and Services:

BNC Video Connector Technical Support and Service

The BNC Video Connector is a reliable and efficient connection solution for audio/video systems. Our technical support team provides dedicated support to help you maintain and optimize your connection solution.

Technical Support

Our technical support team is available 24/7 to answer any questions you may have. We provide detailed product information and troubleshooting tips to help you get the most out of your connection solution.

Product Service

We offer a comprehensive product service to ensure your connection solution remains in top working condition. Our product service includes regular maintenance checks and repairs to ensure your connector is working as intended.

FAQ:

Q: What is BNC Video Connector?: A: BNC Video Connector is a type of electrical connector used for carrying audio and video signals. It is offered by Shangwen with model number SWJSH-BNM, which is made in Shenzhen, China.
Q: What is the purpose of BNC Video Connector?: A: BNC Video Connector is mainly used to connect video equipments, such as cameras, monitors, and so on.
Q: What are the advantages of BNC Video Connector?: A: BNC Video Connector has the advantages of low cost, wide bandwidth, and good shielding performance.
Q: Is BNC Video Connector compatible with different devices?: A: Yes, BNC Video Connector is compatible with devices that have a BNC connector.
Q: What types of BNC Video Connector do you offer?: A: Shangwen offers a wide range of BNC Video Connectors, including straight, right angle, and T-connectors.
