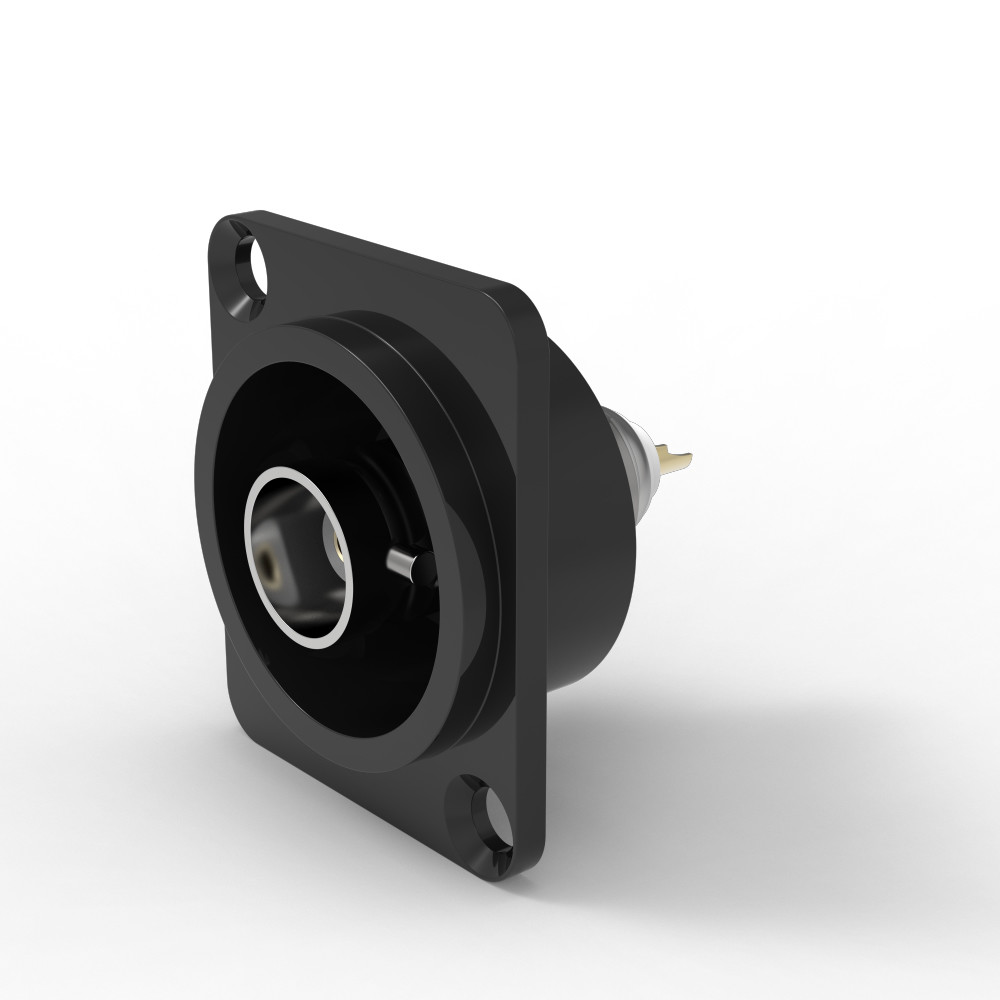

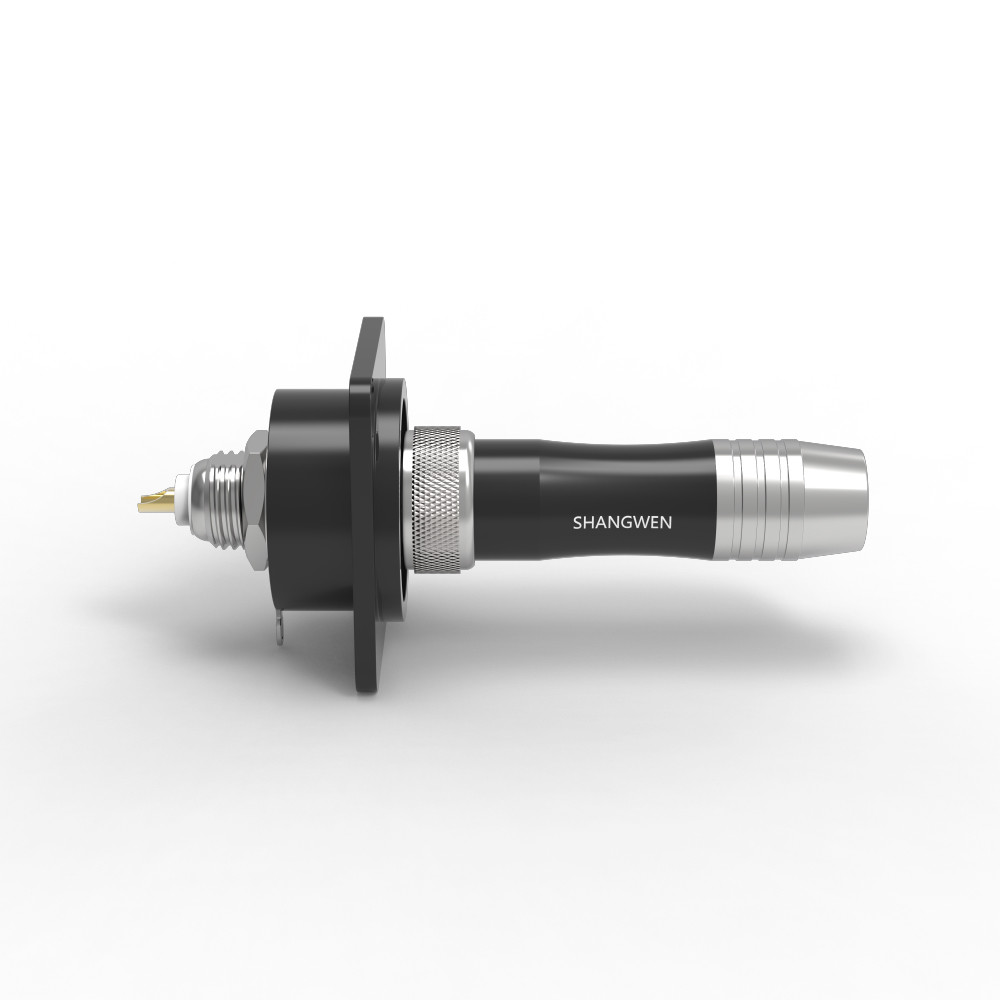

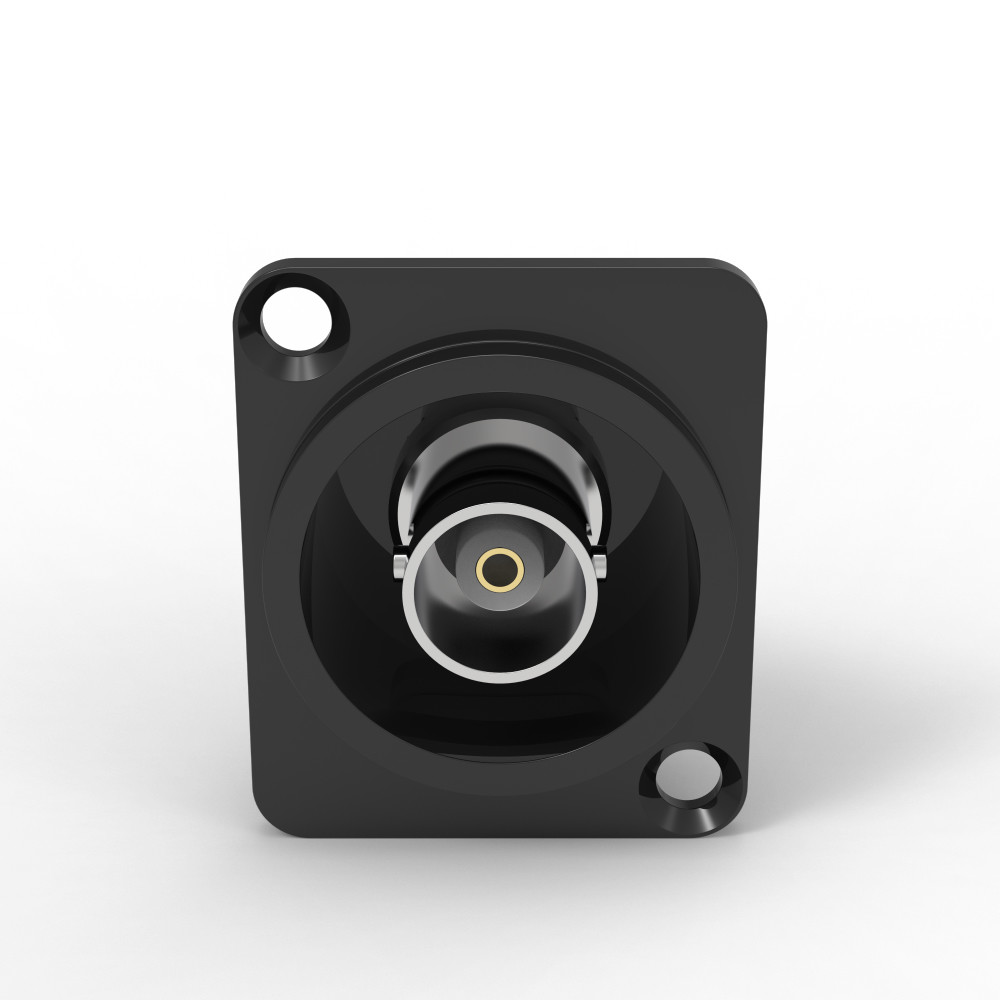

Electrical Female BNC Video Connector Waterproof 50 Ohm Impedance

Place of Origin Shenzhen,China
Brand Name Shangwen
Model Number SWJSH-BF
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Internal blister box 23x23cm External carton 51x26x34cm
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100000+pcs+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 50 Ohm Name BNC Video Connector
VSWR 1.2:1 Durability 500 Cycles
Connector A BNC Connector B BNC
Type Waterproof Return Loss 20dB
Highlight

Female BNC Video Connector

,

BNC Video Connector Waterproof

,

Electrical Female BNC Connector

Leave a Message
Product Description

BNC Connector -40 to +85C and



Electrical Female BNC Video Connector Waterproof 50 Ohm Impedance 0

Product Description:

BNC Video Connector is a BNC panel mount connector adapter, a BNC female plug connector, which is made of metal material and offers an insertion loss of 0.2dB, a return loss of 20dB and a VSWR of 1.2:1. It is a reliable BNC connector and is widely used for digital video systems, such as CCTV, video surveillance, HD-SDI and broadcast applications. It ensures a secure and stable transmission of video signals, and provides excellent electrical performance. Moreover, it is durable and has a long service life.



Features:

  • Product Name: BNC Video Connector
  • Connector B: BNC Panel Mount Connector Adapter, BNC micro coaxial compression connector , BNC Panel Mount Connector Adapter
  • Insertion Loss: 0.2dB
  • Impedance: 50 Ohm
  • Durability: 500 Cycles
  • Material: Metal


Technical Parameters:

Property BNC Video Connector
Type Connector
Name BNC Video Connector
Durability 500 Cycles
Weight 15g
Frequency Range DC To 4GHz
Storage Temperature -40 To +85℃
Insertion Loss 0.2dB
Connector B BNC
Gender Male
Return Loss 20dB



Applications:



Shangwen's SWJSH-BNM BNC Video Connector is a high-quality BNC female plug connector, perfect for use in a wide range of applications. With the help of its BNC micro coaxial compression connector, it provides a return loss of up to 20dB and operates within a frequency range of DC to 4GHz. This BNC female connector is also capable of working at temperatures between -40 to +85℃, making it an ideal choice for harsh environments.

The SWJSH-BNM BNC Video Connector is manufactured by Shangwen, a leading brand in Shenzhen, China. It is available in a wide range of sizes and configurations, making it a perfect match for any BNC video connection. With its superior performance characteristics, it is sure to provide years of reliable and dependable service.



Support and Services:



BNC Video Connector provides technical support and services to ensure that our customers get the best products and services possible. Our team of experienced technicians are available 24/7 to answer any questions or concerns you may have about our products. We also offer online tutorials and guides to help you get the most out of your purchase. Additionally, we provide a comprehensive warranty program to ensure that your purchase is safe and secure.



FAQ:



  • Q: What is BNC Video Connector?
    A: BNC Video Connector is a kind of audio and video connector, produced by Shangwen, with model number SWJSH-BNM, originated from Shenzhen, China.
  • Q: What type of video signal does BNC Video Connector support?
    A: BNC Video Connector supports all types of video signals, such as composite video, component video, and RGB video.
  • Q: What are the main features of BNC Video Connector?
    A: BNC Video Connector is designed with gold-plated contacts and a ruggedized shell. It ensures high performance, durability and reliable signal transmission.
  • Q: What is the application of BNC Video Connector?
    A: BNC Video Connector is widely used in CCTV cameras, video surveillance systems, broadcasting systems, and other audio and video equipment.
  • Q: How to install BNC Video Connector?
    A: BNC Video Connector is easy to install. Just connect the BNC connector to the device or cable and twist the locking nut to secure the connection.
