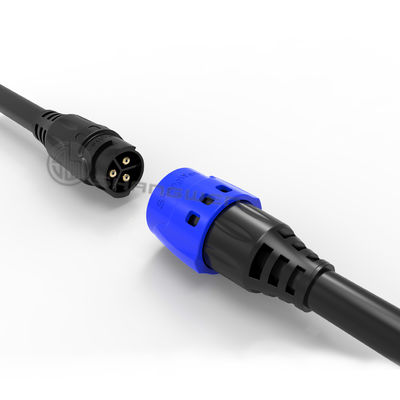

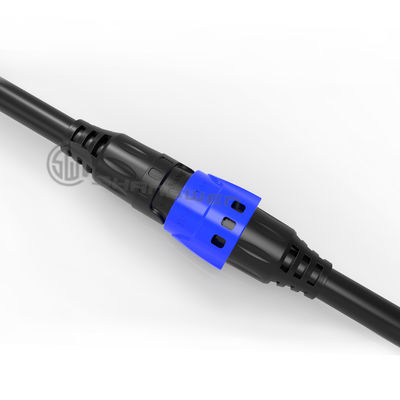

Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series

Place of Origin ShenZhen, China
Brand Name SHANGWEN
Model Number SW19-3JST
Minimum Order Quantity 2 pieces
Price $2.20/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Quick, Simple Self Locking System Name Push Pull IP67 Power Connector
Application Industrial Industrial Electronics Accessories
Multiple Cores 2,3,4,5,6,9,3+9 Pin Support Gender Male
Type SW19 Self-locking Series
Highlight

Push Pull IP67 Power Connector

,

IP67 Power Connector Male

,

IP67 Connector 4 Pin

Leave a Message
Product Description



M19 Series Push-pull Self-locking Connection Industrial 4 Pin Male Plug Connector





Product features

1) Advanced structure: Self-locking

2) Mutiple pin:2,3,4,5,6,7,8,9 to 36 pins could be choosed

3) Contact pin: Screw cable,soldering cup and crimp available

4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

5) Black,blue,white and yellow color supported

6) Different cable length could be customized



Products Description

SW19 Self-locking series-3Pin connector

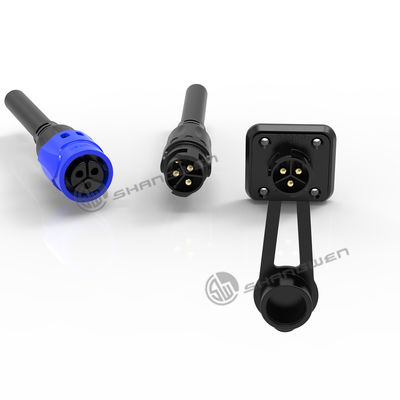

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

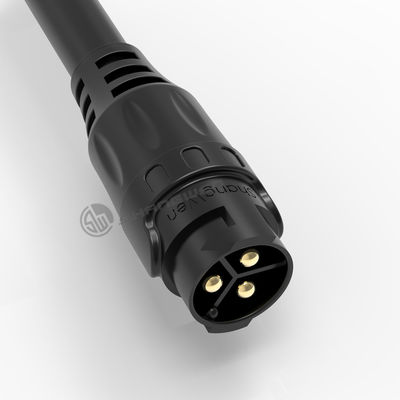

Model : SW19-3JST (3 pin male plug)


☑Connect reliably
☑Small size of product

☑Quick, simple self locking system
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67


Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series 0
Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series 1


Size reference (unit /mm)
Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series 2
Operating reference
Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series 3
Application area
Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series 4
Packaging reference

Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series 5
FAQ
Push Pull IP67 Power Connector 3 Pin Male Plug Connector M19 Series 6

Q: What is the brand name of the M19 Connector product?

A: The brand name of the M19 Connector product is Shangwen.

Q: What is the model number of the M19 Connector product?

A: The model number of the M19 Connector product is SWF19-3XS-TBC.

Q: Where is the M19 Connector product manufactured?

A: The M19 Connector product is manufactured in Shenzhen, China.

Q: What certifications does the M19 Connector product have?

A: The M19 Connector product is certified by CE, UL, CQC, and ROHS.

Q: What is the minimum order quantity for the M19 Connector product?

A: The minimum order quantity for the M19 Connector product is 100.

Q: What is the price of the M19 Connector product?

A: The price of the M19 Connector product is not available.

Q: What are the packaging details for the M19 Connector product?

A: The M19 Connector product is packaged in boxes of 20pcs each, with 500pcs per carton. The carton dimensions are 51*26*34cm.

Q: What is the delivery time for the M19 Connector product?

A: The delivery time for the M19 Connector product is 7-10 days.

Q: What are the payment terms for the M19 Connector product?

A: The payment terms for the M19 Connector product are T/T.
