Stable 3 Pin Waterproof Connector Socket Male Connector Electrical CE Approved

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW19-3JSZ
Minimum Order Quantity	2 pieces
Price	$2.20/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Simple Self Locking System	Name	3 Pin Waterproof Connector
Type	SW19 Self-locking Series	Application	Industrial
Industrial Electronics	Accessories	Multiple Cores	2,3,4,5,6,9,3+9 Pin Support
Gender	Male Socket
Highlight	Stable 3 Pin Waterproof Connector , 3 Pin Waterproof Connector CE , Socket Male Connector Electrical

Leave a Message

Product Description

M19 Series Self Locking System Ip67 Waterproof Industrial 3 Pin Male Socket Connector

Products Description

SW19 Self-locking series-3 Pin connector

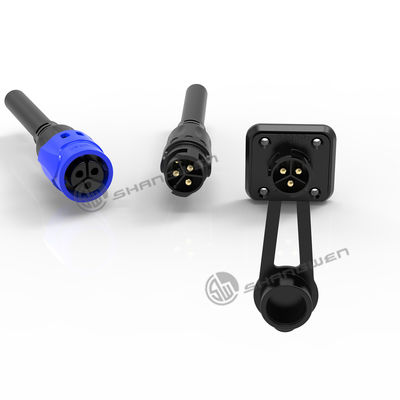

M19 series is an industrial connector, which includes male plug, female plug and male socket.

There are two locking methods:

1. Plastic screw connection, both locking design is very reliable.

2. Push-pull self-locking connection

The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.

The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.

Features

1. Use high-performance engineering plastics to effectively reduce electromagnetic and signal RF interference generated by external high current.

2. Optional shell color to meet different environmental requirements.

5. Rated current: 5A/20A/30A/50A rms.

6. The IP67 protection level is met when the product is connected.

1. Electrical parameters

Contacts NO.	3 pin
Rated current	20A
Rated voltage	300V AC
Withstand voltage	1500V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Type of terminals	Screw terminal and soldering terminal available

3. Material and environmental parameters

Shell	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ2.4mm
Protection degree	IP67
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃

4. Size reference (unit /mm)

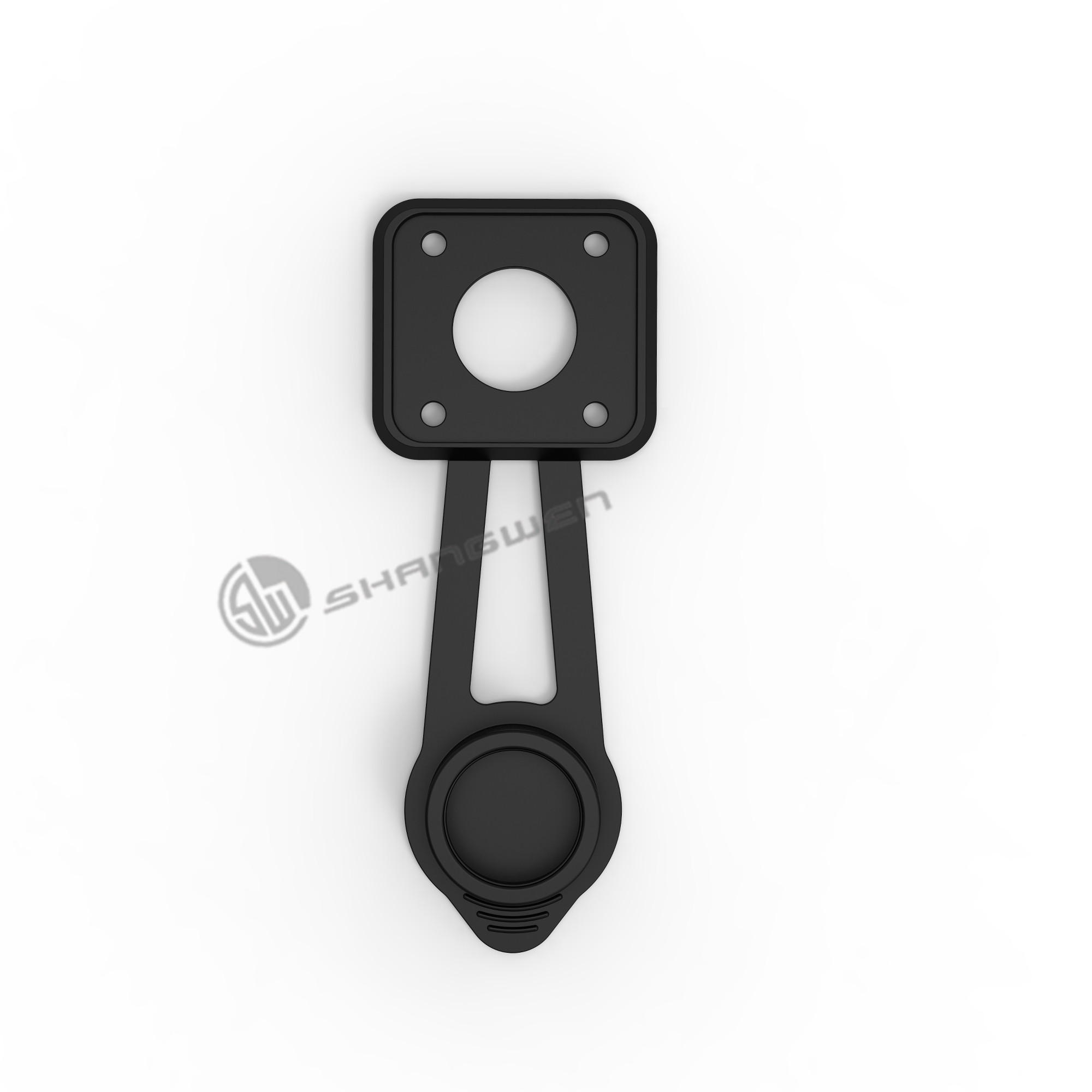

Waterproof gasket

5. Operating reference

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
