Industrial 2 Pin Connector Outdoor M19 Female Connector Electrical

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW19-12KSFT
Minimum Order Quantity	2 pieces
Price	$2.20/pieces 2-99 pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Quick, Simple Self Locking System	Name	M19 Female Connector
Type	SW19 Self-locking Series	Industrial Electronics	Accessories
Multiple Cores	2,3,4,5,6,9,3+9 Pin Support	Application	Industrial
Gender	Female
Highlight	Industrial 2 Pin Connector , 2 Pin Connector Outdoor , M19 Female Connector Electrical

Leave a Message

Product Description

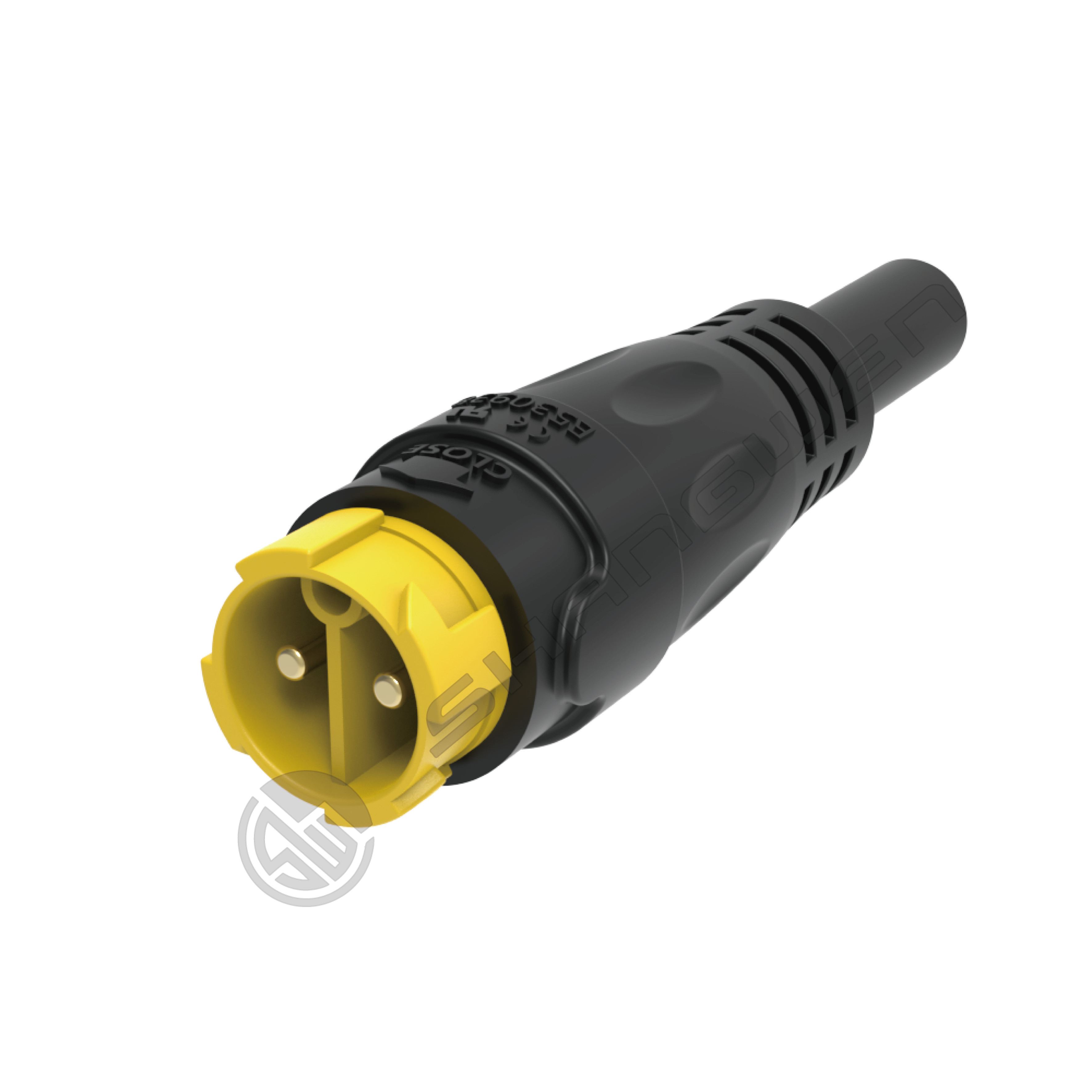

Wholesale Outdoor M19 Self-locking Series Female Plug 2 Pin Industrial Connectors

SW19 Self-locking series-2 Pin connector

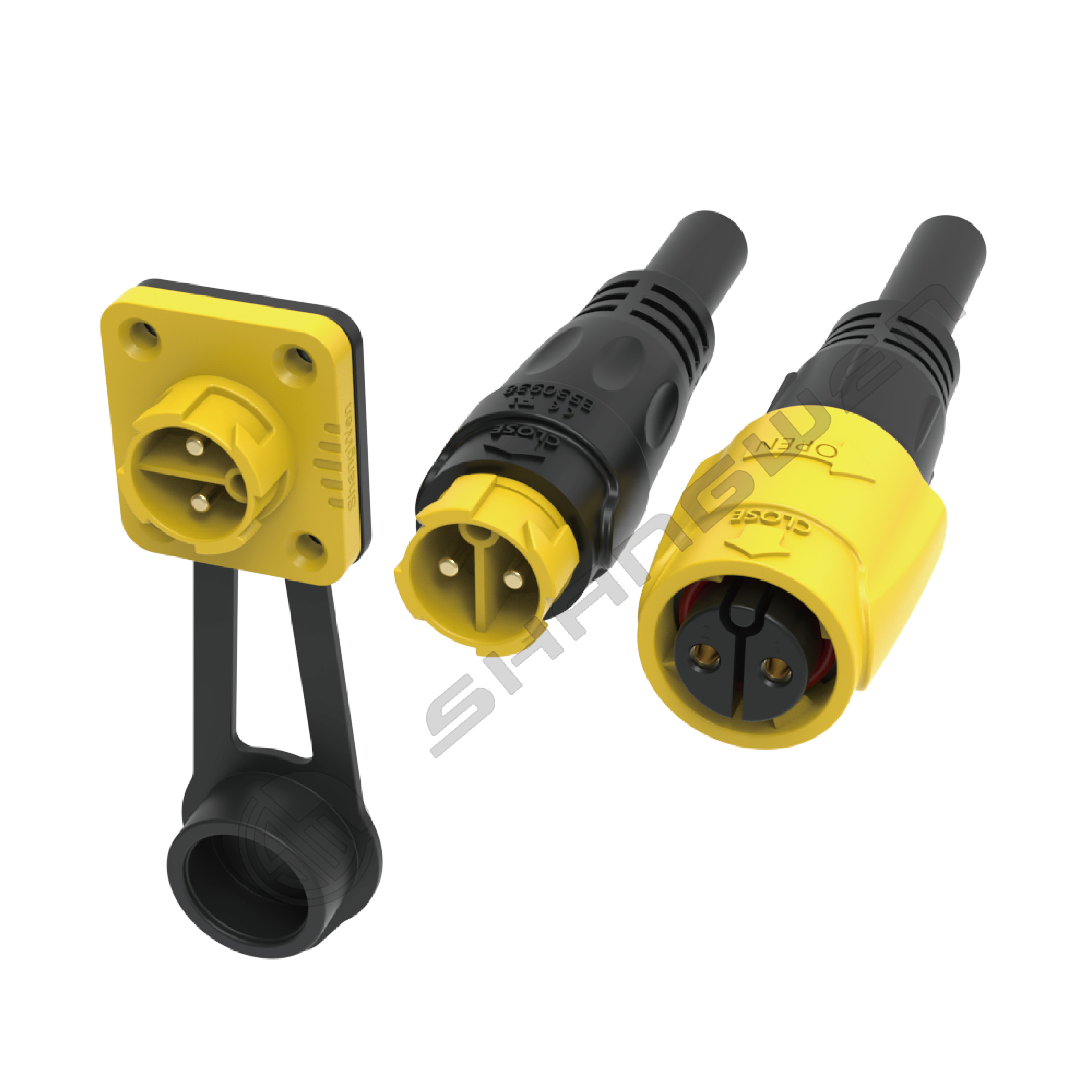

M19 series is an industrial connector, which includes male plug, female plug and male socket.

Product Description

• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

• Protect from dust and water during immersion, resistant to many oils and chemicals.

• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.

• Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation

application.

• 100% new material, high-quality parts, strictly QC standard according to international customers.

Model : SW19-2KST (2 pin female plug)

☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios

☑Connect reliably
☑Waterproof rating IP67

☑Quick, simple self locking system
☑Small size of product

1. Electrical parameters

Contacts NO.	2 pin
Rated current	20A
Rated voltage	300V AC
Withstand voltage	1500V
Insulation resistance	≥100mΩ
Contact resistance	≤10mΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	Φ4.5mm-Φ11mm
Type of terminals	Screw terminal and soldering terminal available

3. Material and environmental parameters

Shell	High performance engineering plastics
Contacts	Copper alloy
Contact diameter	Φ2.4mm
Protection degree	IP67
Flame-retardant grade	UL94-V0
Temperature range	-40℃~105℃

4. Size reference (unit /mm)

5. Operating reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
