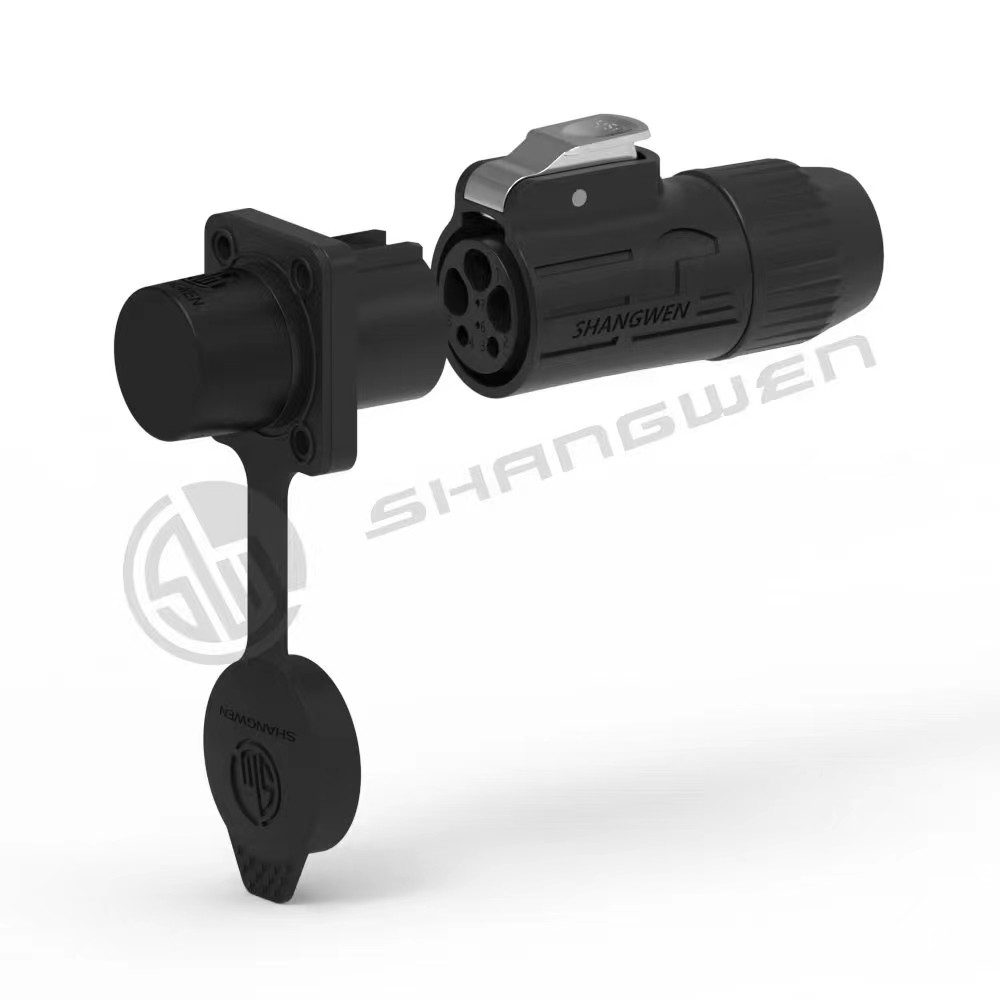

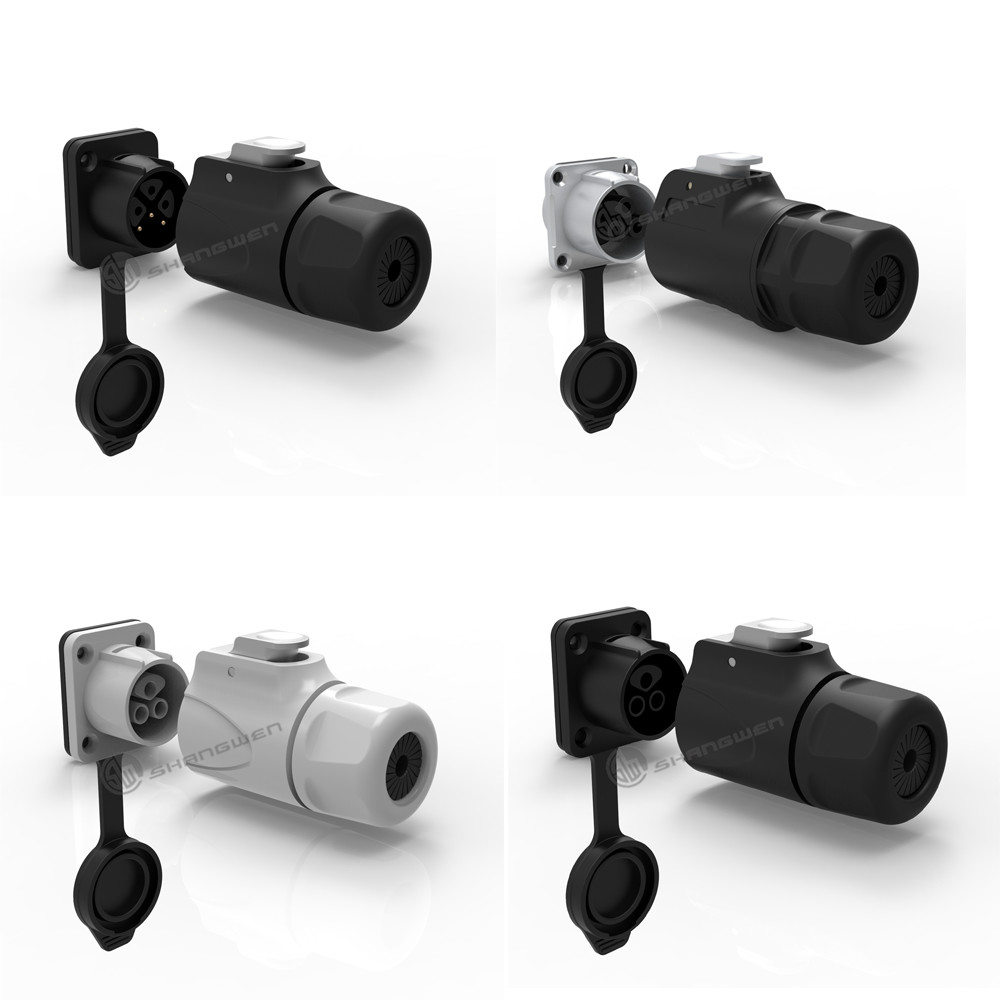

IP67 Waterproof Male Female Power Connector Precision PBT Material

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3AM-T
Minimum Order Quantity 2 pieces
Price $1.60 - $3.60/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Quick, Simple Self Locking System Name Male Female Power Connector
Gender Male Industrial Electronics Accessories
Multiple Cores 2,3,4,5,6,9,3+9 Pin Support Type LED Display Connector
Application Power
Highlight

Male Female Power Connector Precision

,

Male Female Power Connector PBT

,

IP67 Waterproof Male Female Connector

Leave a Message
Product Description



Shenzhen Export Waterproof Black Shell Female Male Plug 3 Pin 6 Pin Power Connector

Products Description
Power connector series-3 core male powercon(Metal material ,card buckle type)



• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

• Protect from dust and water during immersion, resistant to many oils and chemicals.

• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.

• Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation

application.

• 100% new material, high-quality parts, strictly QC standard according to international customers.

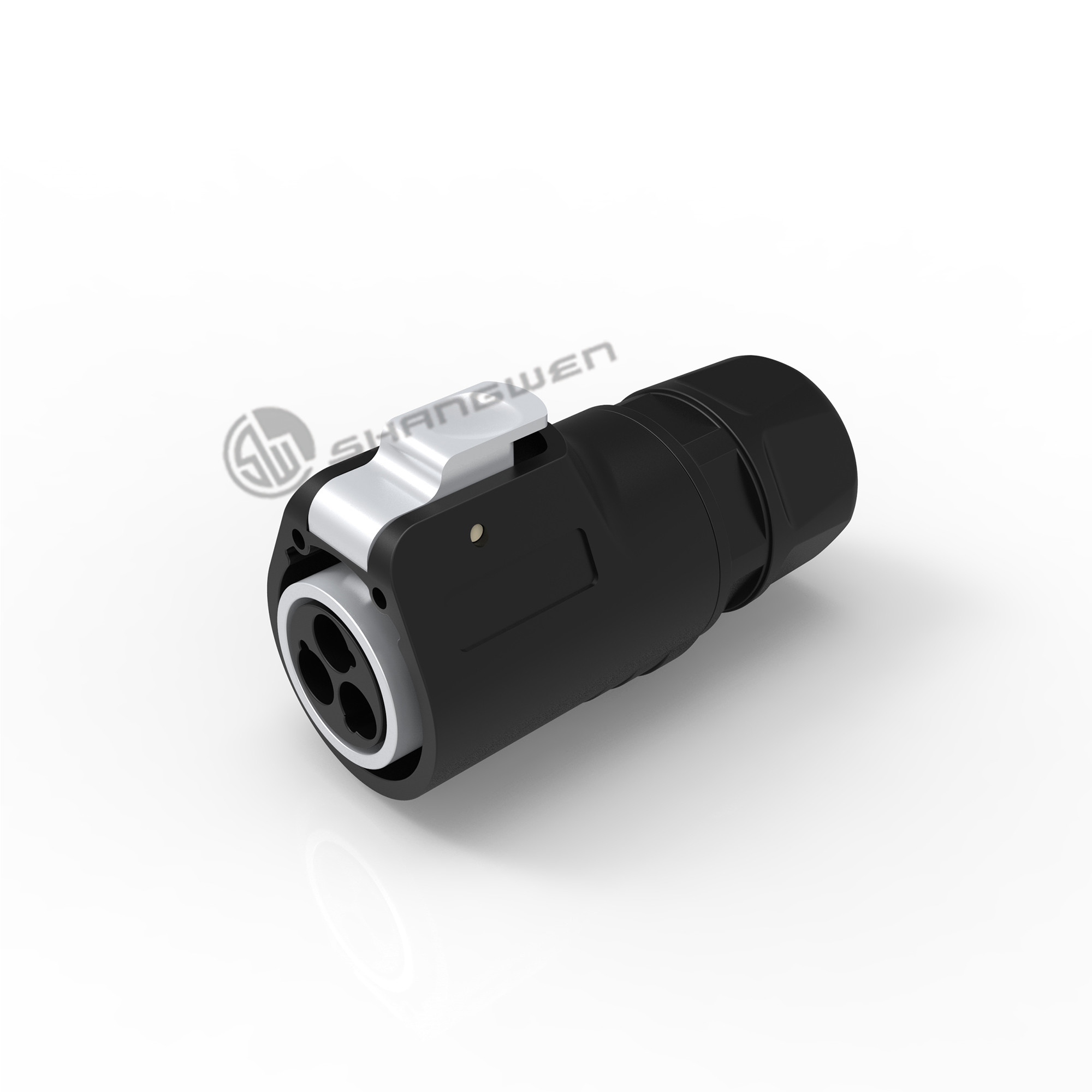

IP67 Waterproof Male Female Power Connector Precision PBT Material 0
Model : SW3AM-T ( outdoor use )


Semi-metallic style,which can meet the demands of anti-interference,high strength
and high corrosion resistance;

Quick and simple locking system, the keys are firm and do not fall off
Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
Protection level: used in outdoor scenes,

Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;
High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding protection level up to IP65/IP67

Adopt one key press button locking method,plug and play,fast and convenient;
Zinc alloy internal structure and base, with complete electromagnetic and radio frequency interference protection
The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
Multi-style inner core design to meet the needs of various industries
Precision waterproof design,with high waterproof level,no fear of wading environment;
The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0

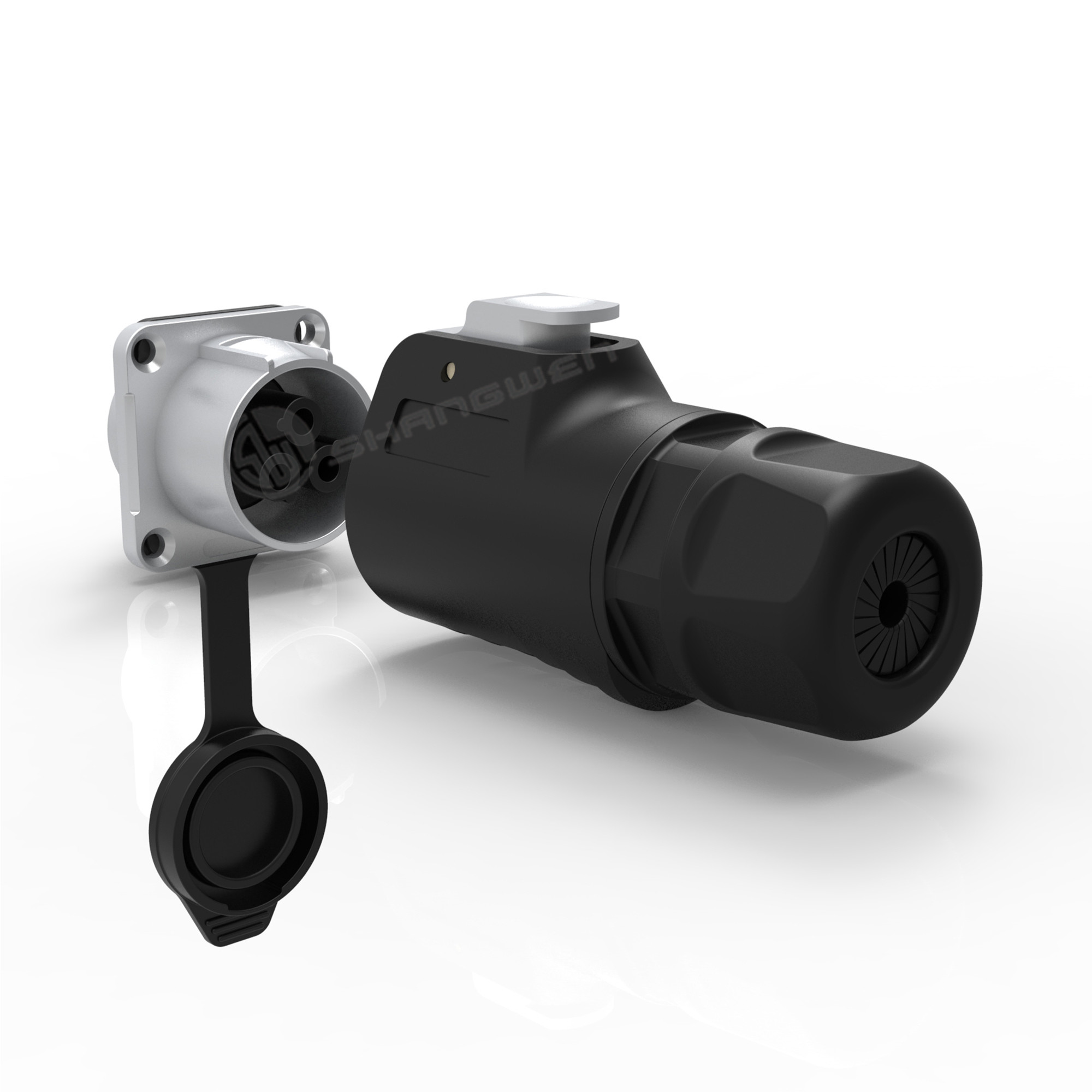

IP67 Waterproof Male Female Power Connector Precision PBT Material 1

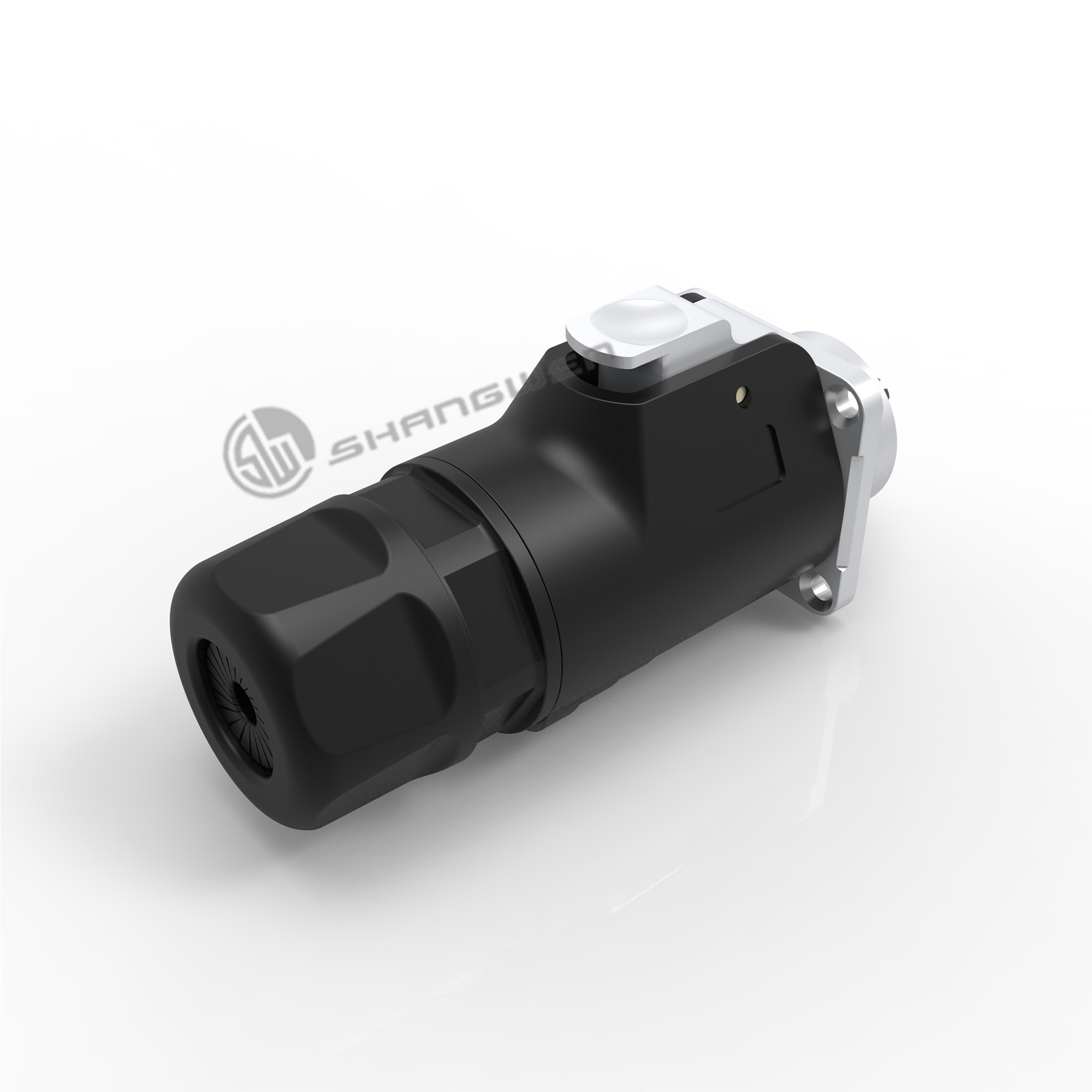

IP67 Waterproof Male Female Power Connector Precision PBT Material 2

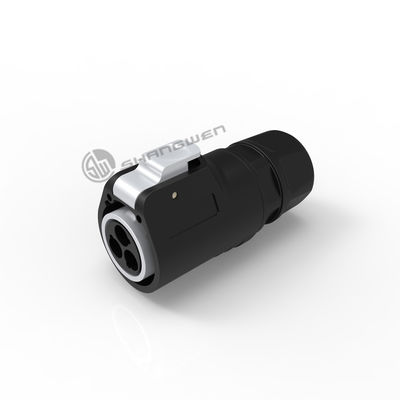

IP67 Waterproof Male Female Power Connector Precision PBT Material 3

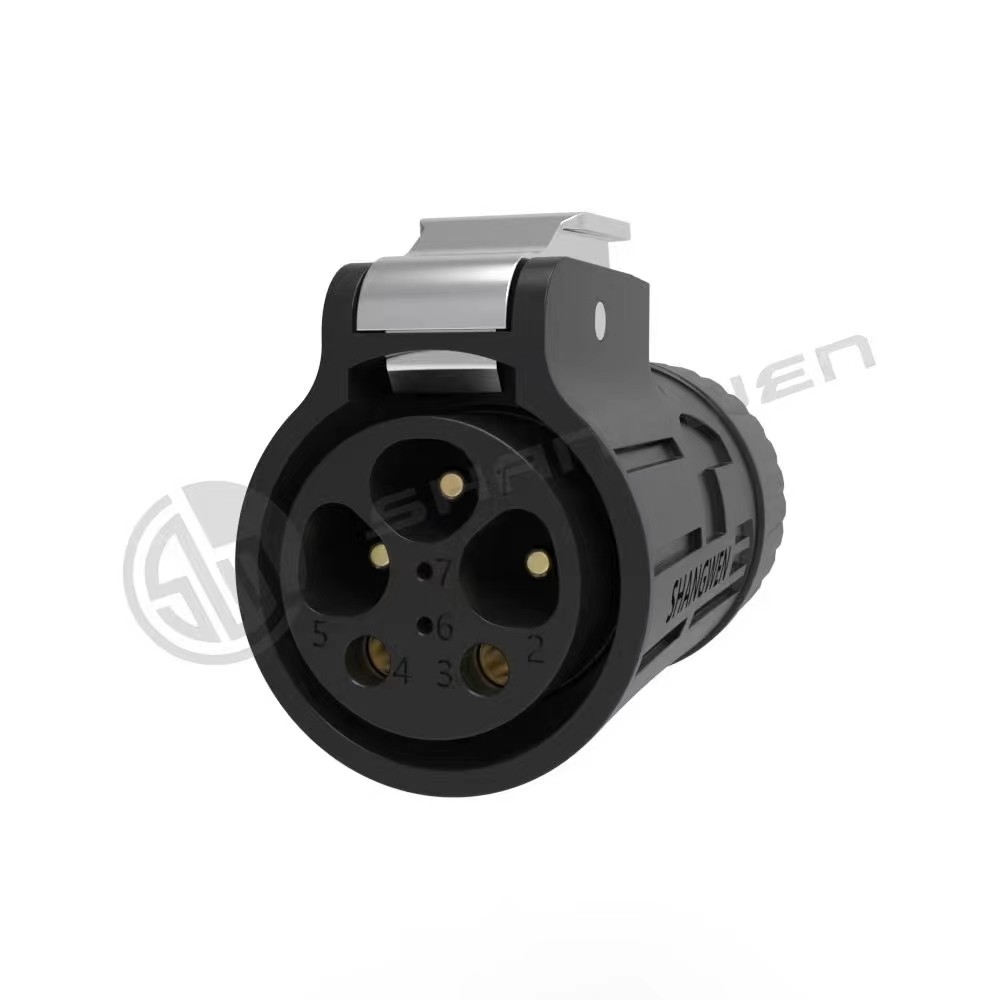

6 core power connector

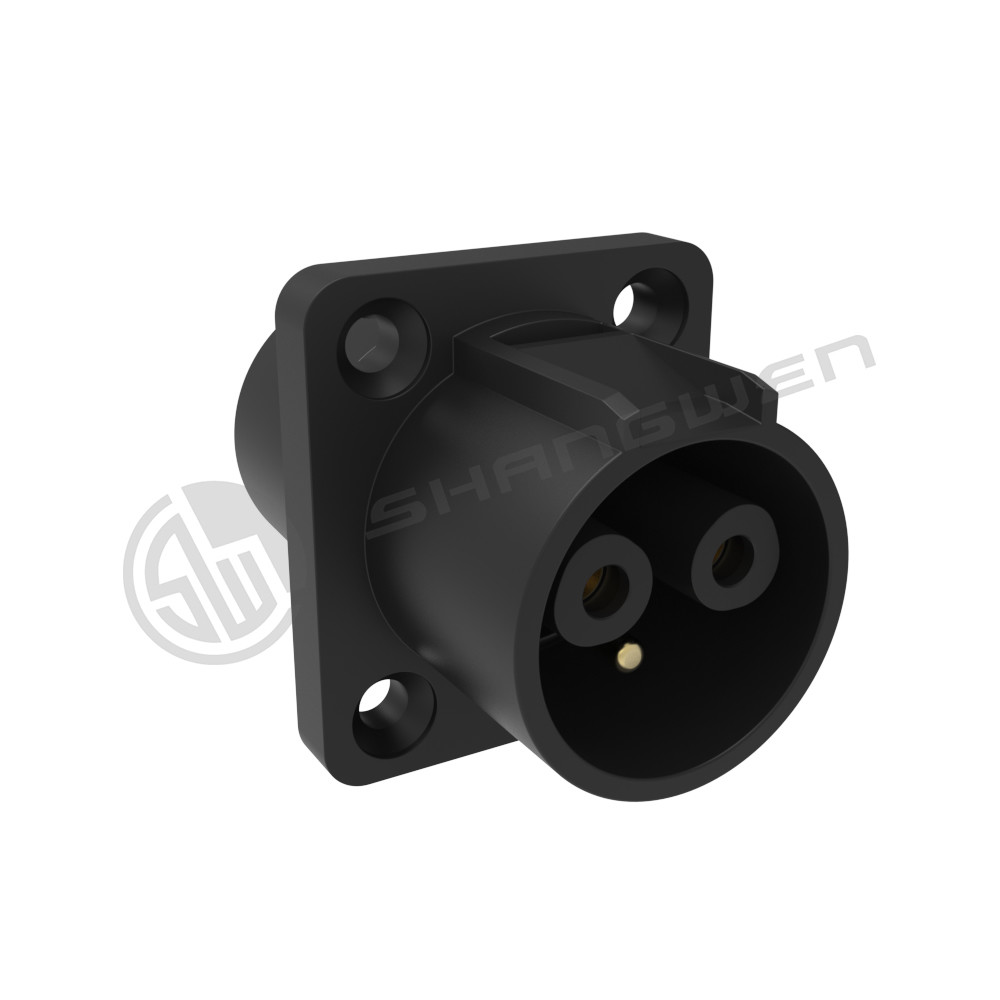

IP67 Waterproof Male Female Power Connector Precision PBT Material 4
Plastic shell 3 core connector

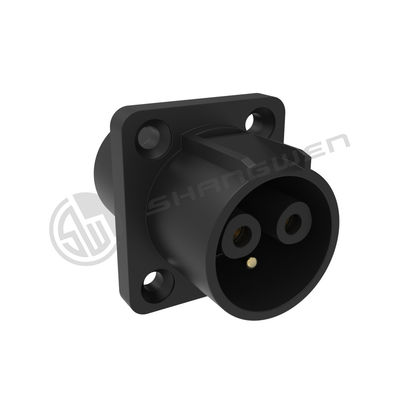

IP67 Waterproof Male Female Power Connector Precision PBT Material 5
Plastic shell 3 core connector
1. Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
>1000MΩ
2. Mechanical parameters
Service life
>1000 times
Power line
4mm²
Wire stripping length
φ9-12mm
Type of terminals
Soldering
3. Material and environmental parameters
Shell&insulated parts
PBT
Hardware metal
Zinc alloy
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4. Size reference (unit /mm)
IP67 Waterproof Male Female Power Connector Precision PBT Material 6
5. Installation reference drawing
IP67 Waterproof Male Female Power Connector Precision PBT Material 7

Application area
IP67 Waterproof Male Female Power Connector Precision PBT Material 8
Company Information
IP67 Waterproof Male Female Power Connector Precision PBT Material 9
Patent & Certification
IP67 Waterproof Male Female Power Connector Precision PBT Material 10
Exhibition activities
IP67 Waterproof Male Female Power Connector Precision PBT Material 11
Packaging reference
IP67 Waterproof Male Female Power Connector Precision PBT Material 12
Payment and logistics
IP67 Waterproof Male Female Power Connector Precision PBT Material 13
FAQ
IP67 Waterproof Male Female Power Connector Precision PBT Material 14
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6 . Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
