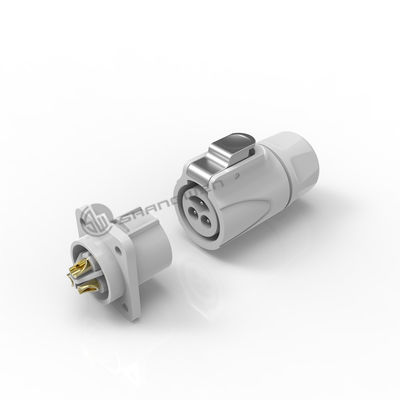

White IP67 Power Connector Plug Moisture Proof 3 Core Male Powercon
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Quick, Simple Self Locking System | Name | IP67 Power Connector Plug |
|---|---|---|---|
| Application | Power | Gender | Male |
| Industrial Electronics | Accessories | Multiple Cores | 2,3,4,5,6,9,3+9 Pin Support |
| Type | Led Display Connector | ||
| Highlight | White IP67 Power Connector,IP67 Power Connector Moisture Proof,Power Connector Plug |
||
Product Description
High Quality White Shell Moisture Proof Dustproof Waterproof Power Connector Plug
Model : SW3AJ-T ( outdoor use-white )
☑ Adopt one key press button locking method,plug and play,fast and convenient;
☑ Black and white in two colors
☑ Multi-style inner core design to meet the needs of various industries
☑ Connection mode:
☑ Precision waterproof design,with high waterproof level,no fear of wading environment;
☑ Adopt high-strength structural materials, pressure-resistant structure design,can
withstand greater vibration and shock.
☑ High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
1. Screw clamping and welding
2. Lock the cable with screws
☑ The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑ The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑ Protection level: used in outdoor scenes, protection level up to IP65/IP67
Products Description
Power connector series-3 core male powercon(card buckle type)
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.
• Protect from dust and water during immersion, resistant to many oils and chemicals.
• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.
• Ip67 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation
application.
• 100% new material, high-quality parts, strictly QC standard according to international customers.
1. Electrical parameters
|
Contacts NO.
|
Φ2.0* 3 pin
|
|
Rated current
|
20A
|
|
Rated voltage
|
250V AC
|
|
Contact resistance
|
≤4mΩ
|
|
Withstand voltage
|
2500V AC
|
|
Insulation resistance
|
＞1000MΩ
|
2. Mechanical parameters
|
Service life
|
＞1000 times
|
|
Power line
|
2.5mm²-4mm²
|
|
Wire stripping length
|
7-8mm
|
|
Type of terminals
|
Soldering
|
3. Material and environmental parameters
|
Shell&insulated parts
|
PBT
|
|
Contacts
|
Brass with gold-plated
|
|
Sealing
|
Silicone/rubber
|
|
Flame-retardant grade
|
UL94-V0
|
|
Temperature range
|
-30°C to +80°C
|
|
Temperature rise
|
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
|
|
Protection level
|
IP65
|
4. Size reference (unit /mm)
5. Installation reference drawing
