Female Powercon IP65 Waterproof 3 Core Connector Plastic Black

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SW3AJ-KB
Minimum Order Quantity 2 pieces
Price $1.20 - $2.80/pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Quick, Simple Self Locking System Type Led Display Connector
Application Power Industrial Electronics Accessories
Multiple Cores 2,3,4,5,6,9,3+9 Pin Support Name IP67 Power Connector
Gender Female
Highlight

Female Powercon IP65

,

Powercon IP65

,

3 Core Connector Plastic

Leave a Message
Product Description



Factory Sales Black Outdoor Use Plastic Waterproof Ip65 Female Powercon Connector





As the name implies, a waterproof connector is an electrical waterproof plug that solders cable wire and connectors together, but in addition to the water resistance of the waterproof plug, ordinary plugs usually include a plug and a socket, which is a major difference. The plug is usually a waterproof plug, which is what we usually call a waterproof male and female plug. They are connected together to form a complete set of waterproof plugs, also known as waterproof connectors, which are two products with different names, such as dedicated bicycles or electric bicycles. Electric scooter induction faucet bike sharing new energy product sensor



Model : SW3AJ-KB ( outdoor use-black )

☑Adopt one key press button locking method,plug and play,fast and convenient;

☑Adopt high-strength structural materials, pressure-resistant structure design,can

withstand greater vibration and shock.

☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

☑Precision waterproof design,with high waterproof level,no fear of wading environment;

☑Multi-style inner core design to meet the needs of various industries

☑Black and white in two colors

☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0

☑Protection level: used in outdoor scenes, protection level up to IP65/IP67



Products Description
Power connector series-3 core female powercon(card buckle type)
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!

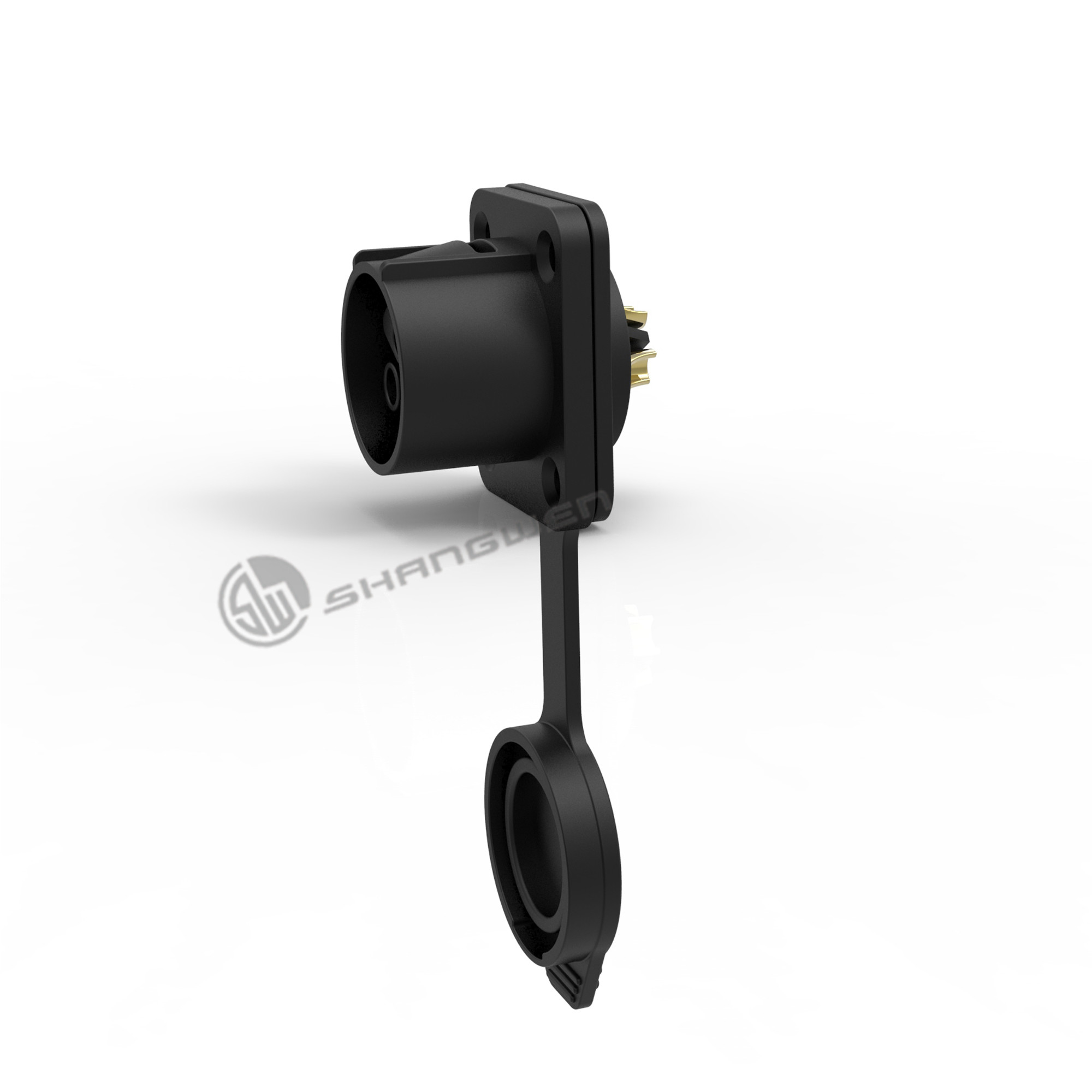

Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 0

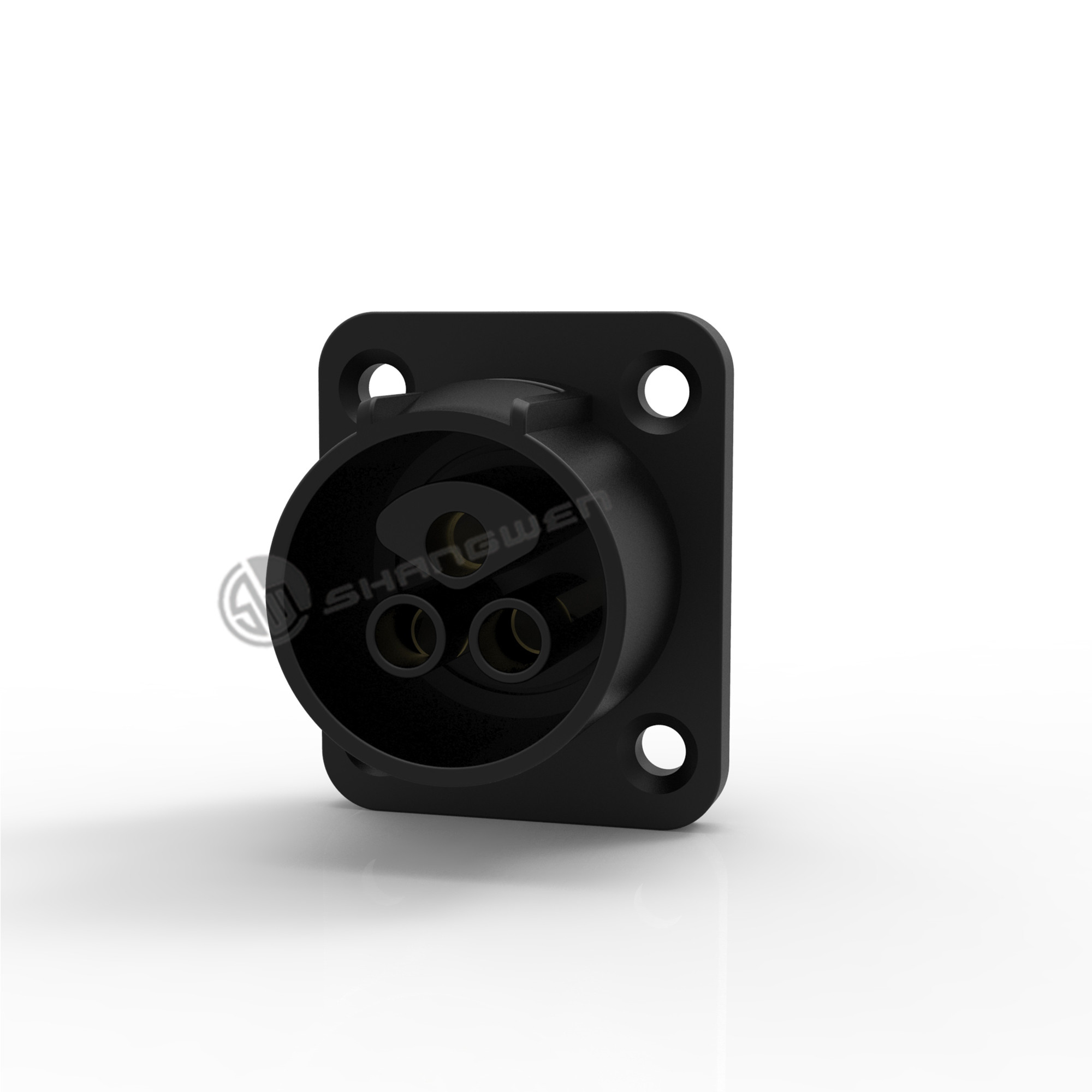

Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 1

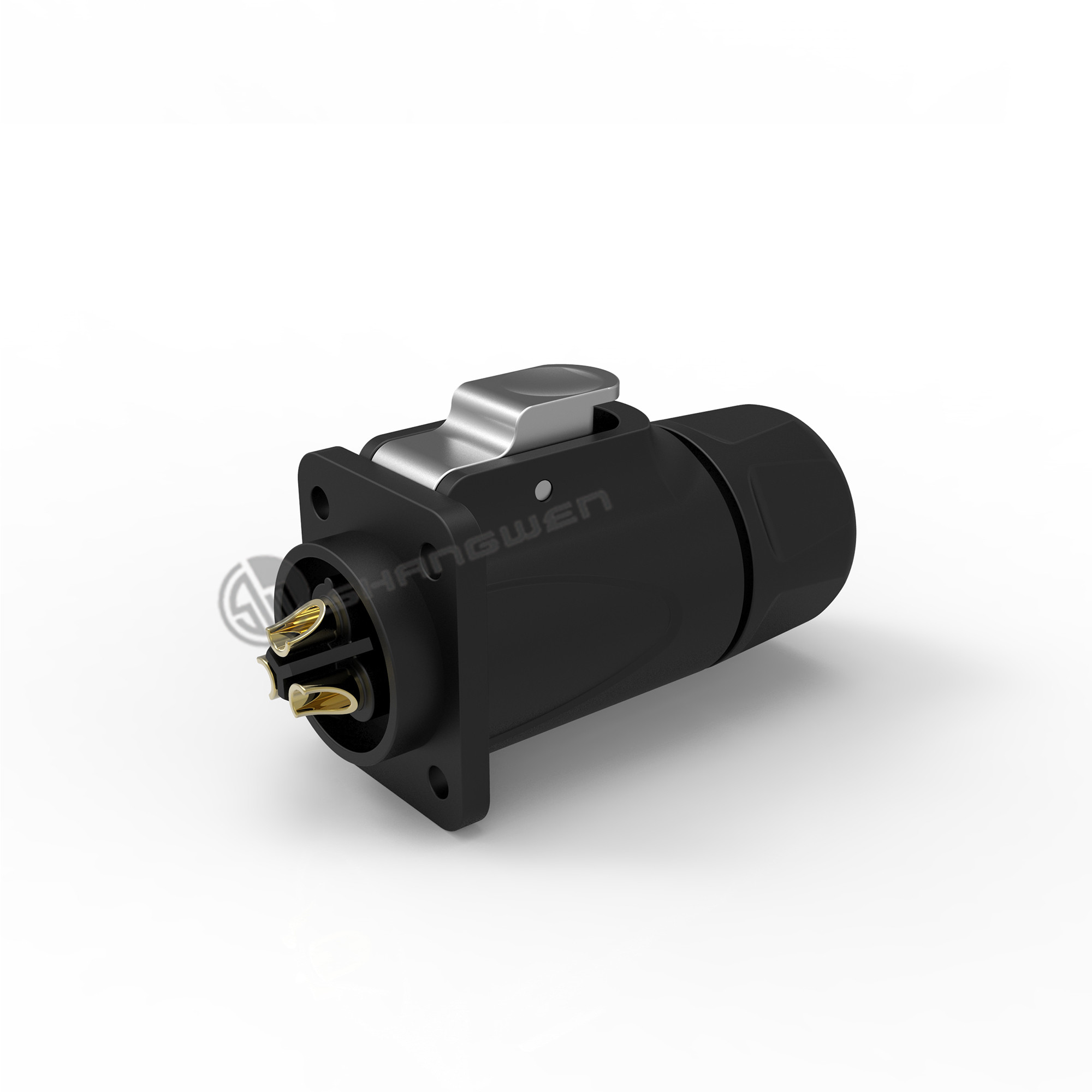

Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 2

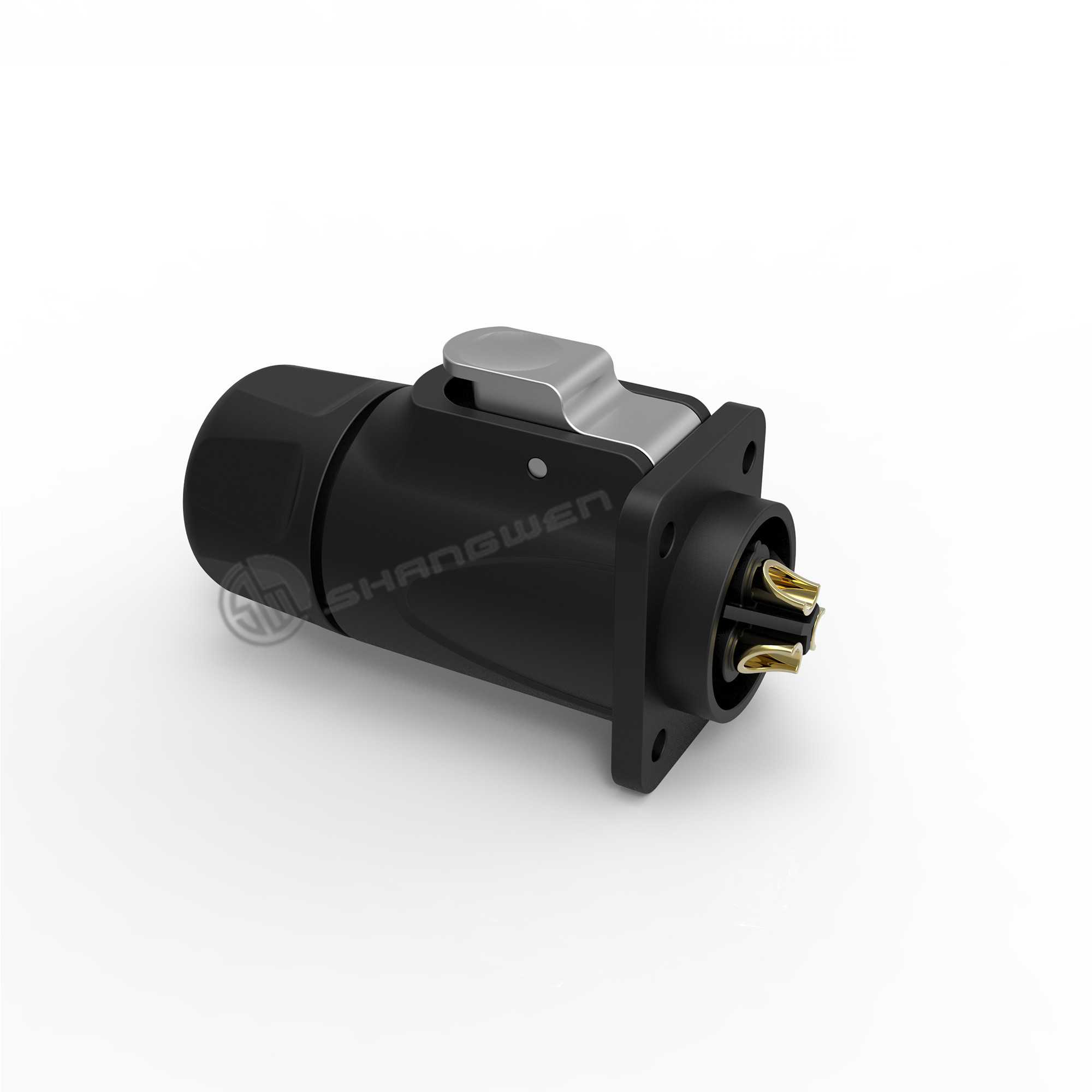

Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 3
1.Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
>1000MΩ
2.Mechanical parameters
Service life
>1000 times
Power line
2.5mm²-4mm²
Wire stripping length
7-8mm
Type of terminals
Soldering
3.Material and environmental parameters
Shell&insulated parts
PBT
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4.Size reference (unit /mm)
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 4
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 5
5.Installation reference drawing
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 6

Application area
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 7
Company Information
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 8
Patent & Certification
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 9
Exhibition activities
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 10
Packaging reference
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 11
Payment and logistics
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 12
FAQ
Female Powercon IP65 Waterproof 3 Core Connector Plastic Black 13
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
