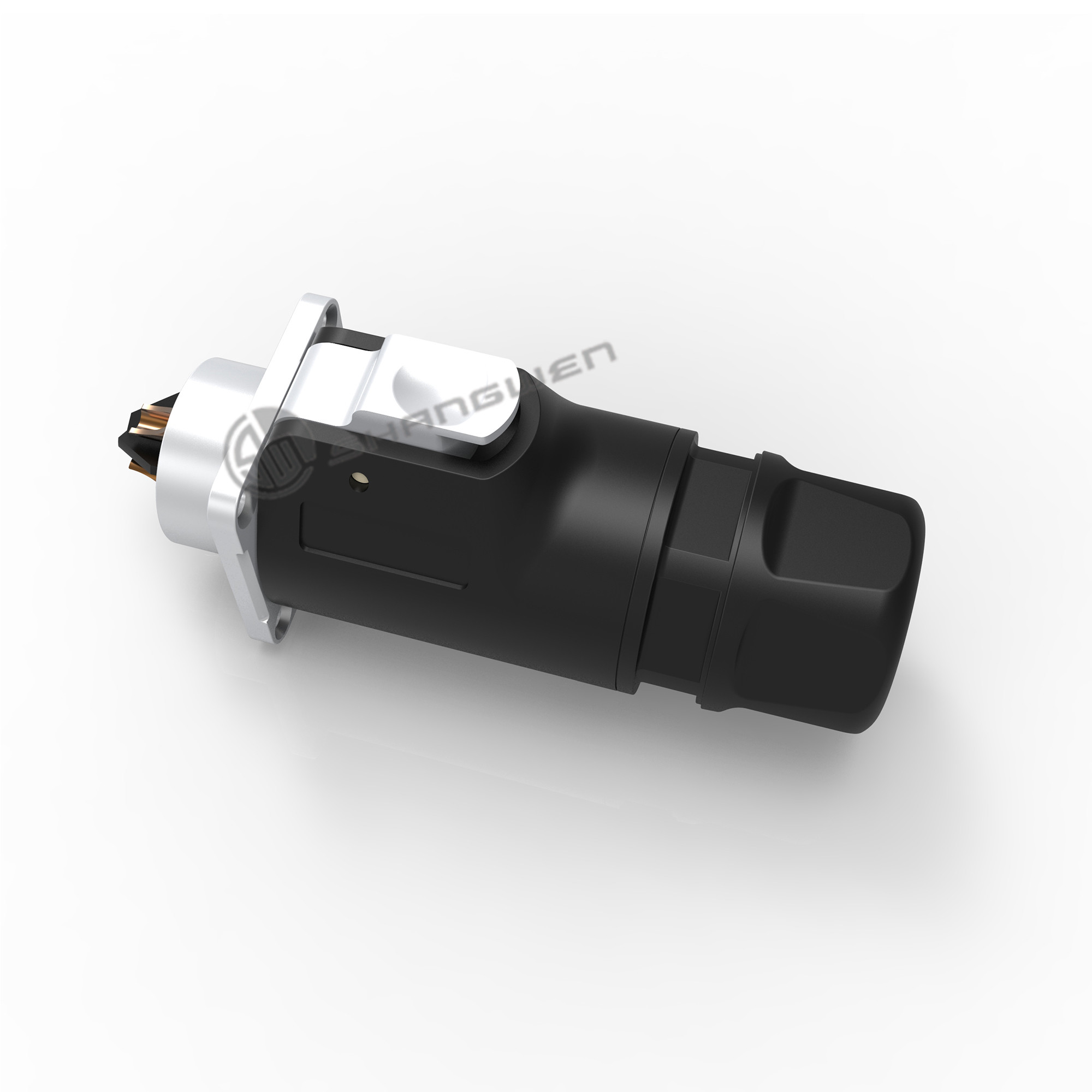

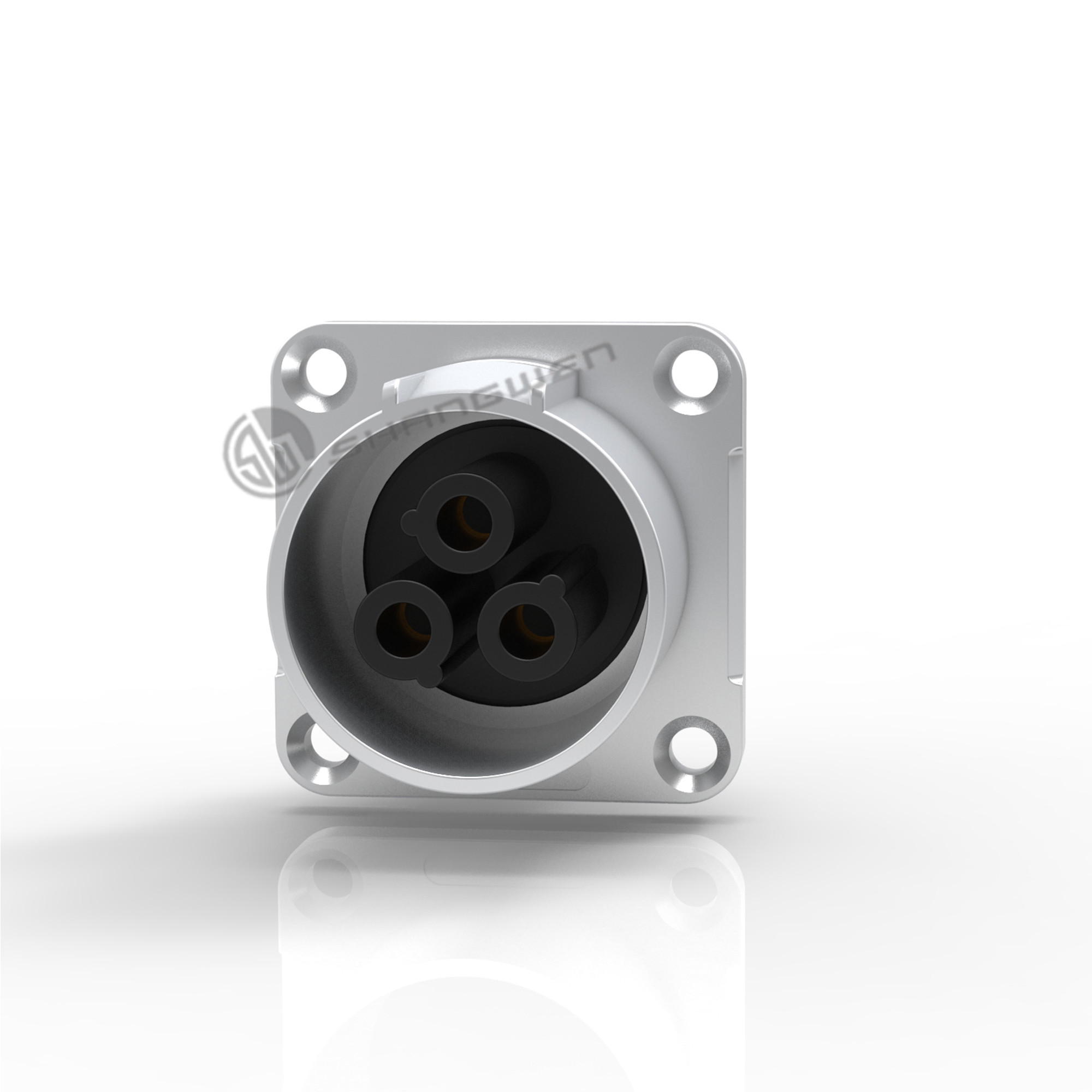

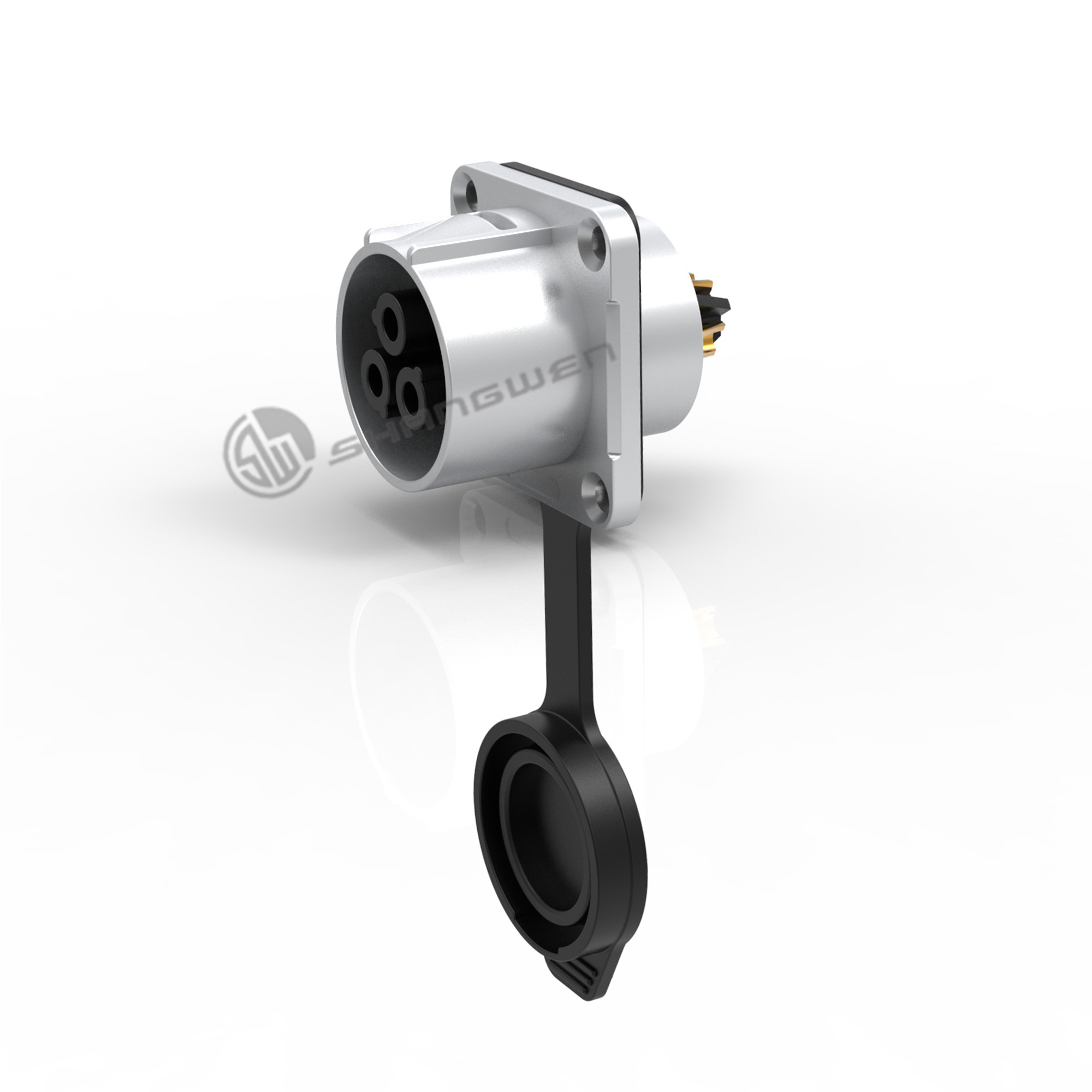

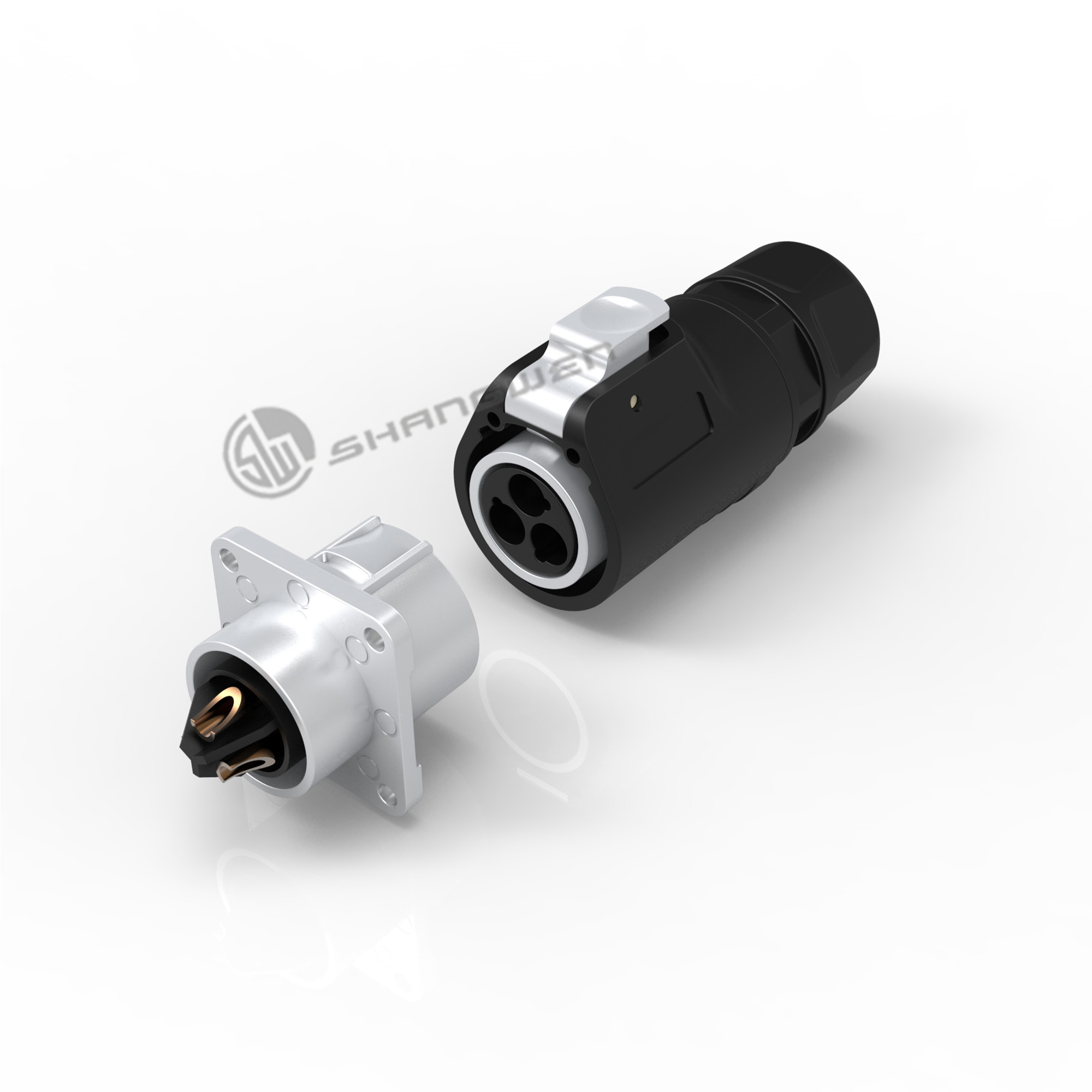

Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female

Place of Origin	Guangdong, China
Brand Name	SHANGWEN
Model Number	SW3AM-K
Minimum Order Quantity	2 pieces
Price	$1.60 - $3.60/pieces
Packaging Details	10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Quick, Simple Self Locking System	Name	Metal IP67 Power Connector
Gender	Female	Industrial Electronics	Accessories
Multiple Cores	2,3,4,5,6,9,3+9 Pin Support	Type	Led Display Connector
Application	Power
Highlight	Metal IP67 Power Connector , IP67 Power Connector Anti Interference , Waterproof 3 Pin Connector Female

Leave a Message

Product Description

Anti-interference 3 Core Metal Powercon Waterproof Female Connector For Industrial Equipment

Products Description

Power connector series-3 core female powercon(Metal material ,card buckle type)

Model : SW3AM-K ( outdoor use )

☑Semi-metallic style,which can meet the demands of anti-interference,high strength

and high corrosion resistance;

☑Adopt one key press button locking method,plug and play,fast and convenient;

☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0

☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal

transmission and electrical conductivity

☑Precision waterproof design,with high waterproof level,no fear of wading environment;

☑Connection mode:

1. Screw clamping and welding

2. Lock the cable with screws

☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;

☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

1. Electrical parameters

Contacts NO.	Φ2.0* 3 pin
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤4mΩ
Withstand voltage	2500V AC
Insulation resistance	＞1000MΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	4mm²
Wire stripping length	φ9-12mm
Type of terminals	Soldering

3. Material and environmental parameters

Shell&insulated parts	PBT
Hardware metal	Zinc alloy
Contacts	Brass with gold-plated
Sealing	Silicone/rubber
Flame-retardant grade	UL94-V0
Temperature range	-30°C to +80°C
Temperature rise	Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level	IP65

4. Size reference (unit /mm)

5. Installation reference drawing

Application area
