Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SWDU3-BDS
Minimum Order Quantity 2 pieces
Price $2.20/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Waterproof Panel Mount Connector Type Usb
Application Data Industrial Electronics Accessories
Waterproof Ip65 Shell Material Steel
Highlight

Double Port Panel Mount Connector

,

Waterproof USB 9 Pin Connector

,

9 Pin Shielded USB Connector

Leave a Message
Product Description

 Double Port 9 Pin Shielded Ip65 Waterproof Usb Type A B 3.0 Data Cable Connector For Audio



1. Electrical parameters



No. of poles 4
Current rating 1A
Voltage rating 30Vac (RMS)
Contact resistance 30m Ω max.
Performance USB version 2.0



2. Materials - Re-wireable and Panel Connectors

Shell material Steel
Shell plating Nickel
Contact material Copper Alloy
Contact plating 30 micro inch Gold
Connector body & locking ring Glass Loaded Polyester
Panel connector Nylon 6
Flammability rating UL94V-0
‘O’rings Silicone
Panel Gasket - round Silicone
Panel Gasket - square Neoprene
Mating cycles 1,000
RoHS Compliant



Features
1. Waterproof, moisture-proof, rainproof, sunscreen, anti-corrosion.
2. Flame retardant, antioxidant, environmental protection

Specification
Waterproof Connector
* Widely used in mechanical equipment, outdoor equipment, lamps, IOT equipment and other waterproof application scenarios
* Rich structure, wire to wire, Front Mount, Back Mount, PCB type and various specififications with wire
* High waterproof grade


Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 0
Model : SWDU3-BDS

Double port 9pin shielded,suitable for audio and video connection especially audio system of equipment which is computer-based connection.Standard USB format conversion connector Type A-B (B-A)

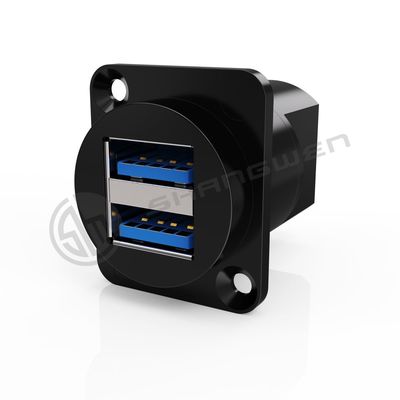

Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 1

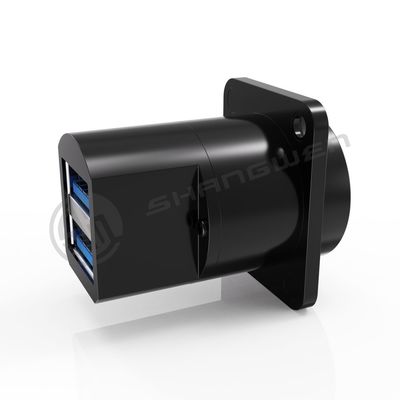

Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 2

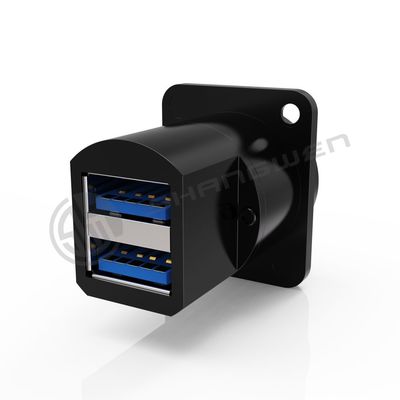

Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 3

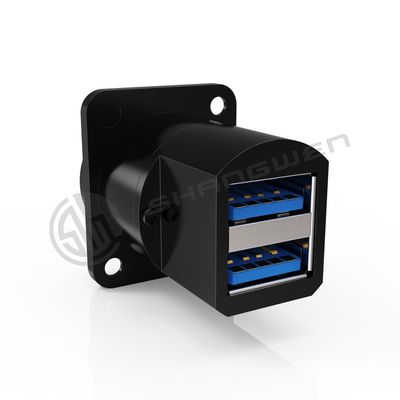

Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 4

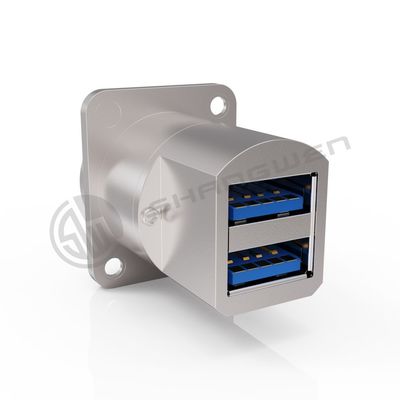

Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 5

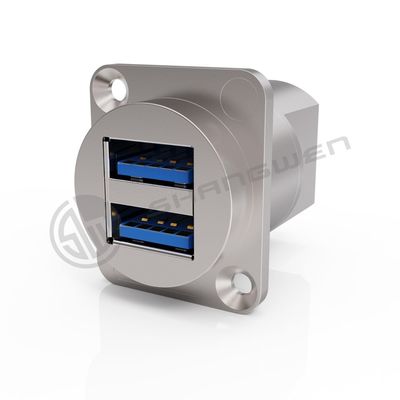

Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 6
Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 7

3.Size reference (unit /mm)
Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 8

Application area
Double Port Panel Mount Connector Waterproof 9 Pin Shielded USB Connector 9
