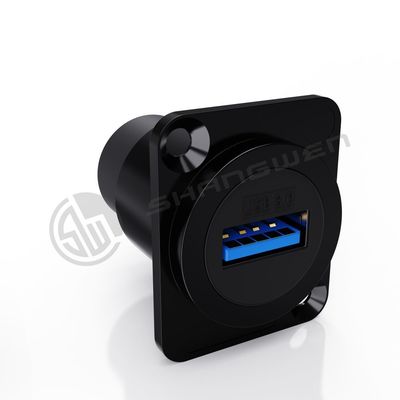

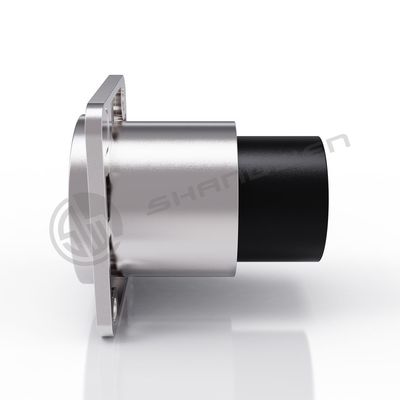

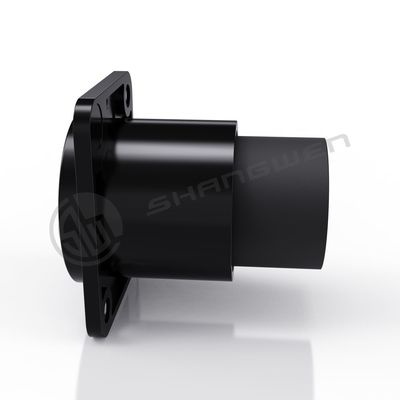

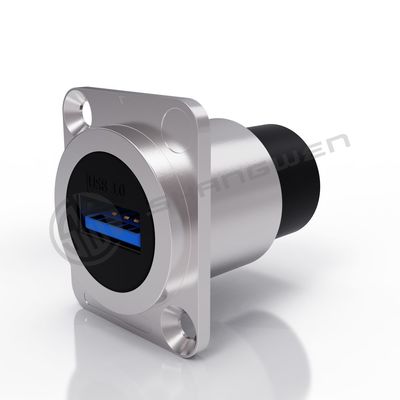

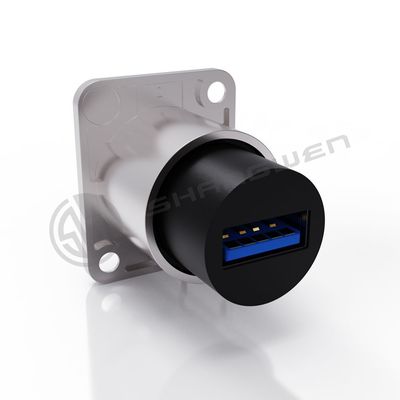

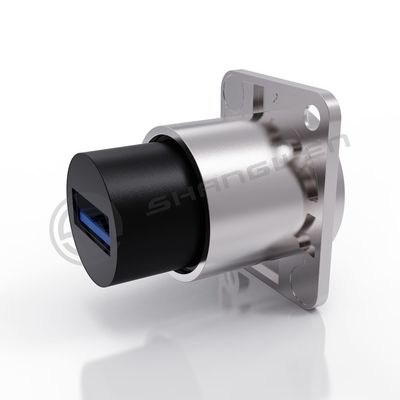

USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion

Place of Origin Guangdong, China
Brand Name SHANGWEN
Model Number SWDU3-SBS
Minimum Order Quantity 2 pieces
Price $1.80/pieces 2-99 pieces
Packaging Details 10pcs/sample bag<br>25pcs/Blister box(23cm x 23cm)<br>500pcs/carton (51cm x 26cm x 34cm)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 9 Pin USB Connector Type Usb
Application Data Industrial Electronics Accessories
Current Rating 1A
Highlight

USB Panel Mount Connector

,

Panel Mount Connector Ip65

,

Waterproof 9 Pin USB Connector

Leave a Message
Product Description

Ip65 Waterproof Usb Format Conversion Data Cable Connectors Wholesale 9 Pin Connector




1. Electrical parameters
No. of poles
4
Current rating
1A
Voltage rating
30Vac (RMS)
Contact resistance
30m Ω max.
Performance
 USB version 2.0
2 Materials - Re-wireable and Panel Connectors
Shell material
Steel
Shell plating
Nickel
Contact material
Copper Alloy
Contact plating
30 micro inch Gold
Connector body & locking ring
Glass Loaded Polyester
 Panel connector
 Nylon 6
 Flammability rating
 UL94V-0
‘O’rings
 Silicone
 Panel Gasket - round
 Silicone
Panel Gasket - square
 Neoprene
Mating cycles
 1,000
 RoHS
 Compliant
3. Size reference (unit /mm)
USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 0

Application area



Shangwen electronics has excellent engineering creation team, market operation team, modem manufacturing workshop, strict quality supervision system and fast storage and logistics facilities. Over the years, the products have been widely used in LED display, lighting equipment, engineering machinery equipment and etc.We will continue to develop into a world-renowned brand in the connector industry.





USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 1
Company Information
USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 2
Patent & Certification
USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 3
Exhibition activities
USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 4
Packaging reference
USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 5
Payment and logistics
USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 6
FAQ
USB Panel Mount Connector Ip65 Waterproof 9 Pin USB Connector for Format Conversion 7
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
